Test D: Steering System Drift/Pull/Wander
Test D: Steering System Drift/Pull/Wander

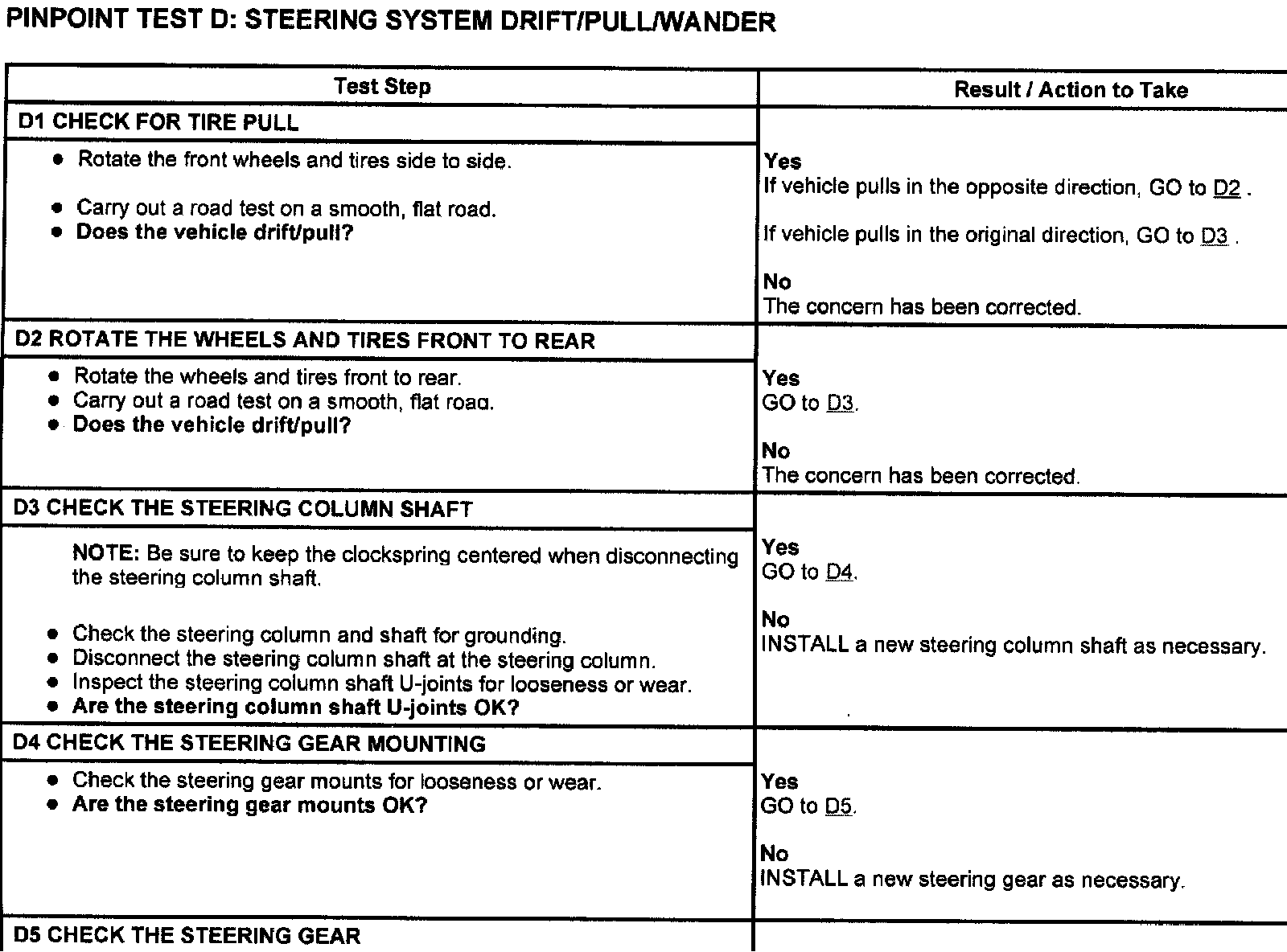

Pinpoint Test D:
Steering
System Drift/Pull/Wander
This pinpoint test is intended to diagnose the following:
^
Steering Gear
^
Intermediate shaft
^
Steering gear mounts
^
Suspension
components
D1-D5

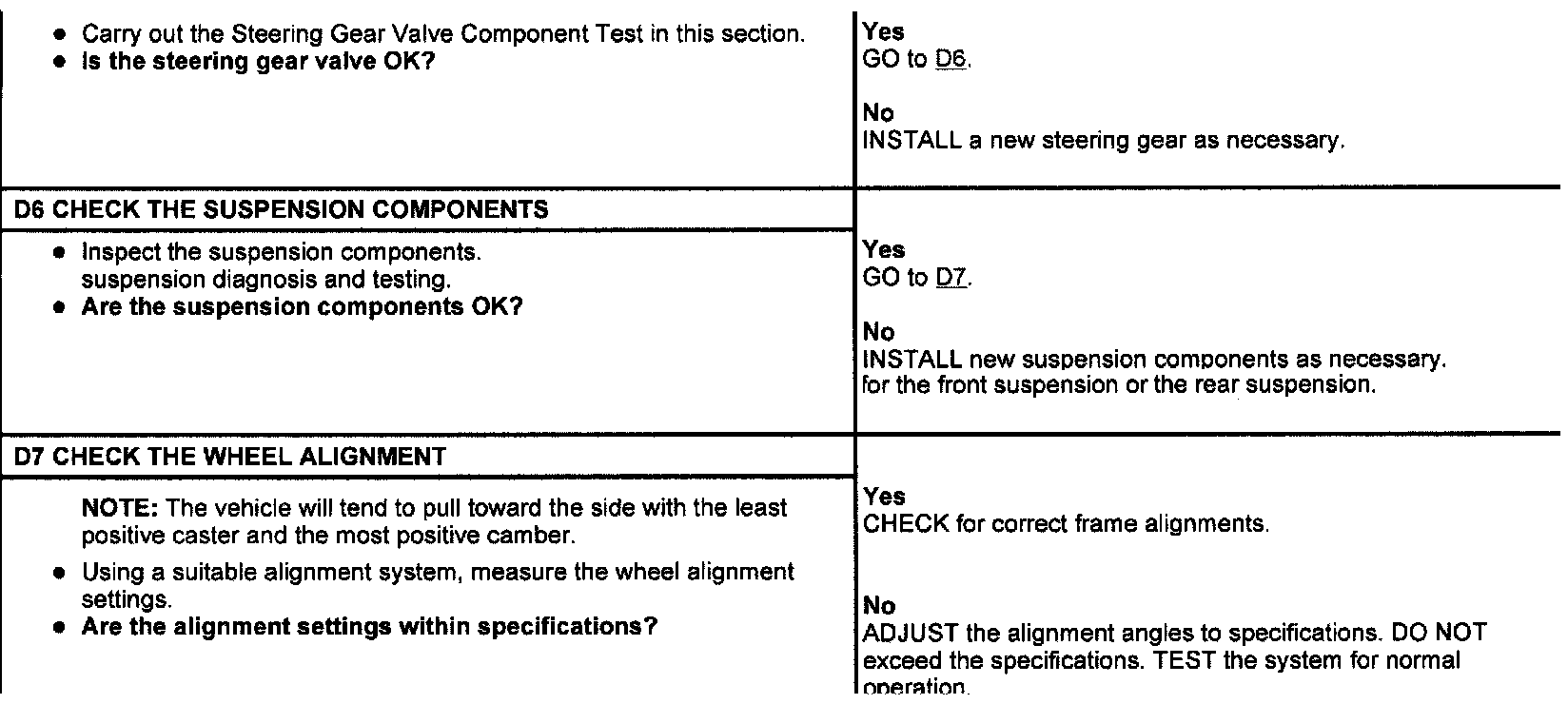

D5-D7
