Battery Cable: Service and Repair

BATTERY CABLES

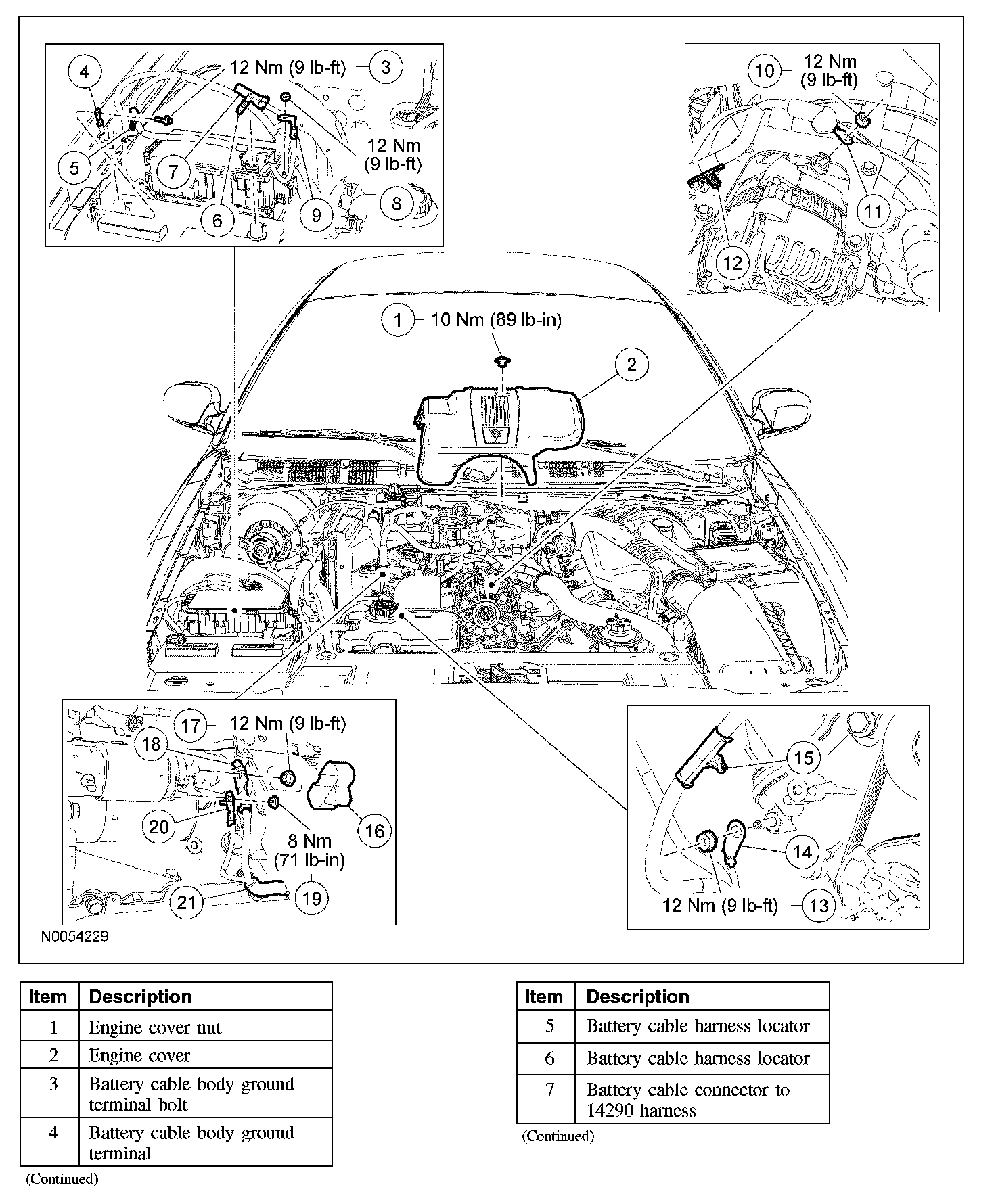

Part 1:

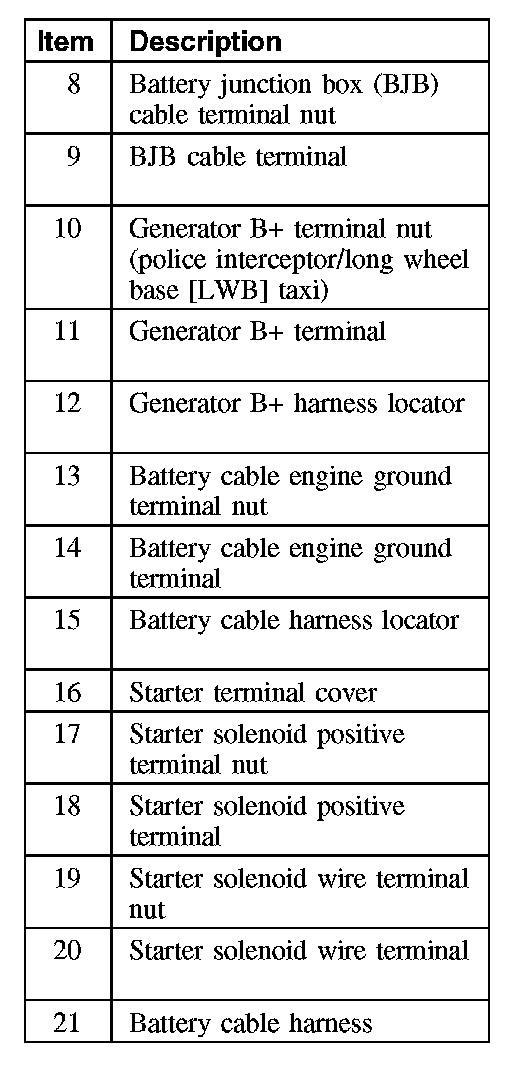

Part 2:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery.
3. Remove the nut and position the engine cover aside.
- To install, tighten to 10 Nm (89 lb-in).

4. Remove the bolt and position the battery cable body ground terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

5. Remove the 2 harness locators from the fenderwell.
6. Remove the nut and position the battery junction box (BJB) terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

7. Remove the nut and position the generator B+ terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

8. Remove the harness locator from the generator bracket.
9. Remove the nut and position the battery cable engine ground terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

10. Remove the battery cable harness locator from the valve cover stud bolt.
11. Remove the starter terminal cover.
12. Remove the nut and position the starter solenoid positive terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

13. Remove the nut and position the starter solenoid wire terminal aside.
- To install, tighten to 8 Nm (71 lb-in).

14. Remove the battery cable harness.
15. To install, reverse the removal procedure.
