Turn Signal Switch: Service and Repair

Steering Column Multifunction Switch

Removal and Installation

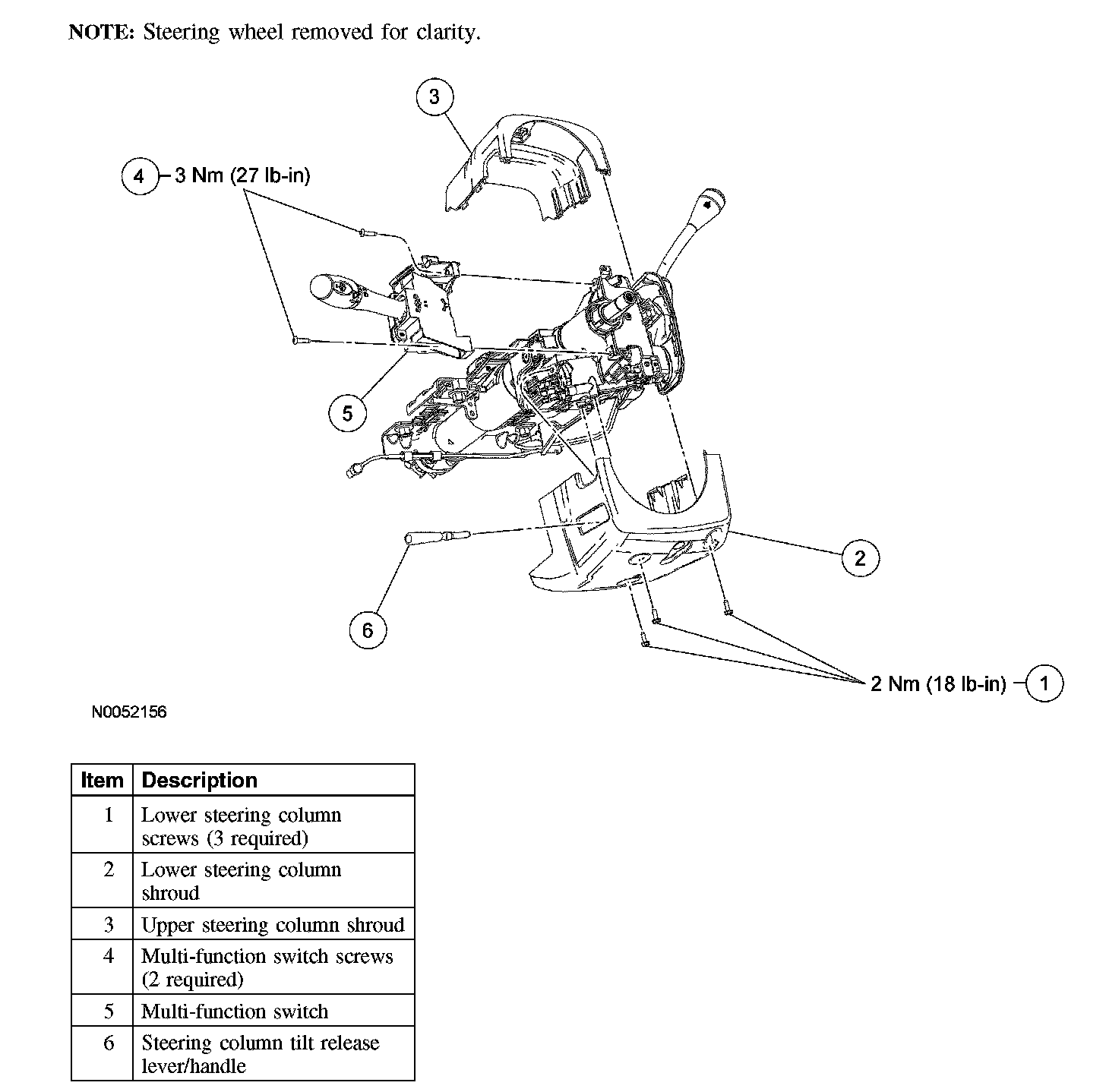

NOTE: Steering wheel removed for clarity.





1. Disconnect the battery ground cable.
2. Remove the tilt release lever/handle.

3. NOTE: Release the upper steering column shroud by pressing the sides inward.

Remove the 3 screws and the upper and lower steering column shrouds.
^ To install, tighten to 2 Nm (18 lb-in).
4. Disconnect the 3 multi-function switch electrical connectors.
5. Remove the 2 screws and the multi-function switch.
^ To install, tighten to 3 Nm (27 lb-in).
6. To install, reverse the removal procedure.
