Oil Pressure Sender: Service and Repair

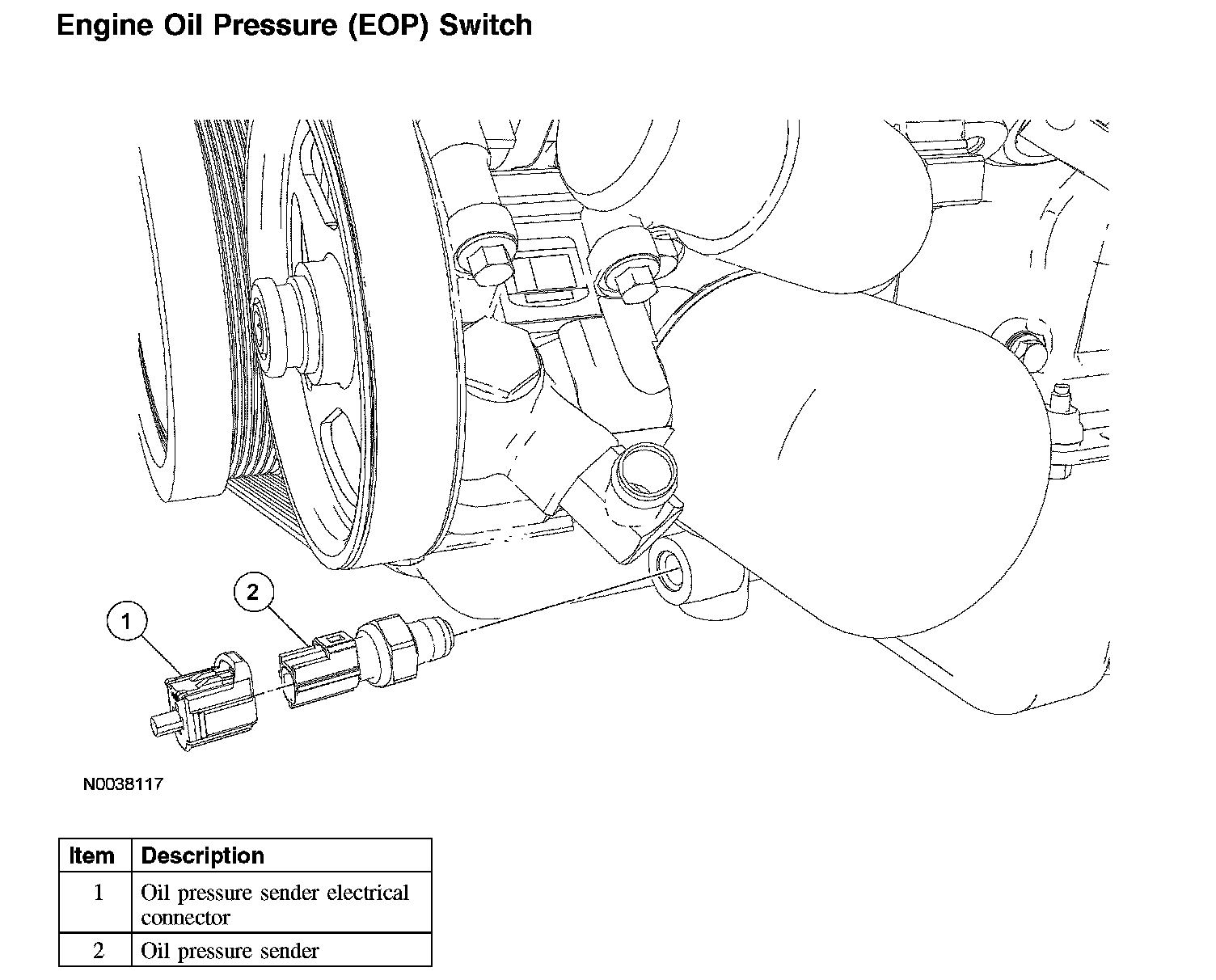

Engine Oil Pressure (EOP) Switch

Engine Oil Pressure (EOP) Switch:

Removal and Installation

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Disconnect the oil pressure sensor electrical connector and remove the oil pressure sensor.
^ To install, tighten to 14 Nm (10 ft. lbs.), then tighten an additional 180 degrees.

4. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

To install, reverse the removal procedure. If equipped with fire suppression system, repower the system.
