Accelerator Pedal and Bracket

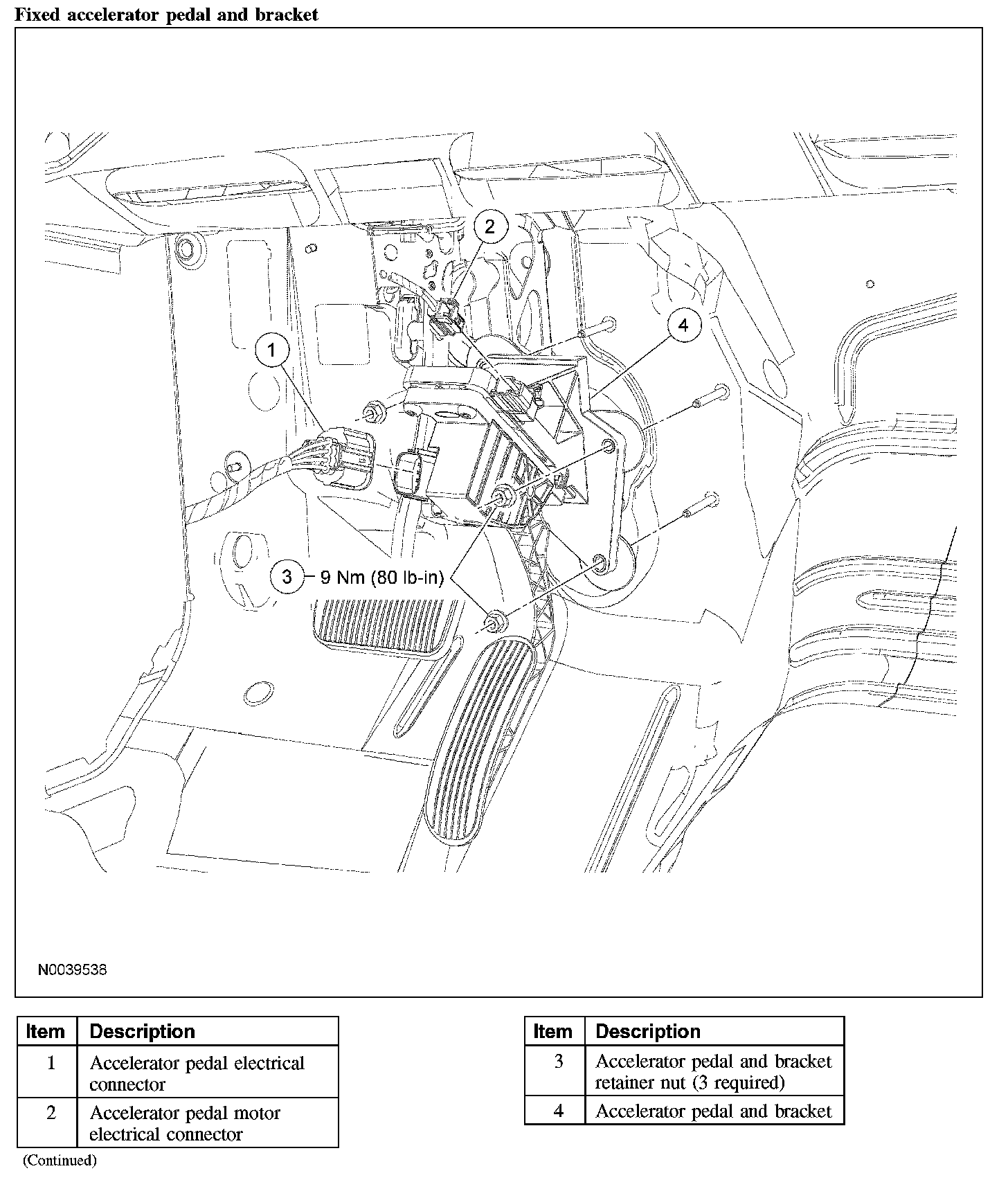

ACCELERATOR PEDAL AND BRACKETFixed Accelerator Pedal And Bracket:
Adjustable Accelerator Pedal And Bracket:
Removal
All vehicles
1. Disconnect the battery ground cable.
2. Disconnect the accelerator pedal sensor electrical connector.
3. NOTE: This electrical connector is present on all vehicles including fixed pedal and bracket assemblies. The electrical connector on the fixed pedal assemblies are non-working and plugged into an empty receptacle connector.
Disconnect the accelerator pedal motor electrical connector.
Vehicles with adjustable accelerator pedal and bracket
4. Disconnect the accelerator pedal motor drive cable connector.
All vehicles
5. Remove the 3 accelerator pedal and bracket retainer nuts.
6. Remove the accelerator pedal and bracket assembly.
Installation
All vehicles
1. Install the accelerator pedal and bracket assembly.
2. Install the 3 accelerator pedal and bracket retainer nuts. Tighten to 9 Nm (80 lb-in).
Vehicles with adjustable accelerator pedal and bracket
3. Connect the accelerator pedal motor drive cable connector.

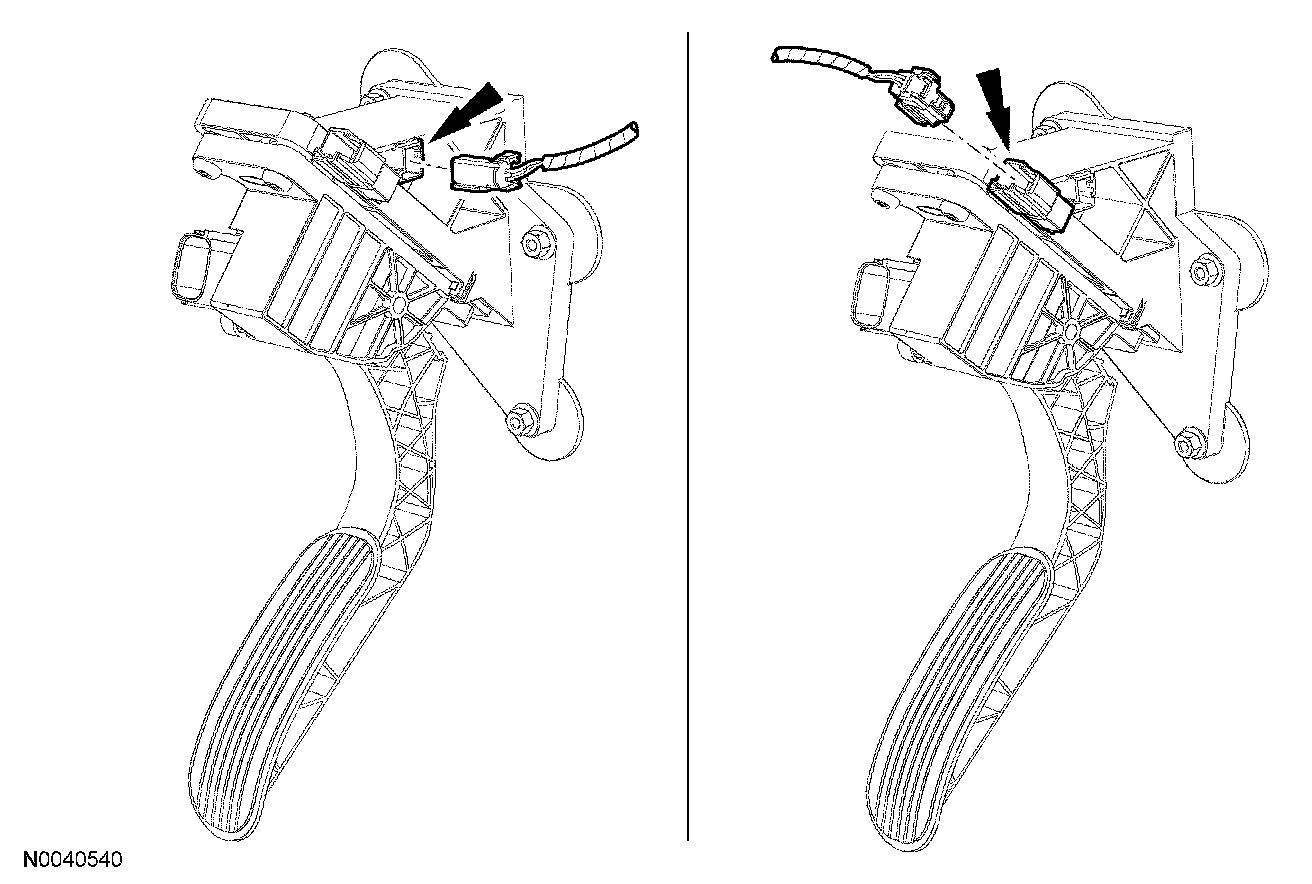

4. NOTE: On vehicles with a fixed pedal and bracket assemblies, the service unit may differ from the original unit. The non-working accelerator pedal motor electrical connector may be plugged into either of these locations shown depending on the length of the harness.
Connect the accelerator pedal motor electrical connector.
5. Connect the accelerator pedal sensor electrical connector.
6. Connect the battery ground cable.
Vehicles with adjustable accelerator pedal and bracket
7. Index the adjustable accelerator pedal and bracket assemblies.
