Home >> Mercury >> 2007 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Module Communications Network

Module Communications Network

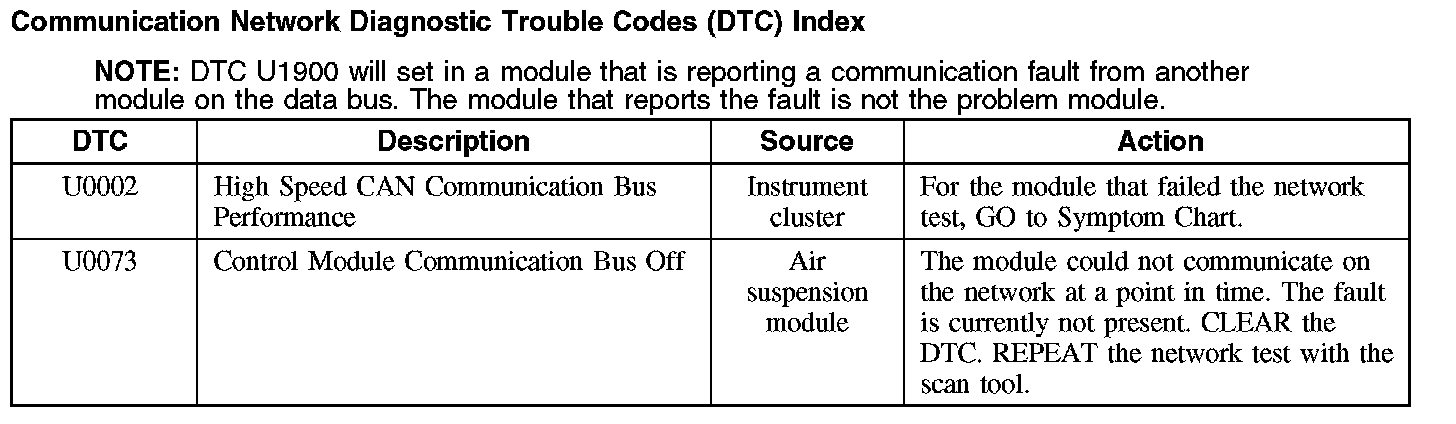

U0002-U0073:

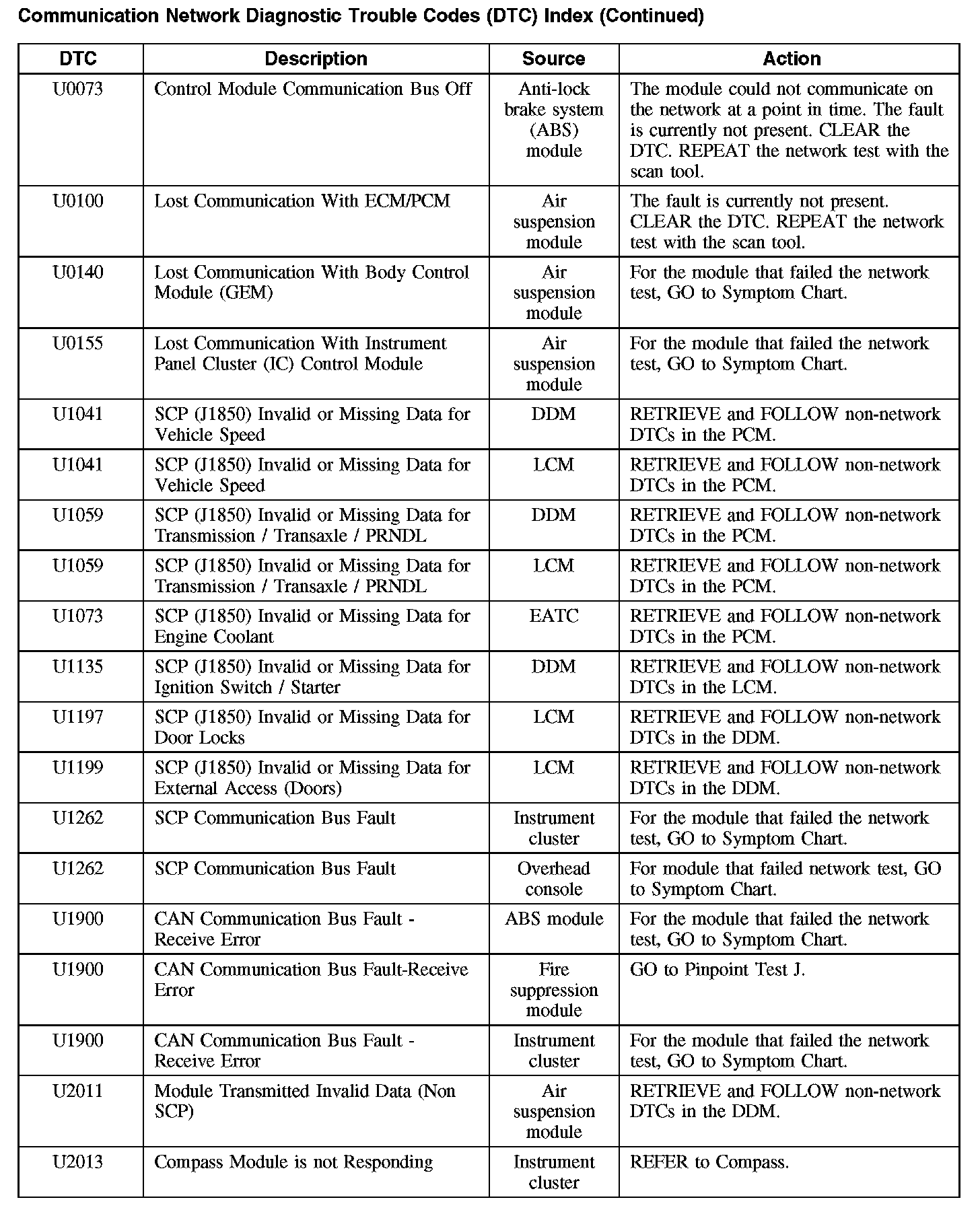

U0073-U2013:

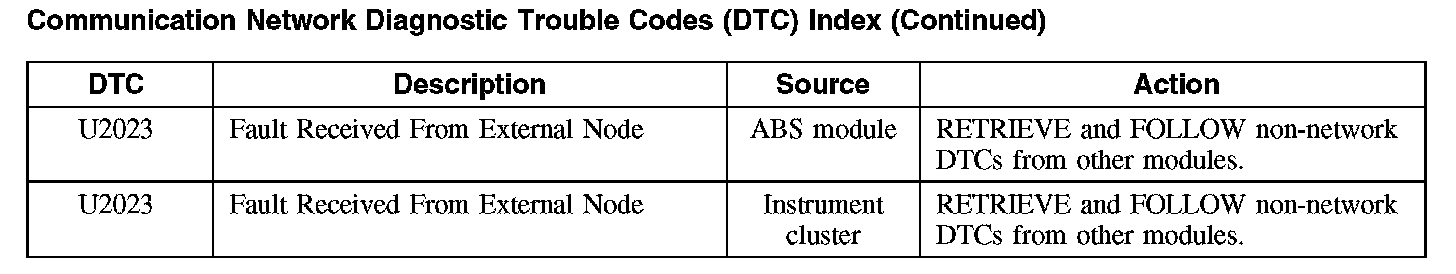

U2023:
