Turn Signals: Service and Repair

SIDE TURN SIGNAL LAMP

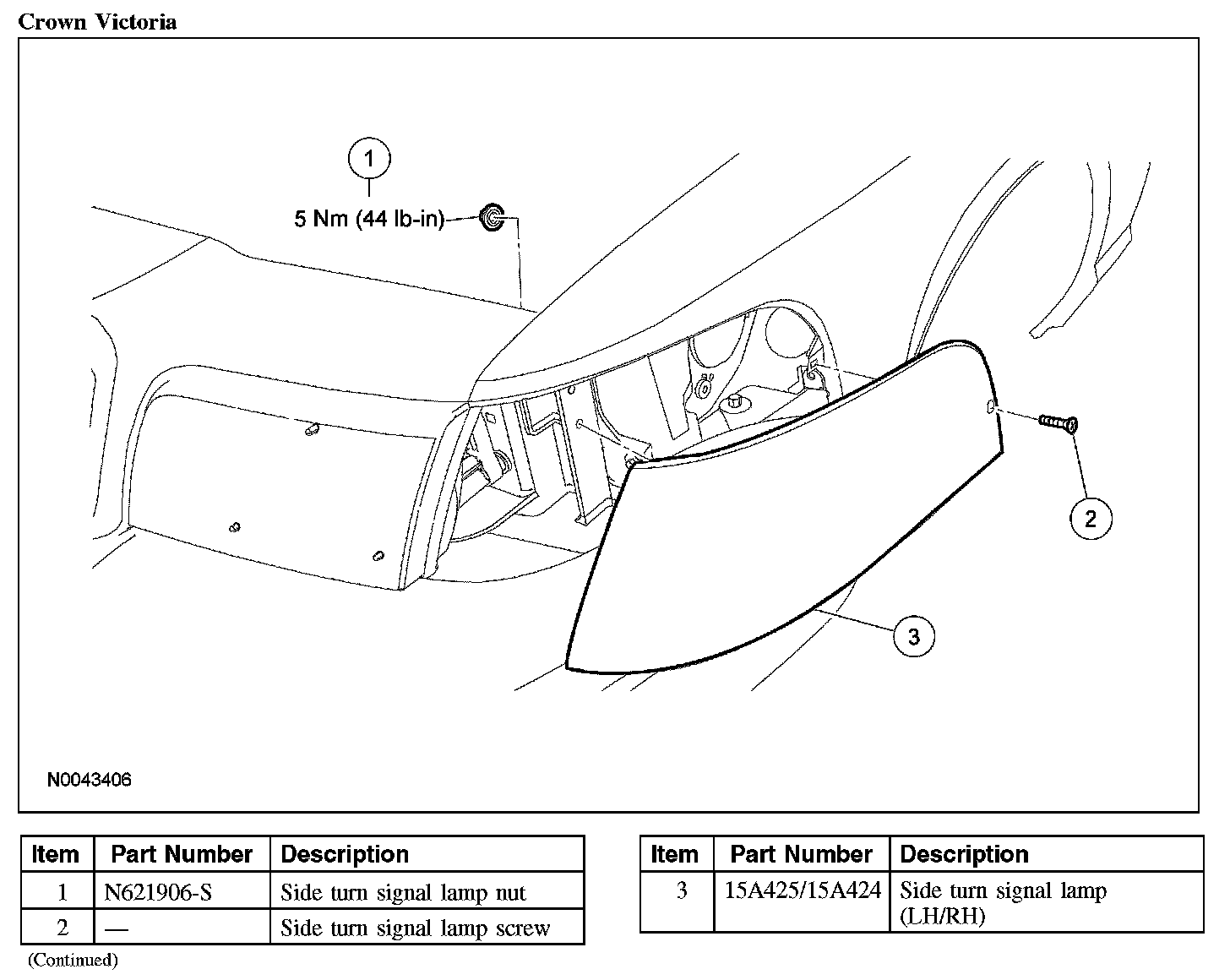

Crown Victoria:

Grand Marquis:

Removal and Installation

All vehicles







1. Remove the 3 pin-type retainers and the radiator sight shield.

Crown Victoria
2. Remove the side turn signal lamp screw.
3. Remove the nut and the side turn signal assembly.
- Disconnect the electrical connector.
- To install, tighten to 5 Nm (44 lb-in).

Grand Marquis
4. Remove the 2 nuts and the side turn signal assembly.
- Disconnect the electrical connector.
- To install, tighten to 5 Nm (44 lb-in).

All vehicles
5. To install, reverse the removal procedure.
