Test E: The Flash-To-Pass Feature Is Inoperative

PINPOINT TEST E: THE FLASH-TO-PASS FEATURE IS INOPERATIVE

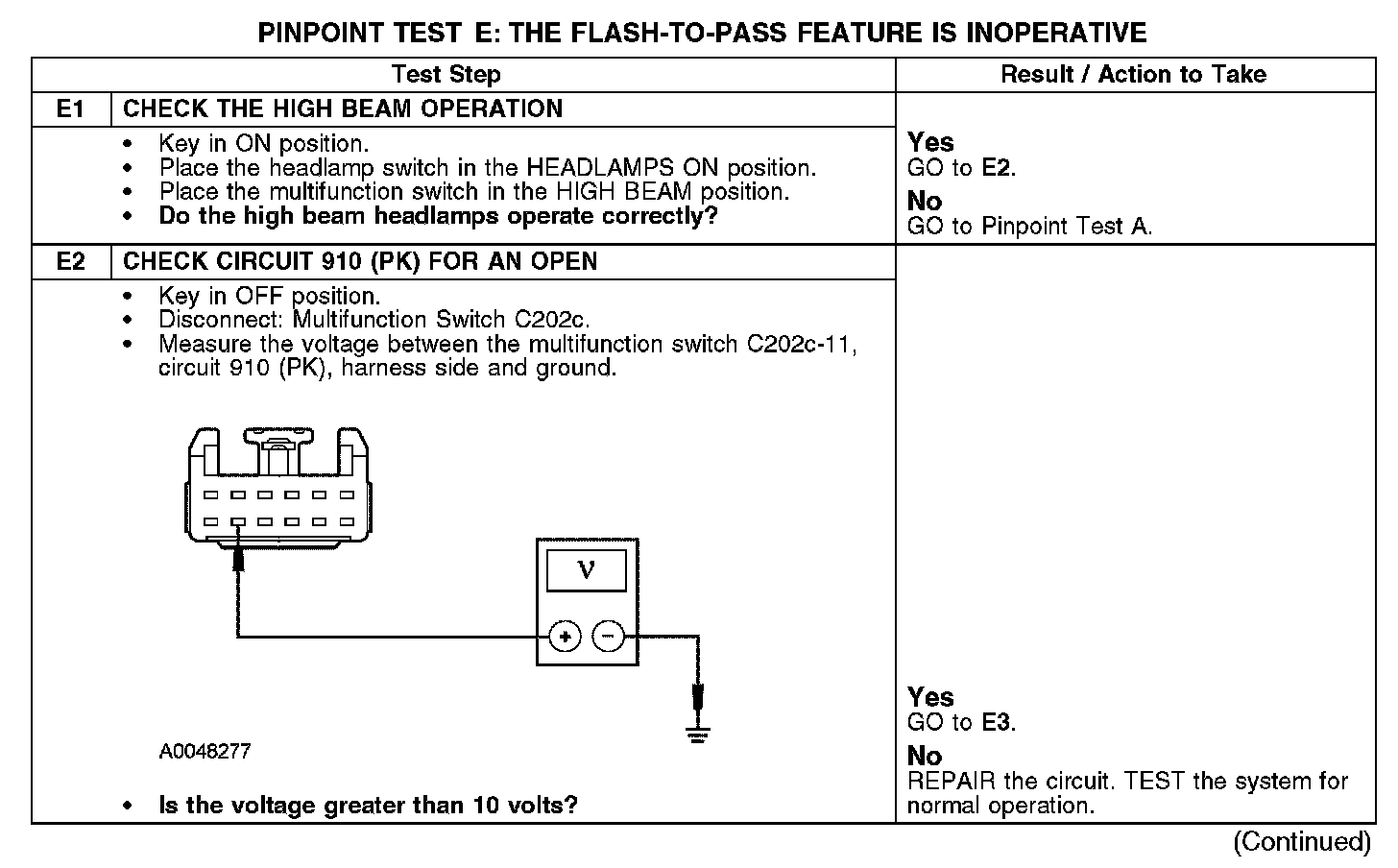

E1-E2:

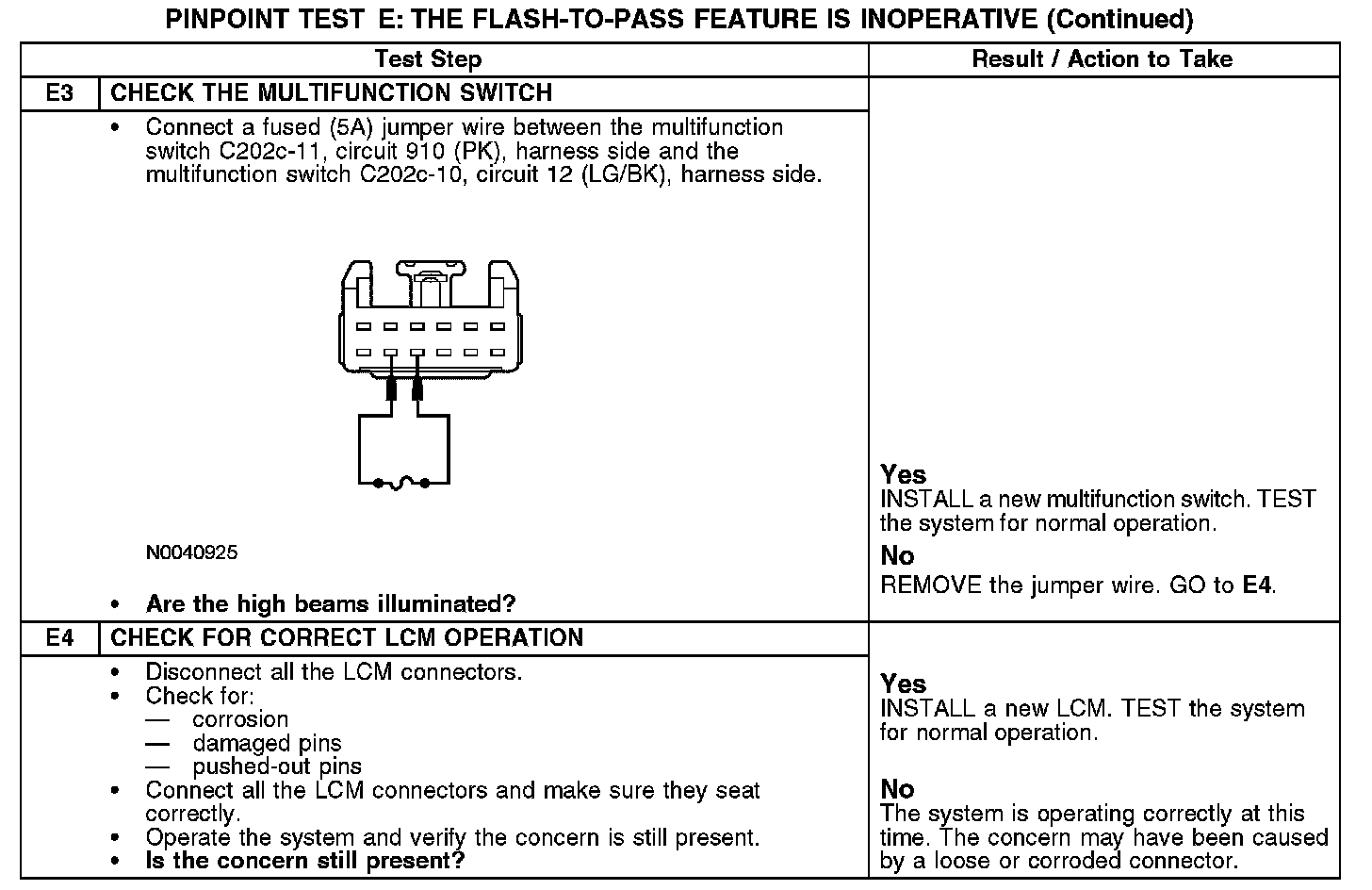

E3-E4:

Normal Operation
The multifunction switch is supplied voltage from the central junction box (CJB) through circuit 910 (PK). When the multifunction switch is placed in the FLASH-TO-PASS position, the voltage is routed to the lighting control module (LCM) through circuit 12 (LG/BK).

Possible Causes
- Circuit 910 (PK) open
- Multifunction switch
- LCM
