Test H: The Luggage Compartment Lamp Is Inoperative

PINPOINT TEST H: THE LUGGAGE COMPARTMENT LAMP IS INOPERATIVE

H1:

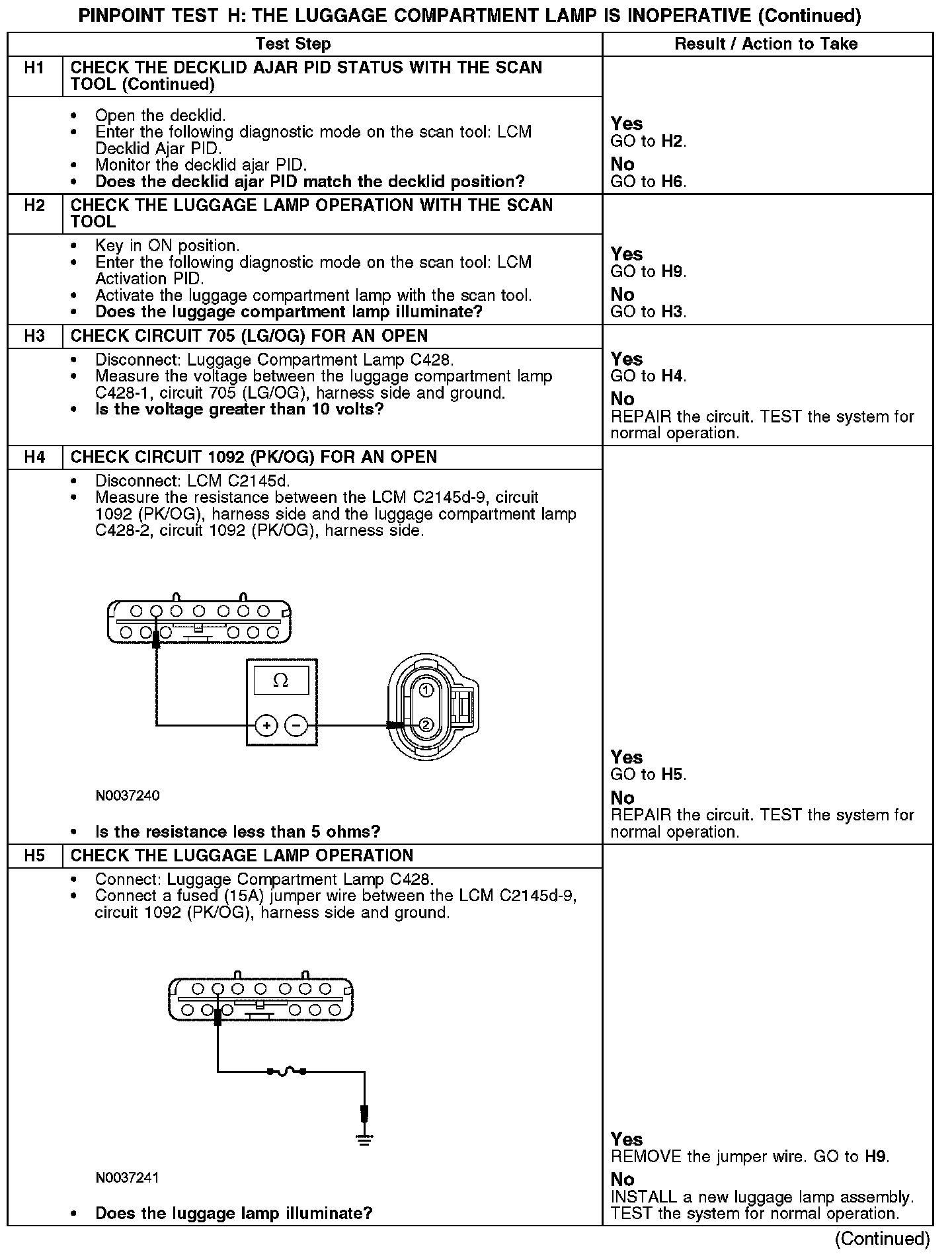

H1-H5:

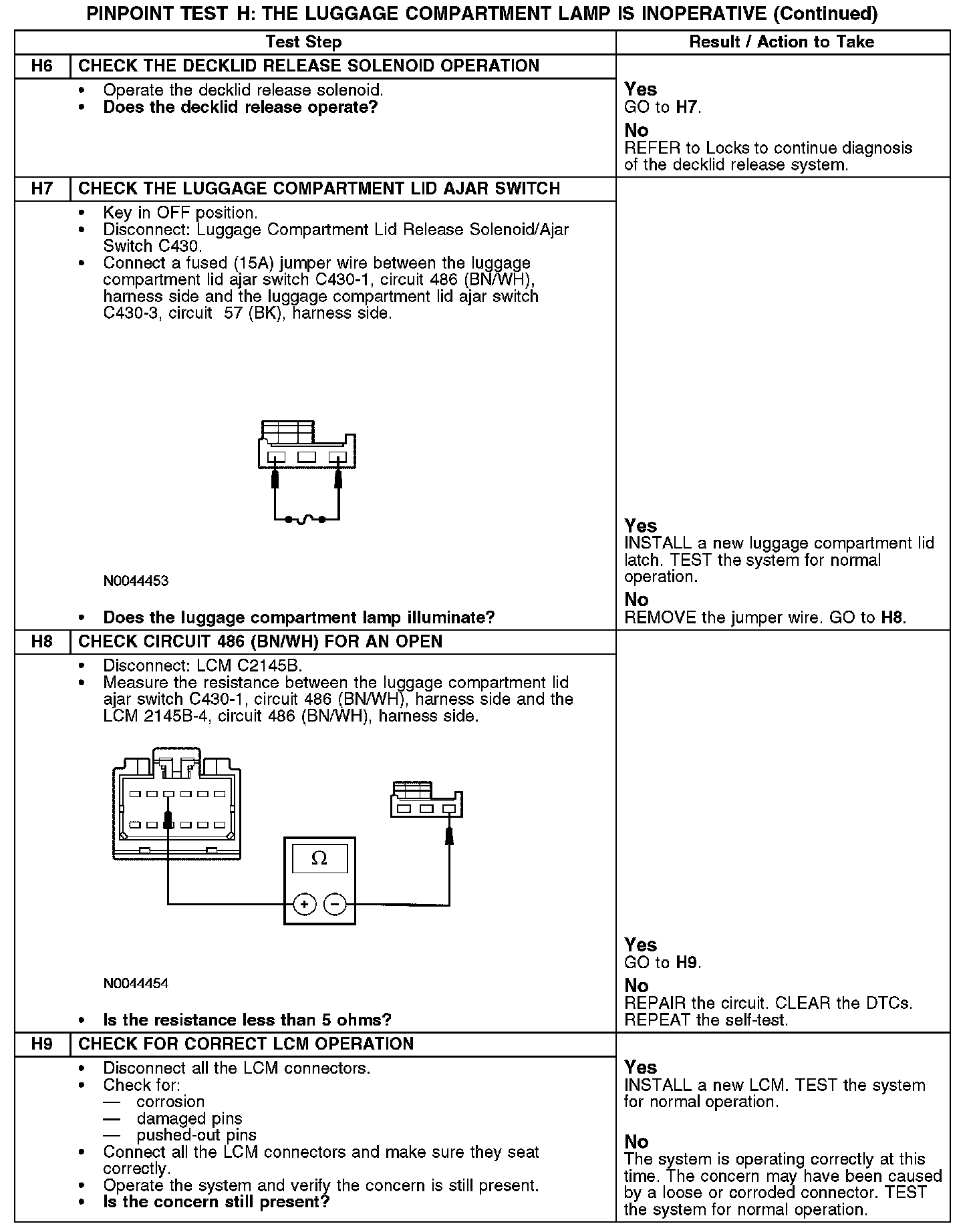

H6-H9:

Normal Operation
The luggage compartment lamp is controlled by the lighting control module (LCM). The LCM receives a signal from the luggage compartment lid ajar switch through circuit 486 (BR/WT). When the luggage compartment lid is opened, the luggage compartment lid ajar switch closes and signals the LCM. The luggage lamp is supplied voltage through circuit 705 (LG/OG). The LCM controls the ground side of the luggage compartment lamp through circuit 1092 (PK/OG).

Possible Causes
- Circuit 486 (BN/WH) open
- Circuit 705 (LG/OG) open
- Circuit 1092 (PK/OG) open
- Luggage lamp assembly
- Luggage compartment lid release solenoid/ajar switch
- LCM
