Test D: The Door Ajar Warning Chime Does Not Operate Correctly

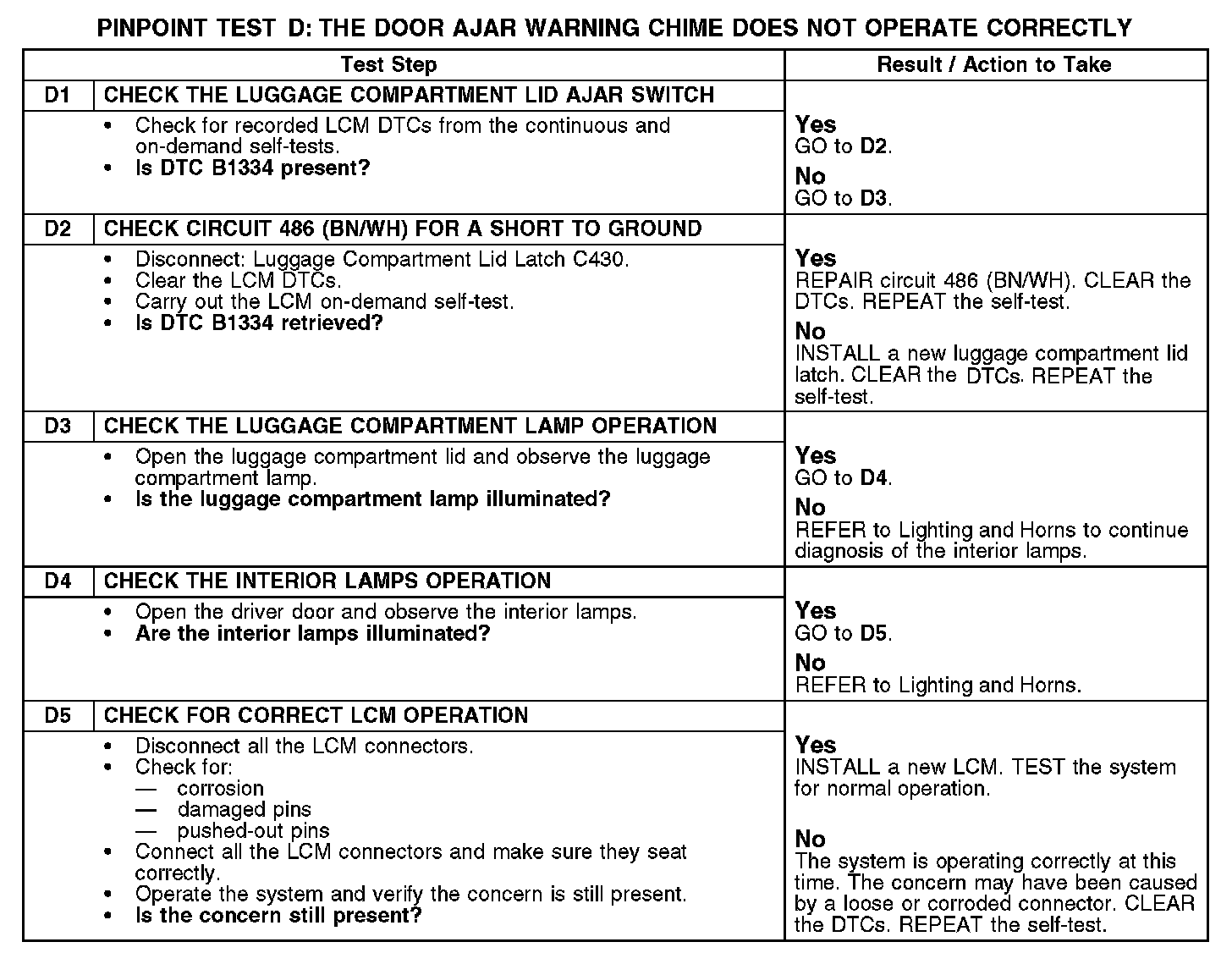

PINPOINT TEST D: THE DOOR AJAR WARNING CHIME DOES NOT OPERATE CORRECTLY

D1-D5:

Normal Operation
The door ajar warning chime sounds when the ignition switch is in the ON position and the luggage compartment lid or a door is ajar.

DTC B1334 - is an on-demand DTC that sets if the lighting control module (LCM) detects that decklid ajar, circuit 486 (BR/WH) is short to ground.

Possible Causes
- Circuit 486 (BN/WH) open or short to ground
- Luggage compartment lid latch
- LCM
