Test P: The RH Turn Signal Indicator Is Never On

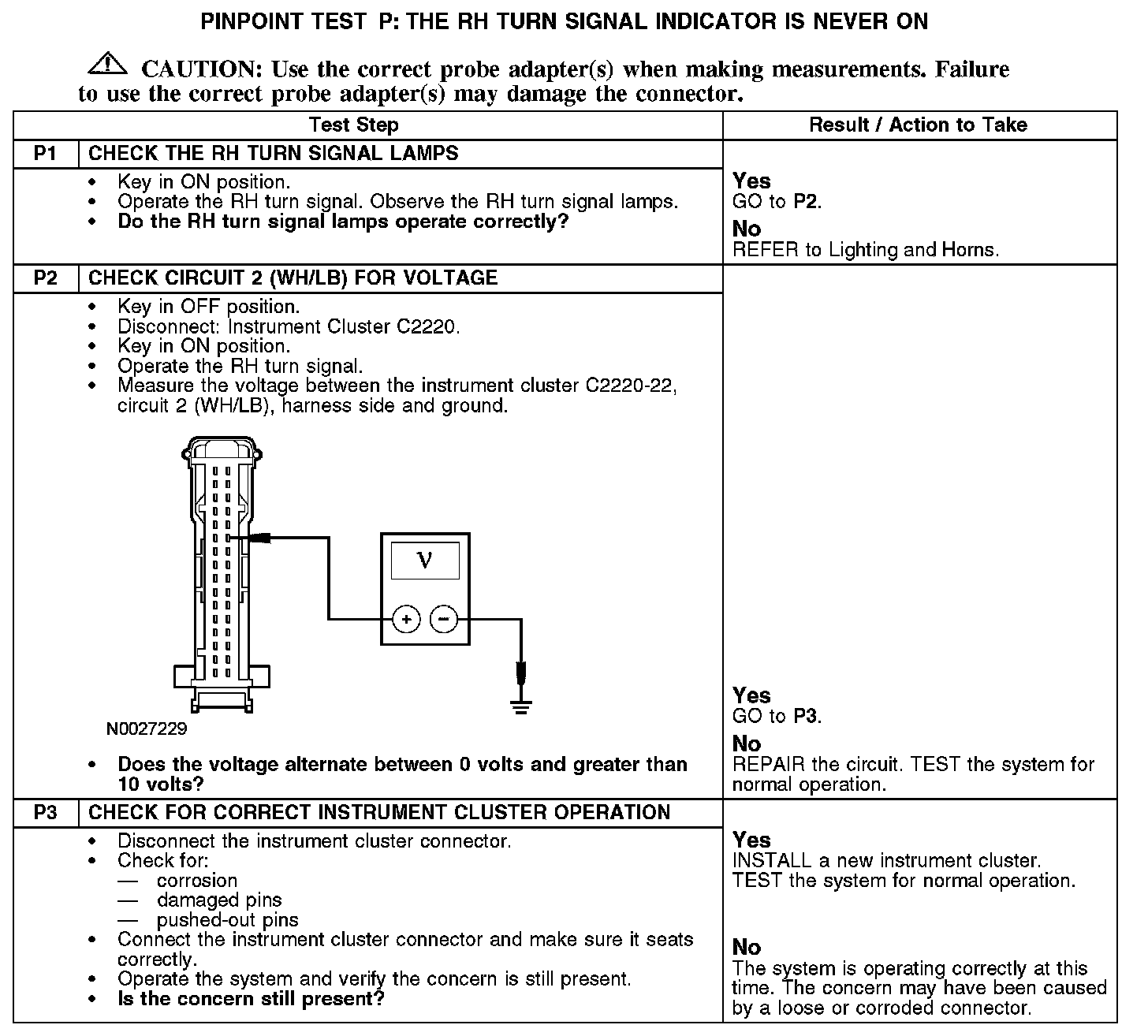

PINPOINT TEST P: THE RH TURN SIGNAL INDICATOR IS NEVER ON

P1-P3:

Normal Operation
When the multifunction switch is in the RH TURN position, on/off voltage is sent from the multifunction switch to the instrument cluster through circuit 2 (WH/LB), and the right turn signal indicator flashes on and off.

Possible Causes
- Circuit 2 (WH/LB) open
- RH turn signal lamps
- Instrument cluster
