Water Pump: Service and Repair

Coolant Pump

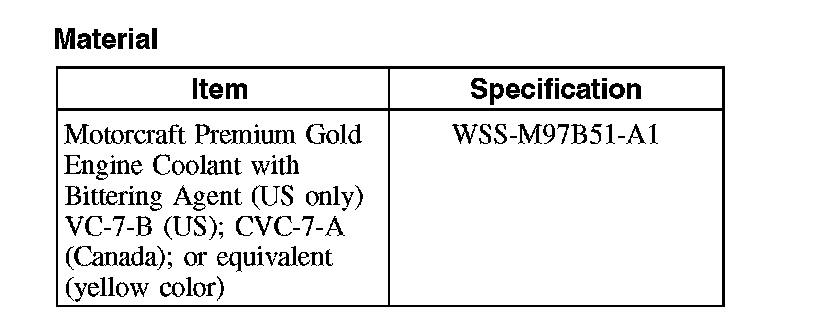

Material:

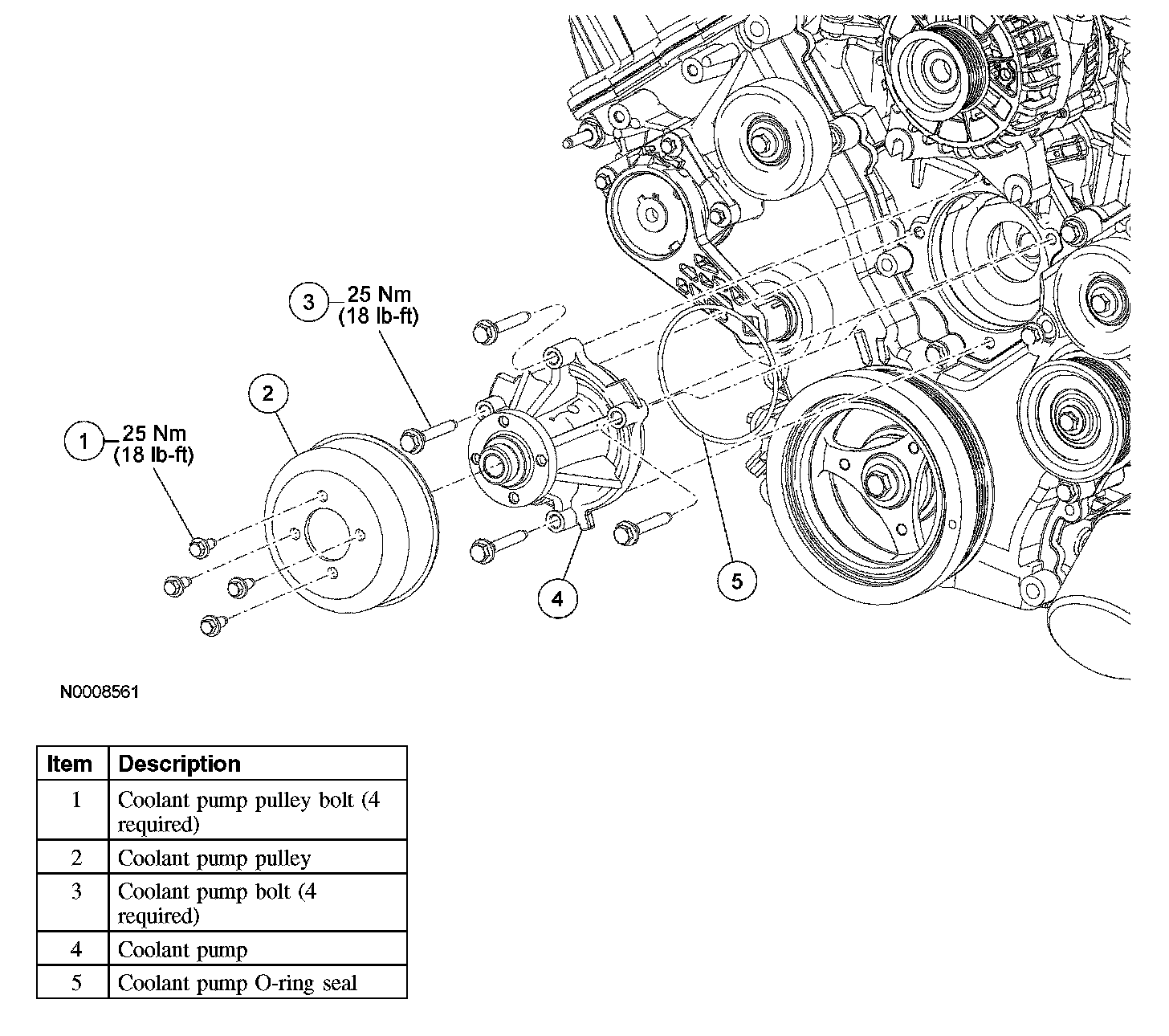

Removal and Installation

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

Drain the cooling system.
2. Loosen the 4 coolant pump pulley bolts.
3. Remove the accessory drive belt.
4. Remove the 4 bolts and the coolant pump pulley.
^ To install, tighten to 25 Nm (18 ft. lbs.).
5. Remove the 4 bolts and the coolant pump.
^ Discard the O-ring seal.
^ To install, tighten to 25 Nm (18 ft. lbs.).

6. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

CAUTION: Do not rotate the coolant pump housing once installed in the engine. Damage to the O-ring seal can occur, causing the coolant pump to leak.

NOTE: Install a new O-ring seal and lubricate with the clean engine coolant.

To install, reverse the removal procedure. If equipped with fire suppression system, repower the system.
7. Fill and bleed the cooling system.
