Crankshaft: Service and Repair

Crankshaft

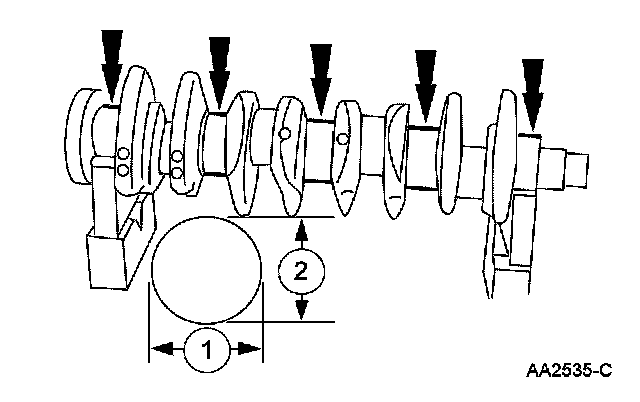

Crankshaft Main Bearing Journal Diameter
1. Measure each of the crankshaft main bearing journal diameters in at least 2 directions.
^ If out of specification, install new components as necessary.

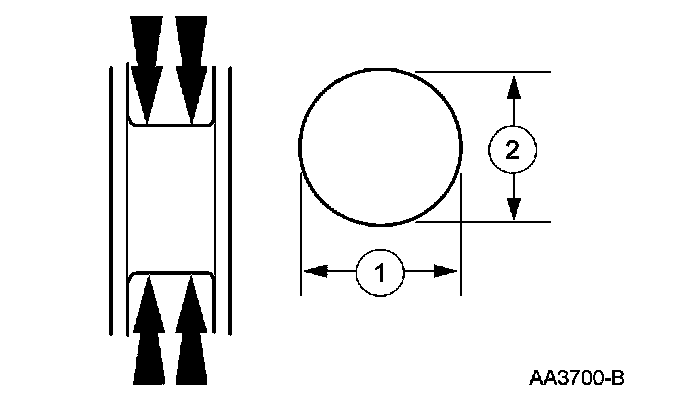

Crankshaft Main Bearing Journal Taper and Out-of-Round
1. Measure each of the crankshaft main bearing journal diameters in at least 2 directions at each end of the main bearing journal.
^ If out of specification, install new components as necessary.
