Engine and Radiator Flushing

Engine and Radiator Flushing

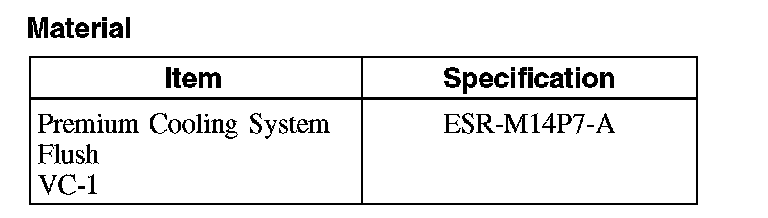

Material:

WARNING: Do not open the cooling system while it is hot or the engine is running. Failure to follow these instructions may result in personal injury.

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

Drain the cooling system.
2. Remove the coolant thermostat.
3. Install the coolant hose connection without the coolant thermostat.

4. NOTE: Refer to the cooling system flusher manufacturer's operating instructions for specific vehicle hook-up.

Using an appropriate cooling system flusher, flush the engine and radiator.
Use Premium Cooling System Flush or equivalent meeting Ford specification. Always flush the cooling system with water thoroughly after using the flush and prior to filling the cooling system. Always fill the cooling system with the same coolant that was present in the system. Do not mix coolant types.
5. Install the coolant thermostat.
6. Backflush the heater core.
7. Fill and bleed the cooling system.

8. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

If equipped with fire suppression system, repower the system.
