Home >> Mercury >> 2007 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> System Diagram >> Wig/Wag Module

Wig/Wag Module

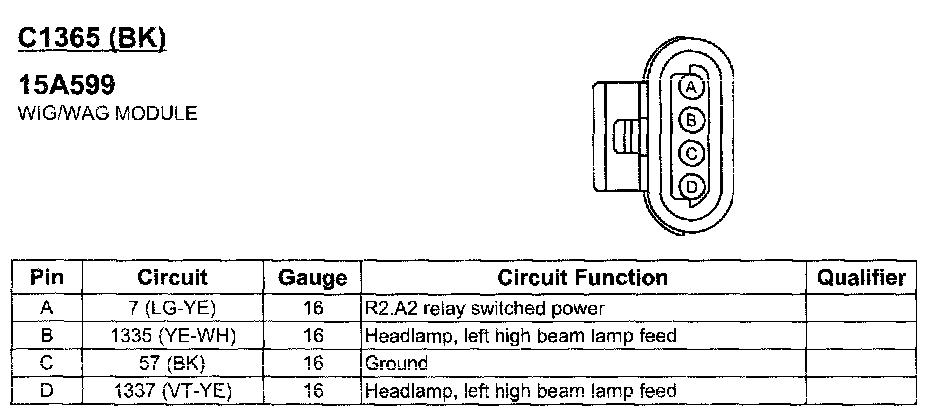

C1365:
