Brake System Leak Check

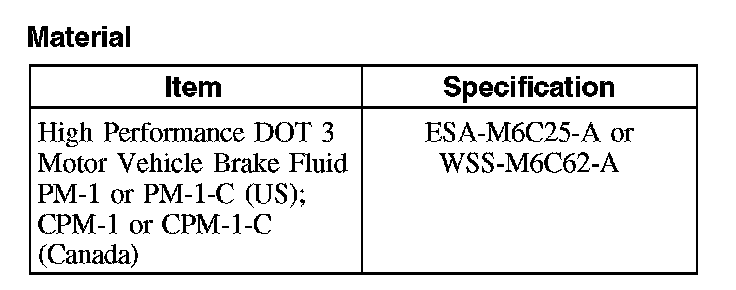

Brake System Leak CheckMaterial:
WARNING: Use of any other than approved DOT 3 brake fluid will cause permanent damage to brake components and will render the brakes inoperative. Failure to follow these instructions may result in personal injury.
WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in personal injury.
CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
1. NOTE: Brake fluid is water soluble and it is possible that all evidence of fluid leakage has been washed off if the vehicle has been operated in the rain or snow.
Make sure the brake master cylinder reservoir is full.
2. : If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.
If equipped with fire suppression system, depower the system.
3. Apply the brakes several times and make sure the brake pedal feel is not spongy. If necessary, bleed the system.
4. If the reservoir level is dropping, inspect the brake components, fittings, hoses and tubes to locate the source of the leak.
5. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.
If equipped with fire suppression system, repower the system.
