Test G: The Autolock Does Not Operate Correctly

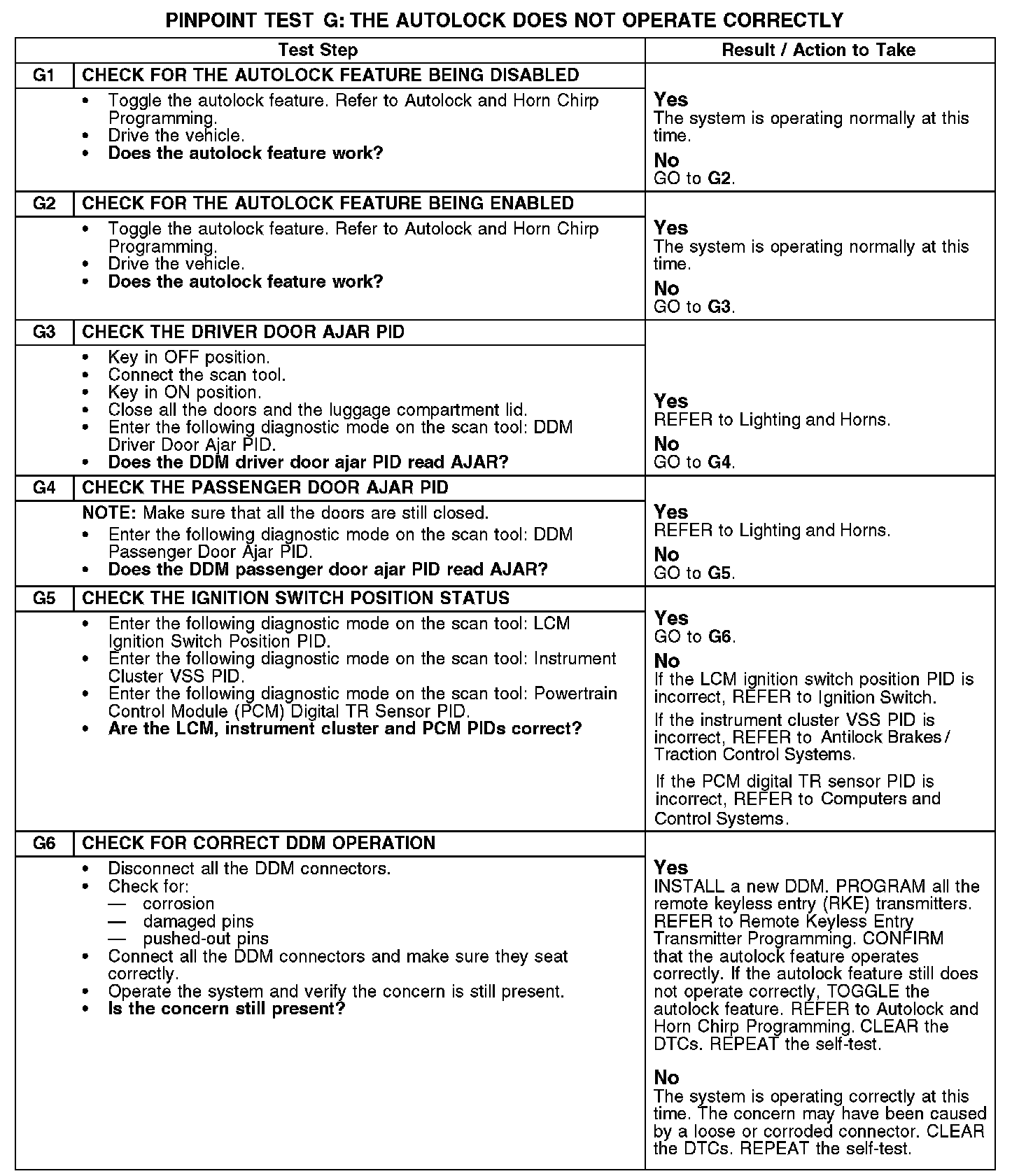

PINPOINT TEST G: THE AUTOLOCK DOES NOT OPERATE CORRECTLY

G1-G6:

Normal Operation
The autolocking function causes the vehicle to automatically lock all doors when all of the following conditions are concurrently met during the current key cycle:
- All the doors are closed
- The autolocking function is active
- The ignition switch is in the ON position
- The transmission is in DRIVE (D) or REVERSE (R)
- The vehicle speed exceeds 5 km/h (3 mph)

After the initial activation of autolocking and at least 1 door has been opened, autolocking is activated again if the following conditions are concurrently met:
- All the doors are closed
- The autolocking function is active
- The ignition switch is in the ON position
- The transmission is in DRIVE (D) or REVERSE (R)
- The vehicle speed exceeds 5 km/h (3 mph)

Possible Causes
- Door ajar switches
- Vehicle speed sensor (VSS) message from the instrument cluster
- Digital transmission range (TR) sensor message from the instrument cluster
- Driver door module (DDM)
