Quarter Trim Panel

QUARTER TRIM PANEL

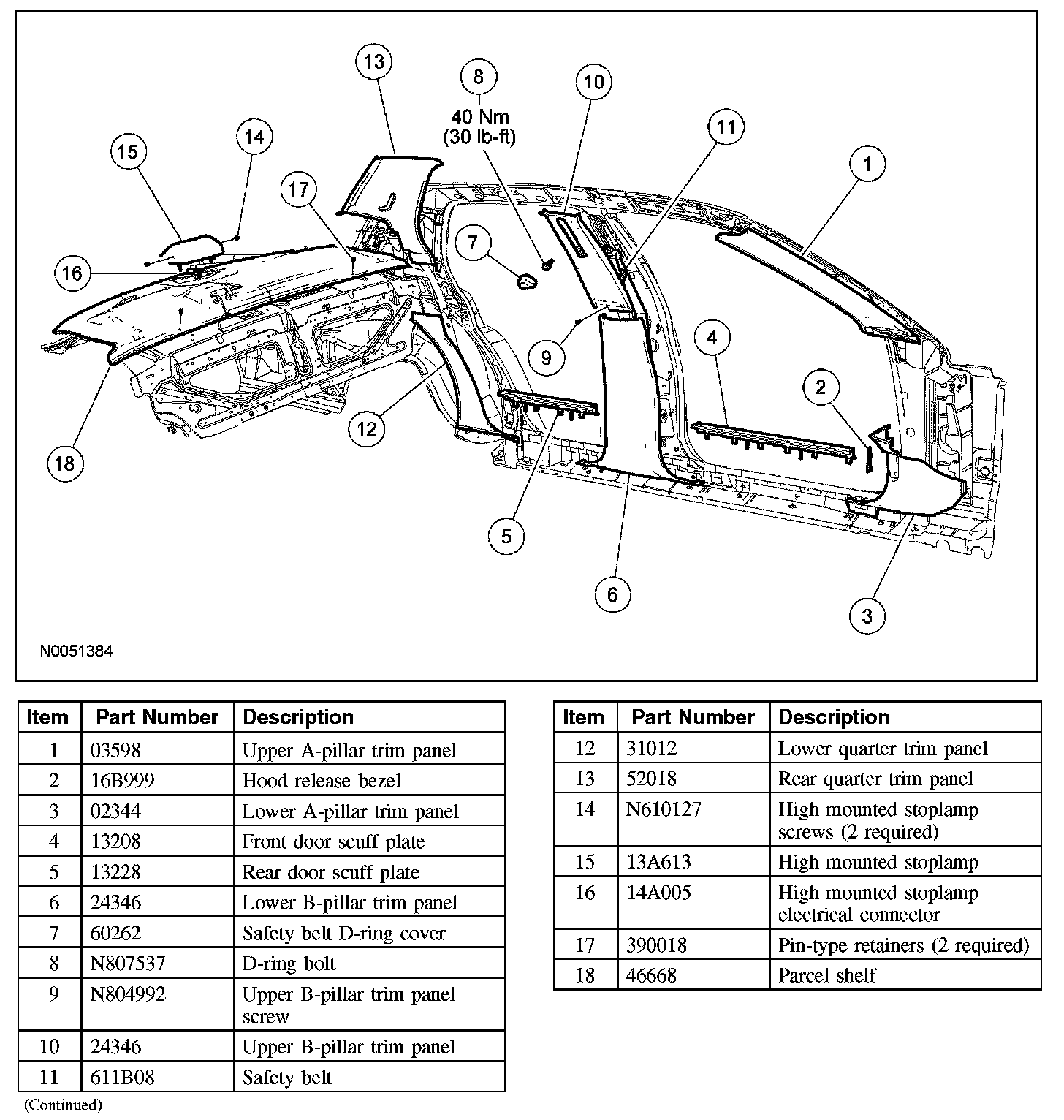

Exploded View

Removal and Installation
1. Remove the rear seat.
2. Position the rear door weatherstrip aside.
3. Remove the rear safety belt retractor assembly.
4. Remove the upper rear quarter trim panel.
- Slide the safety belt through the rear quarter trim panel opening.

5. Remove the lower rear quarter trim panel.
6. To install, reverse the removal procedure.
- Check the restraint system for correct operation.
