Test G: DTCs B29A1, B29AB, B29A3 and B29AD - Suppressor Left/Right Circuit Short to Ground/Low Resistance - Loop #2

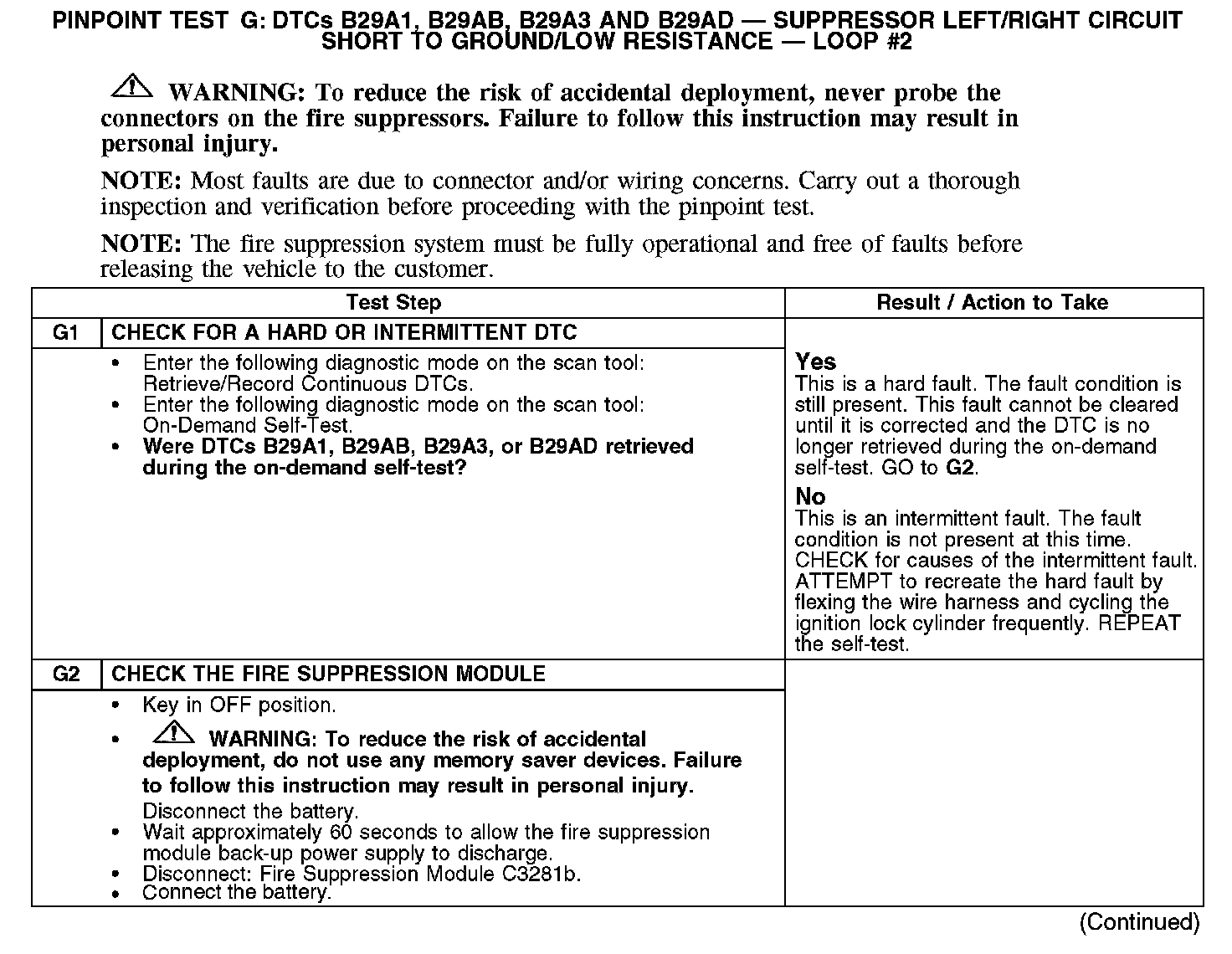

PINPOINT TEST G: DTCs B29A1, B29AB, B29A3 AND B29AD - SUPPRESSOR LEFT/RIGHT CIRCUIT SHORT TO GROUND/LOW RESISTANCE - LOOP #2G1-G2:

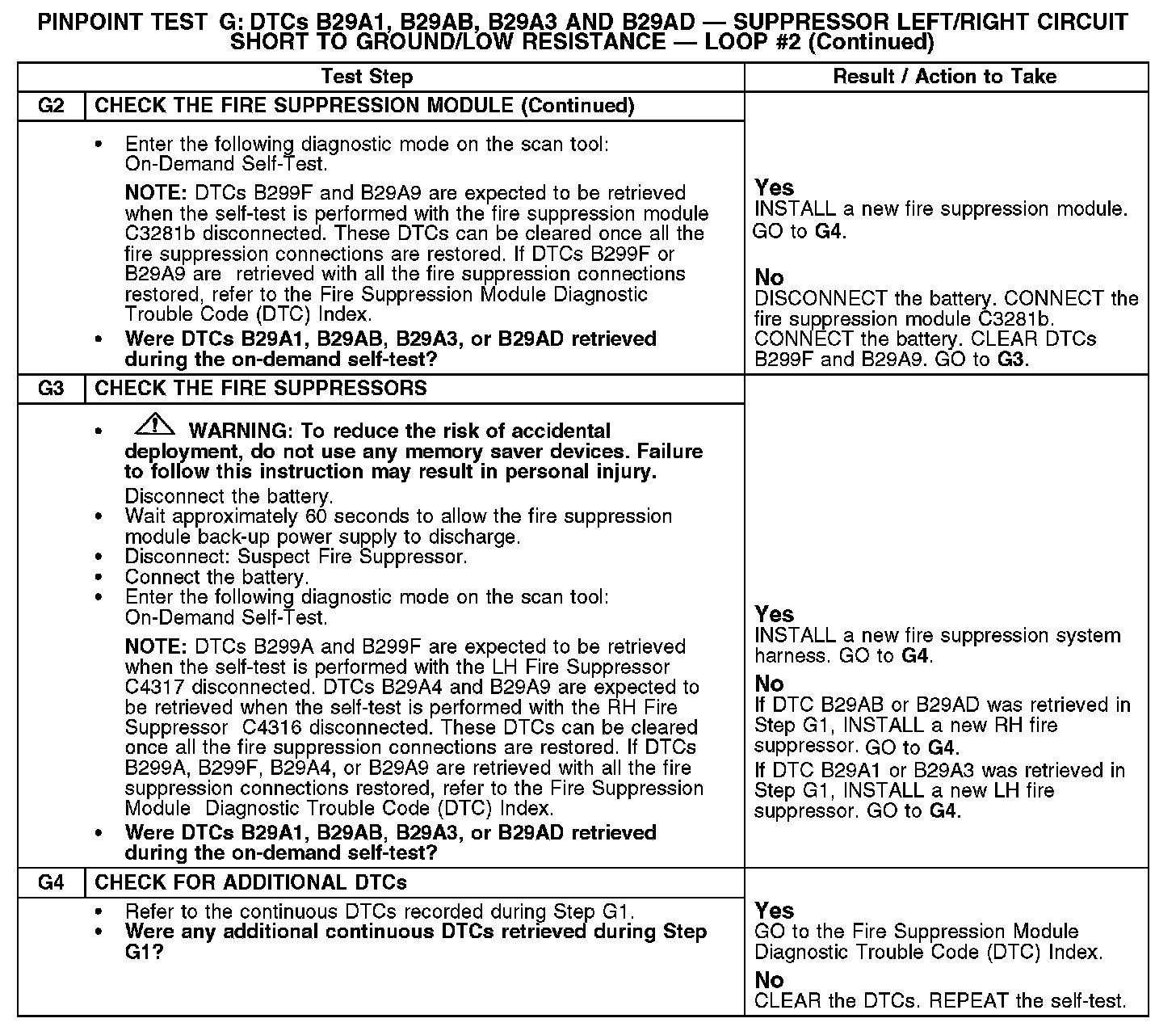

G2-G4:
Normal Operation
The fire suppression module checks all of the fire suppressor circuits for faults. If the fire suppression module detects a short to ground on the LH fire suppressor squib 2 circuits, it stores DTC B29A1 in memory and illuminates the fire suppression system indicator. If the fire suppression module detects a low resistance condition between the LH fire suppressor squib 2 circuits, it stores DTC B29A3 in memory and illuminates the fire suppression system indicator. If the fire suppression module detects a short to ground on the RH fire suppressor squib 2 circuits, it stores DTC B29AB in memory and illuminates the fire suppression system indicator. If the fire suppression module detects a low resistance condition between the RH fire suppressor squib 2 circuits, it stores DTC B29AD in memory and illuminates the fire suppression system indicator.
Possible Causes
- Circuit 2326 (LG) short to ground
- Circuit 2326 (LG) short to circuit 2327 (BK/WH)
- Circuit 2327 (BK/WH) short to ground
- Circuit 2328 (OG) short to ground
- Circuit 2328 (OG) short to circuit 2329 (DG)
- Circuit 2329 (DG) short to ground
- RH fire suppressor
- LH fire suppressor
- Fire suppression module
