Test E: DTCs B299B and B29A5 - Suppressor Left/Right Circuit Short to Battery - Loop #1

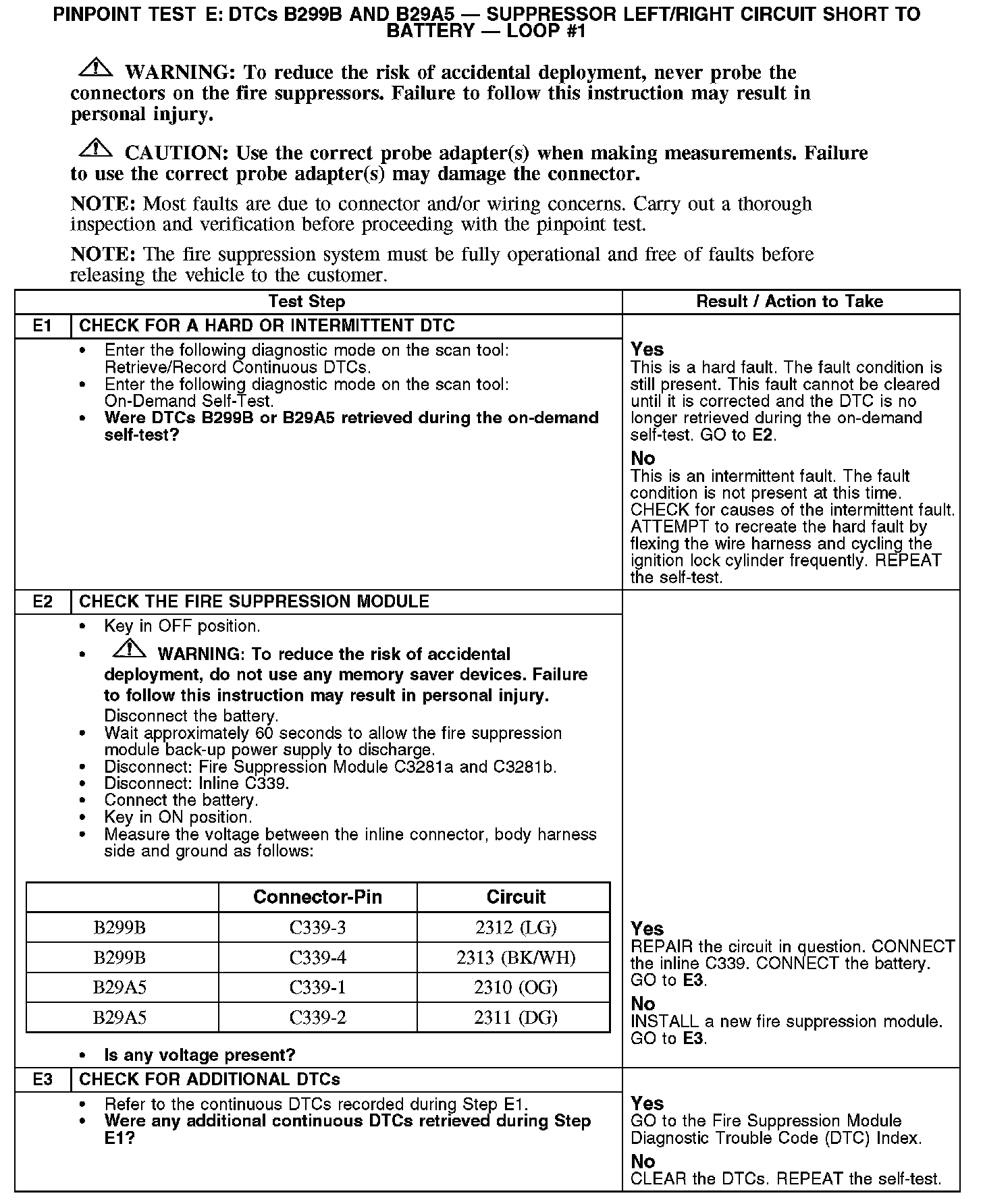

PINPOINT TEST E: DTCs B299B AND B29A5 - SUPPRESSOR LEFT/RIGHT CIRCUIT SHORT TO BATTERY - LOOP #1

E1-E3:

Normal Operation
The fire suppression module checks all of the fire suppressor circuits for faults. If the fire suppression module detects a short to voltage on the LH fire suppressor squib 1 circuits, it stores DTC B299B in memory and illuminates the fire suppression system indicator. If the fire suppression module detects a short to voltage on the RH fire suppressor squib 1 circuits, it stores DTC B29A5 in memory and illuminates the fire suppression system indicator.

Possible Causes
- Circuit 2310 (OG) short to voltage
- Circuit 2311 (DG) short to voltage
- Circuit 2312 (LG) short to voltage
- Circuit 2313 (BK/WH) short to voltage
- Fire suppression module
