Test E: DTC C1770 - Air Suspension Vent Solenoid Output Circuit Failure
Test E: DTC C1770 - Air Suspension Vent Solenoid Output Circuit FailureRefer to Vehicle/Diagrams, Vehicle Dynamic Suspension for schematic and connector information.
Normal Operation
When venting of the rear air suspension system is necessary, the air suspension module sends voltage to the vent solenoid along circuit 421 (PK). This voltage engages the solenoid which then vents the system. The solenoid is provided a ground along circuit 57 (BK). The vent solenoid is part of the air suspension compressor assembly and is serviced as such.
Possible Causes
^ Circuit open
^ Circuit shorted
^ Air suspension module
^ Air suspension compressor

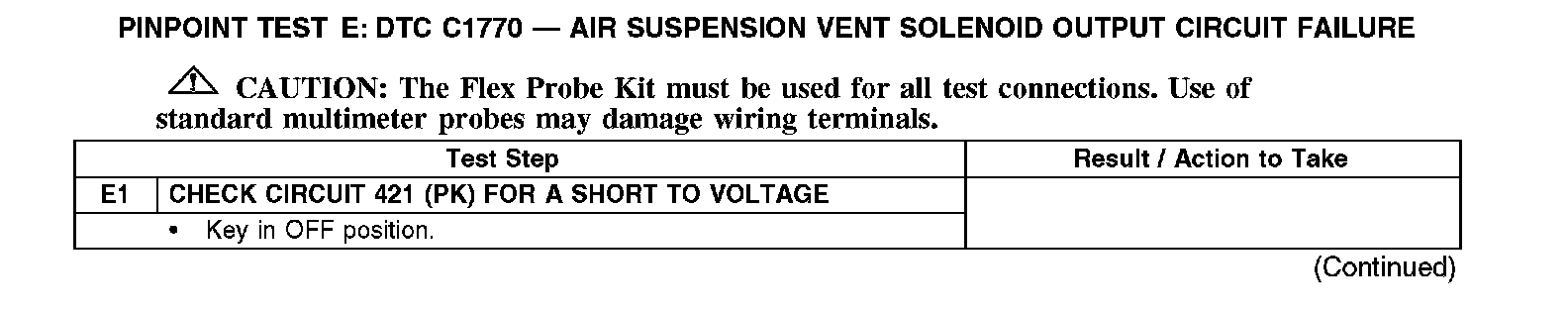

E1:

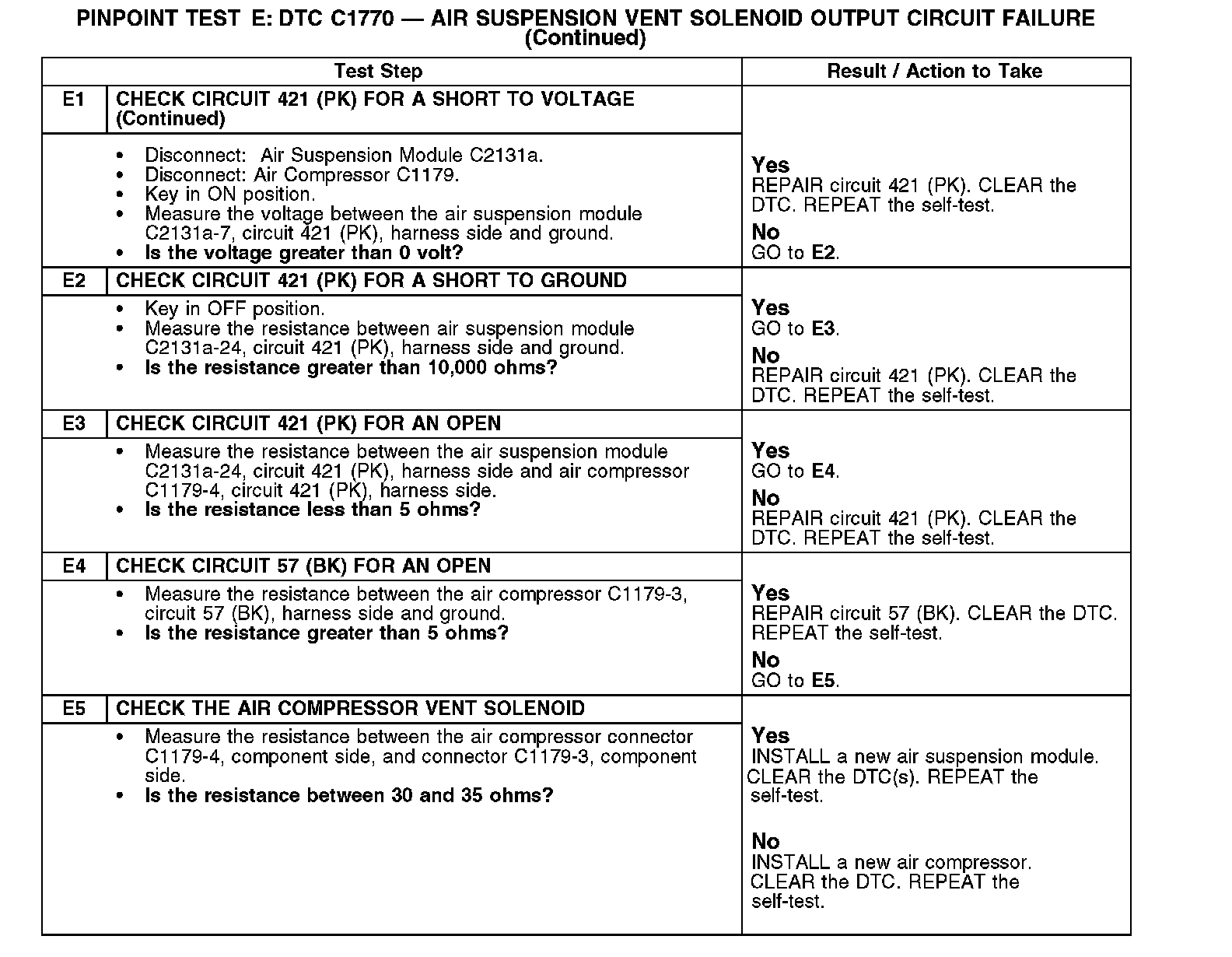

E1-E5:
