Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER PURGE VALVE

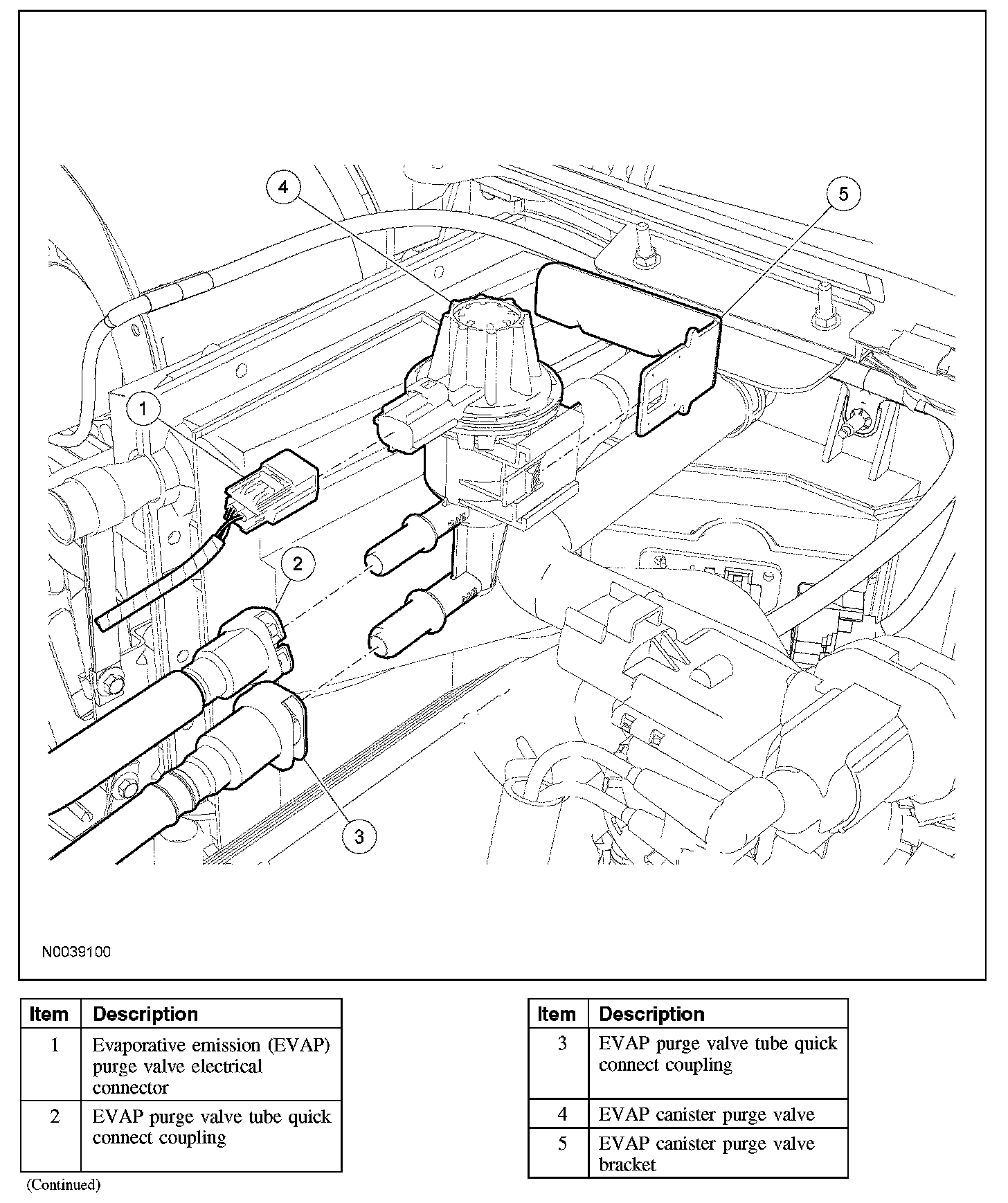

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the evaporative emission (EVAP) purge valve electrical connector.
3. Disconnect the 2 EVAP tube quick connect couplings.
4. Remove the EVAP canister purge valve.
- Depress the lock tab on the EVAP canister purge valve and release it from the bracket.

5. To install, reverse the removal procedure.
- Leak test the system. Testing and Inspection
- Carry out the evaporative emission repair verification drive cycle.
