Radiator: Service and Repair

Radiator

Radiator:

Removal and Installation

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

Remove the cooling fan motor and shroud assembly.

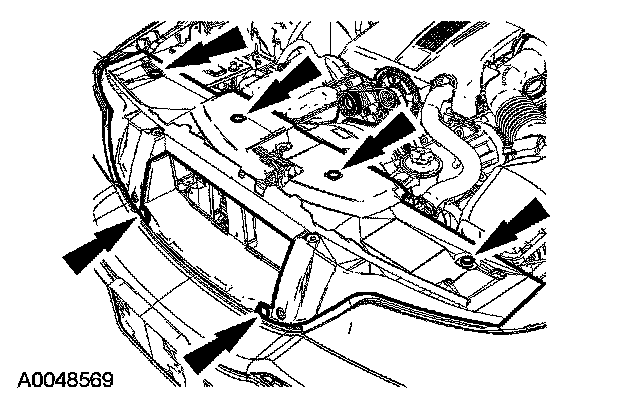

2. Remove the pin-type retainers and remove the radiator sight shield.

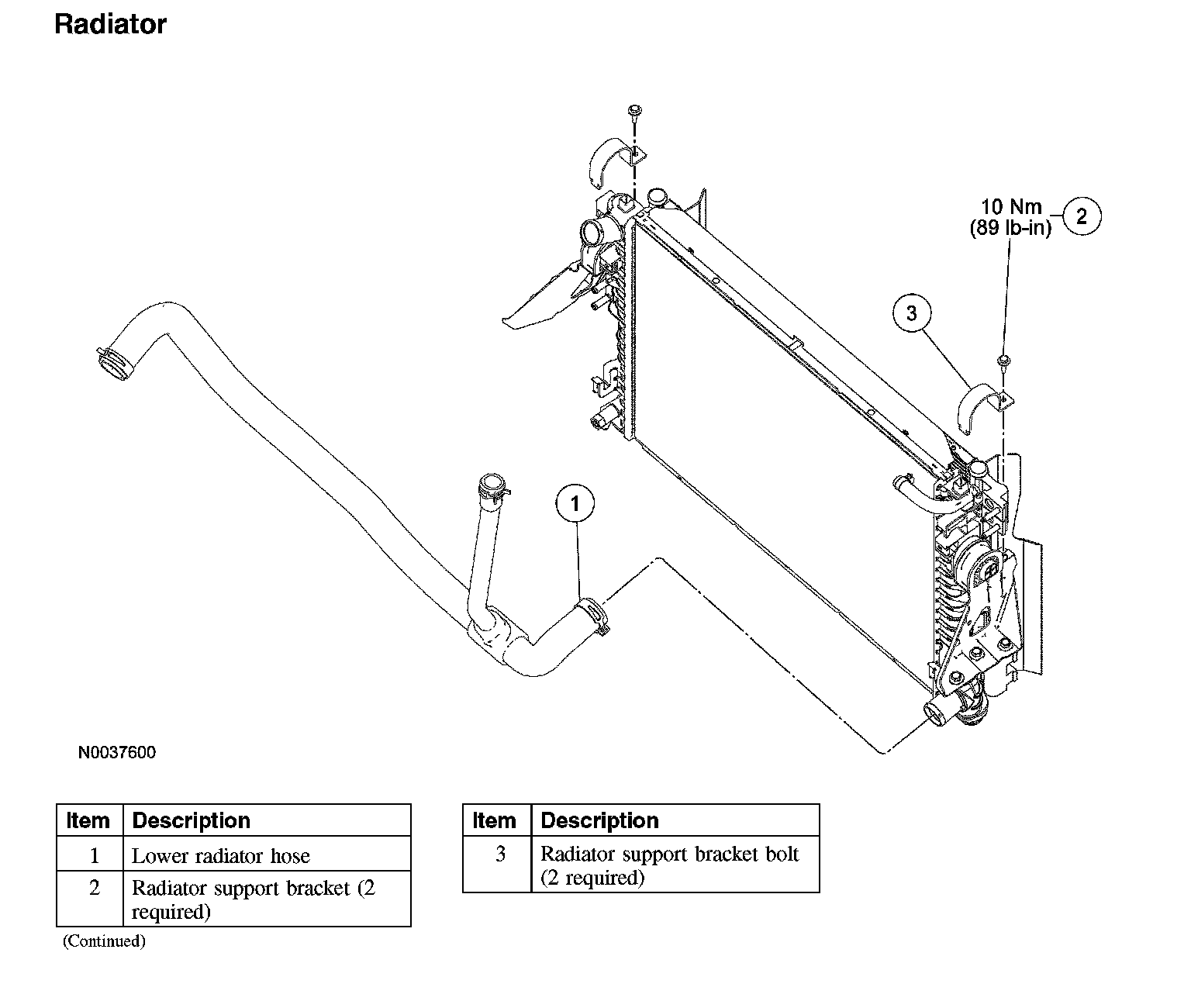

3. Disconnect the lower radiator hose and position aside.
4. Remove the 2 bolts and the 2 radiator support brackets.
^ To install, tighten to 10 Nm (89 inch lbs.).

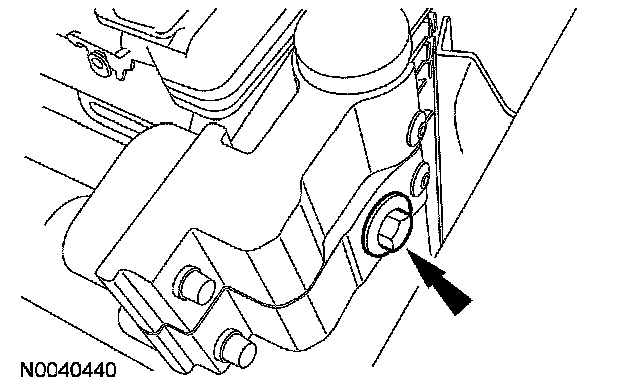

5. Remove the bolt, position the A/C condenser and the power steering cooler away from the radiator, and remove the radiator.
^ To install, tighten to 10 Nm (89 inch lbs.).





6. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

NOTE: Do not reuse hose clamps. Instead, use appropriately sized worm-style clamps in place of the constant tension clamps.

To install, reverse the removal procedure. If equipped with fire suppression system, repower the system.
7. Fill and bleed the cooling system.
