Fender Splash Shield - RH

FENDER SPLASH SHIELD - RH







Removal and Installation

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

Remove the battery.

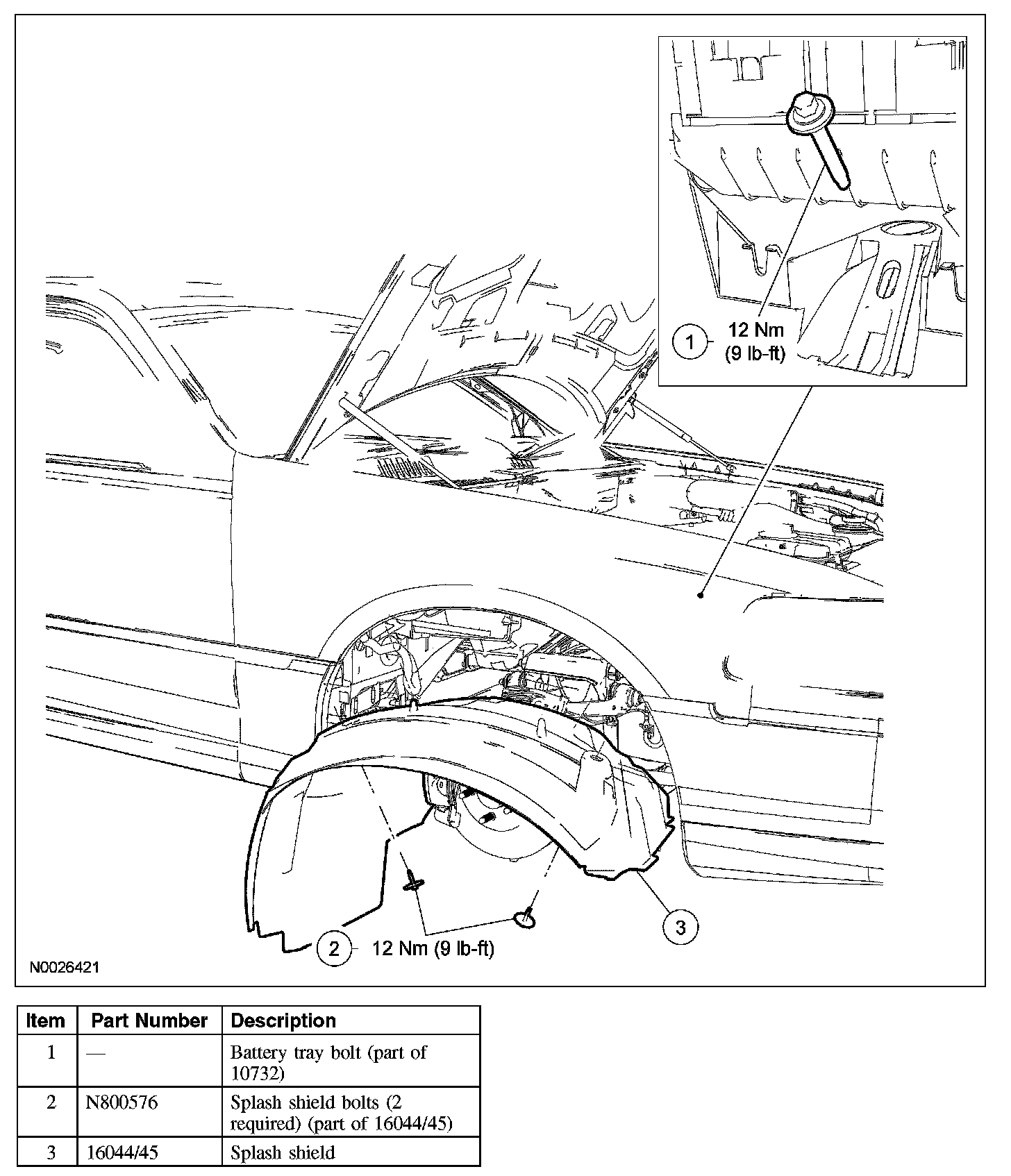

2. Remove the battery tray bolt.
- To install, tighten to 12 Nm (9 lb-ft).

3. With the vehicle in NEUTRAL, position on a boist.
4. Remove the 2 bolts and the fender splash shield.
- To install, tighten to 12 Nm (9 lb-ft).

5. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

To install, reverse the removal procedure.
