Test E: DTC B1681 - PATS Transceiver Module Signal Is Not Received

PINPOINT TEST E: DTC B1681 - PATS TRANSCEIVER MODULE SIGNAL IS NOT RECEIVED

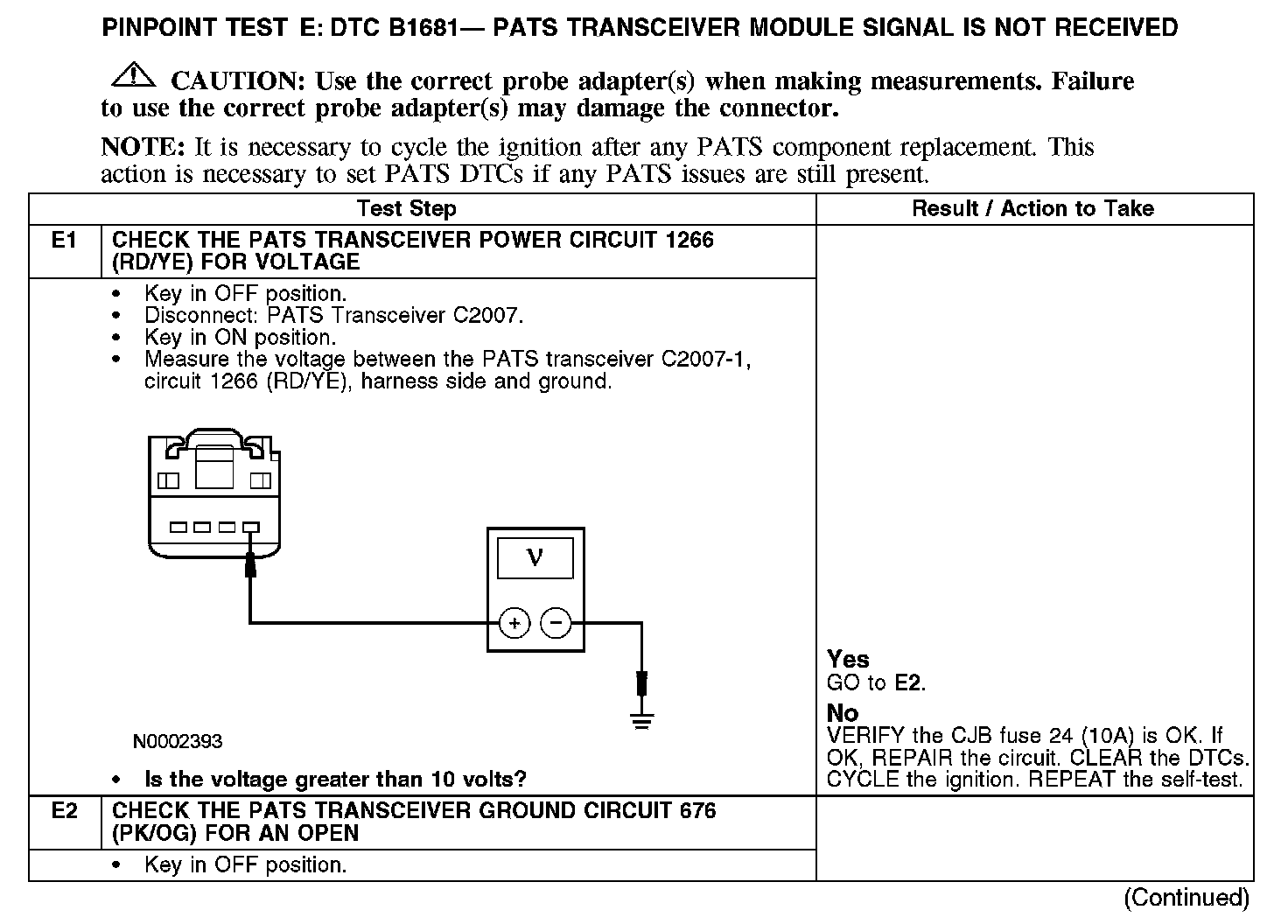

E1-E2:

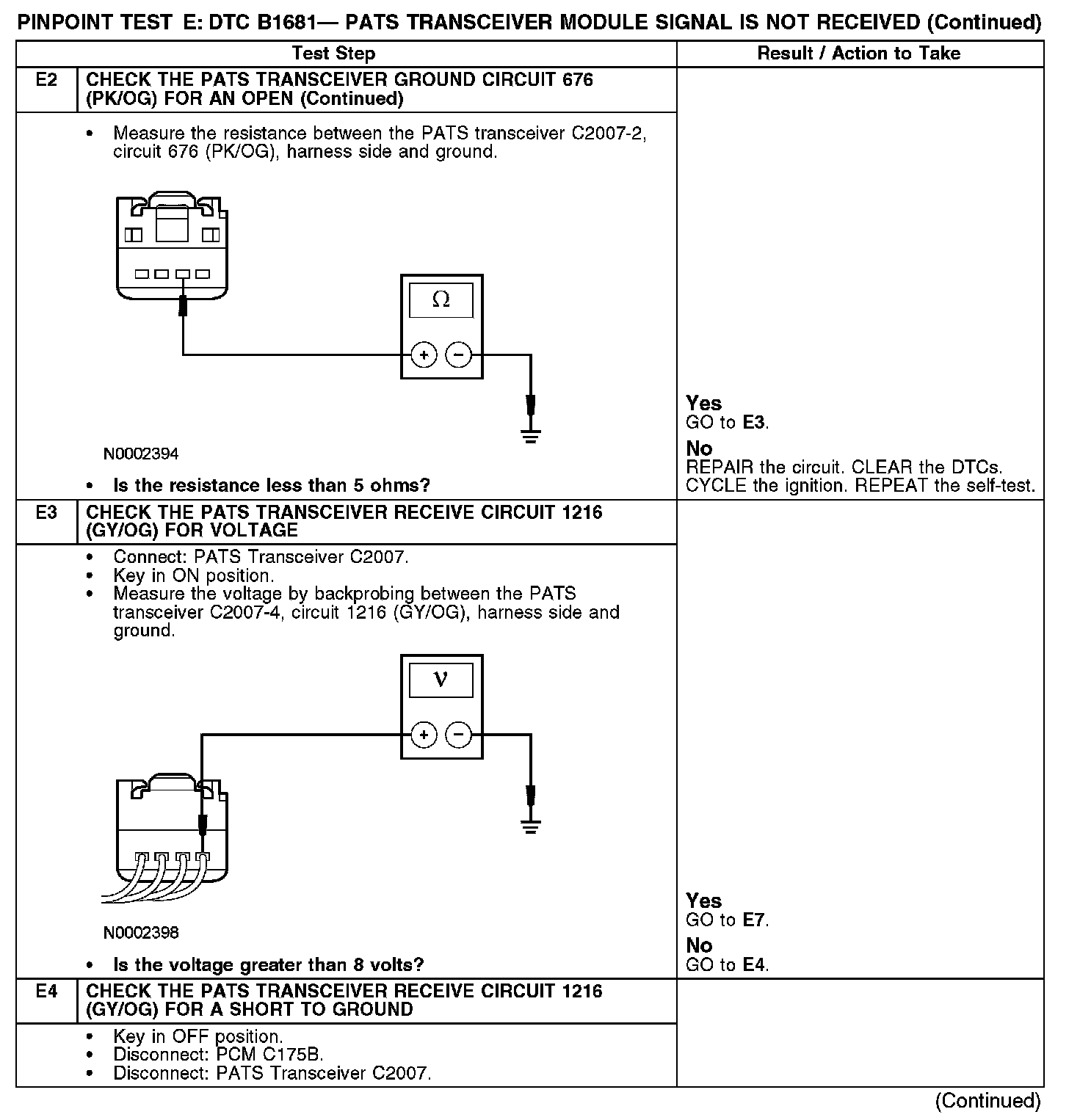

E2-E4:

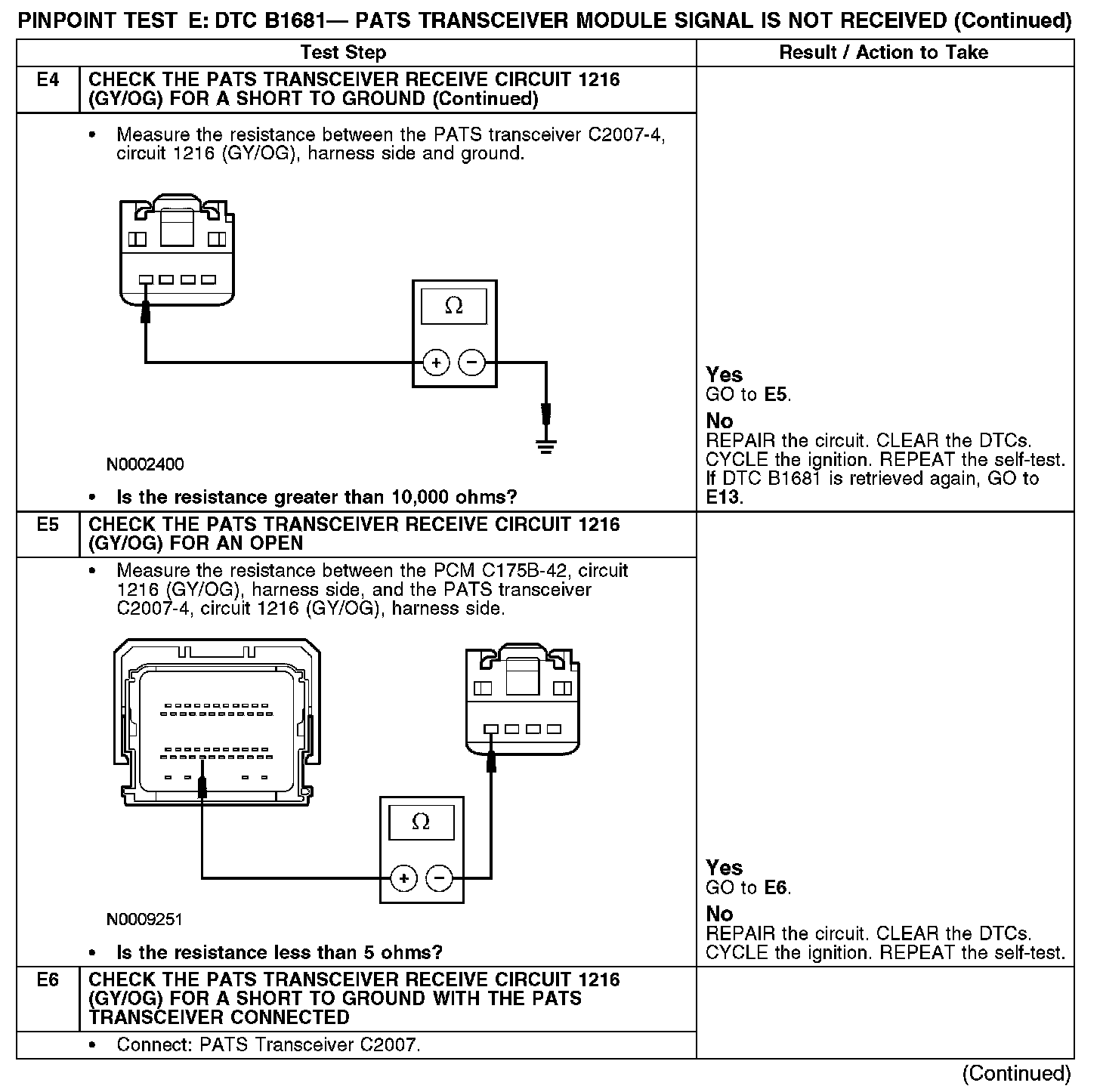

E4-E6:

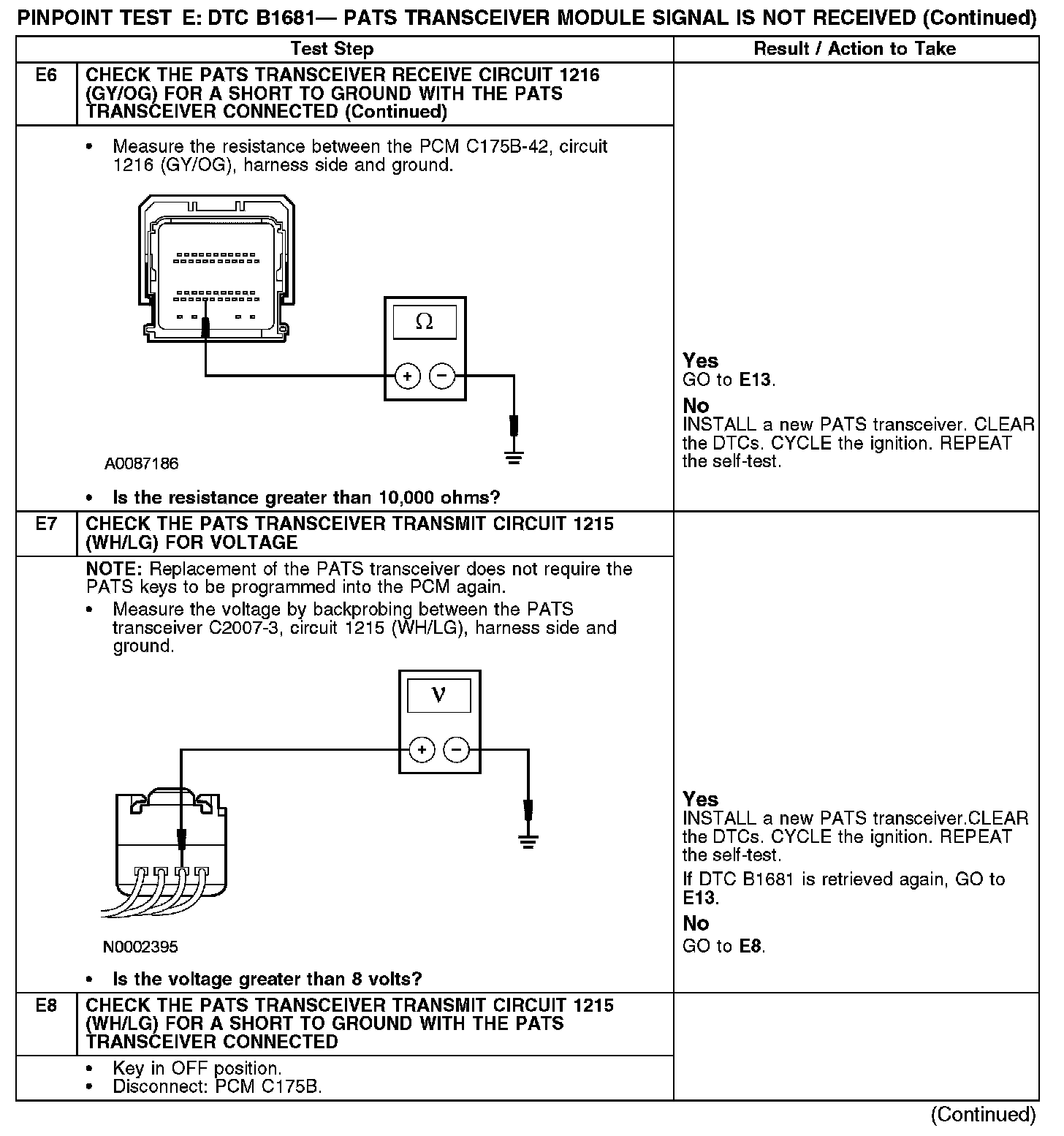

E6-E8:

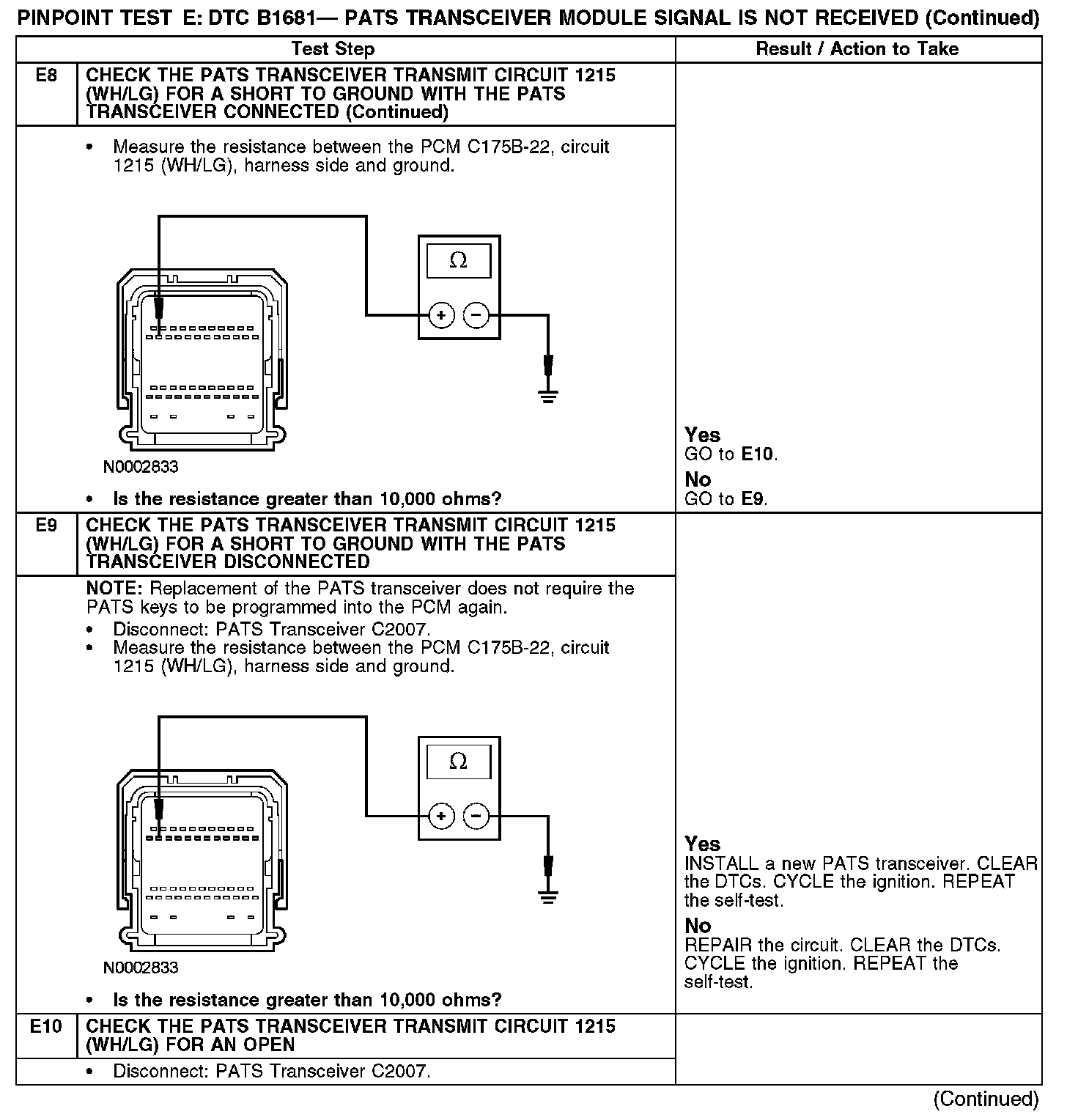

E8-E10:

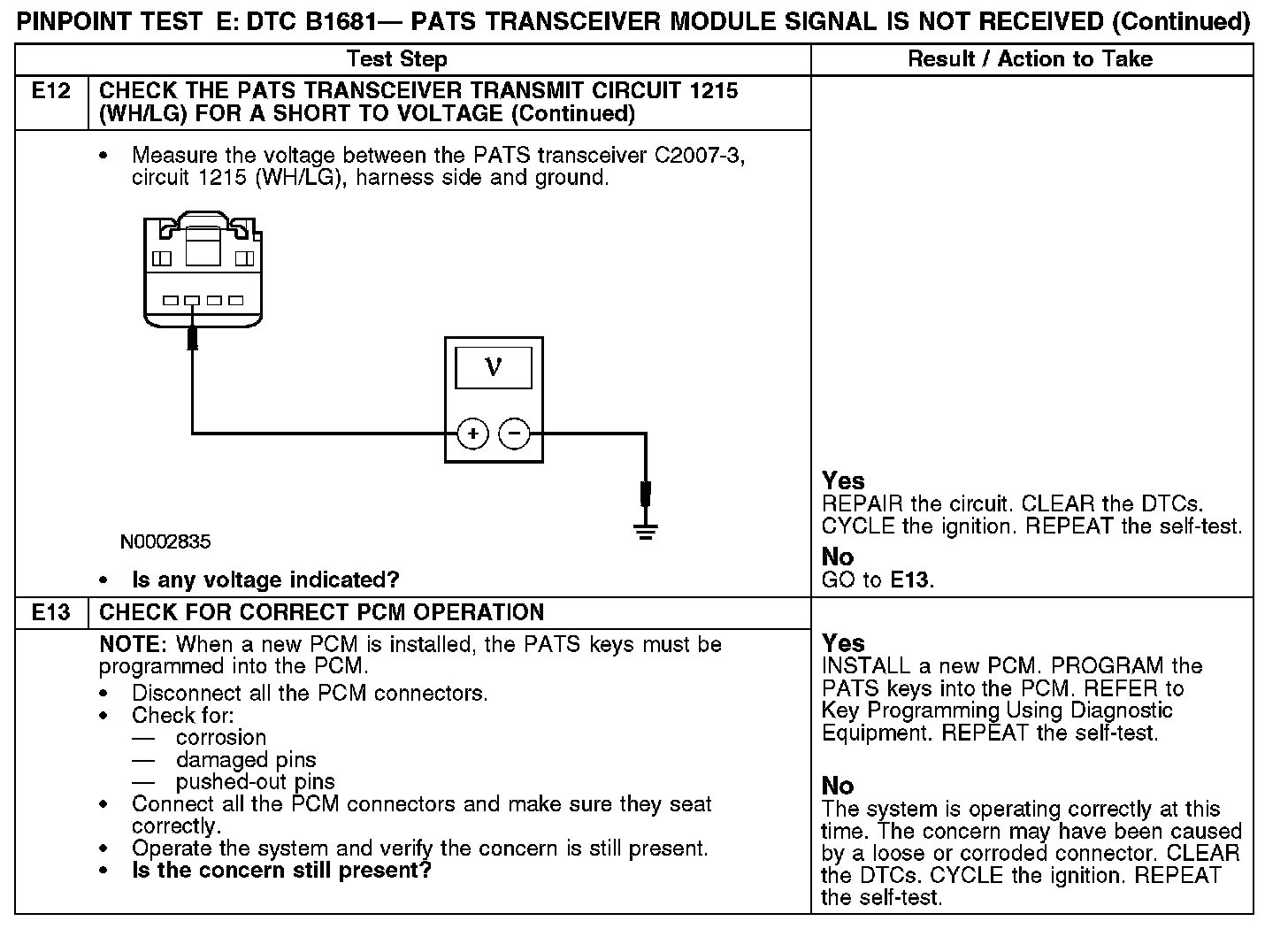

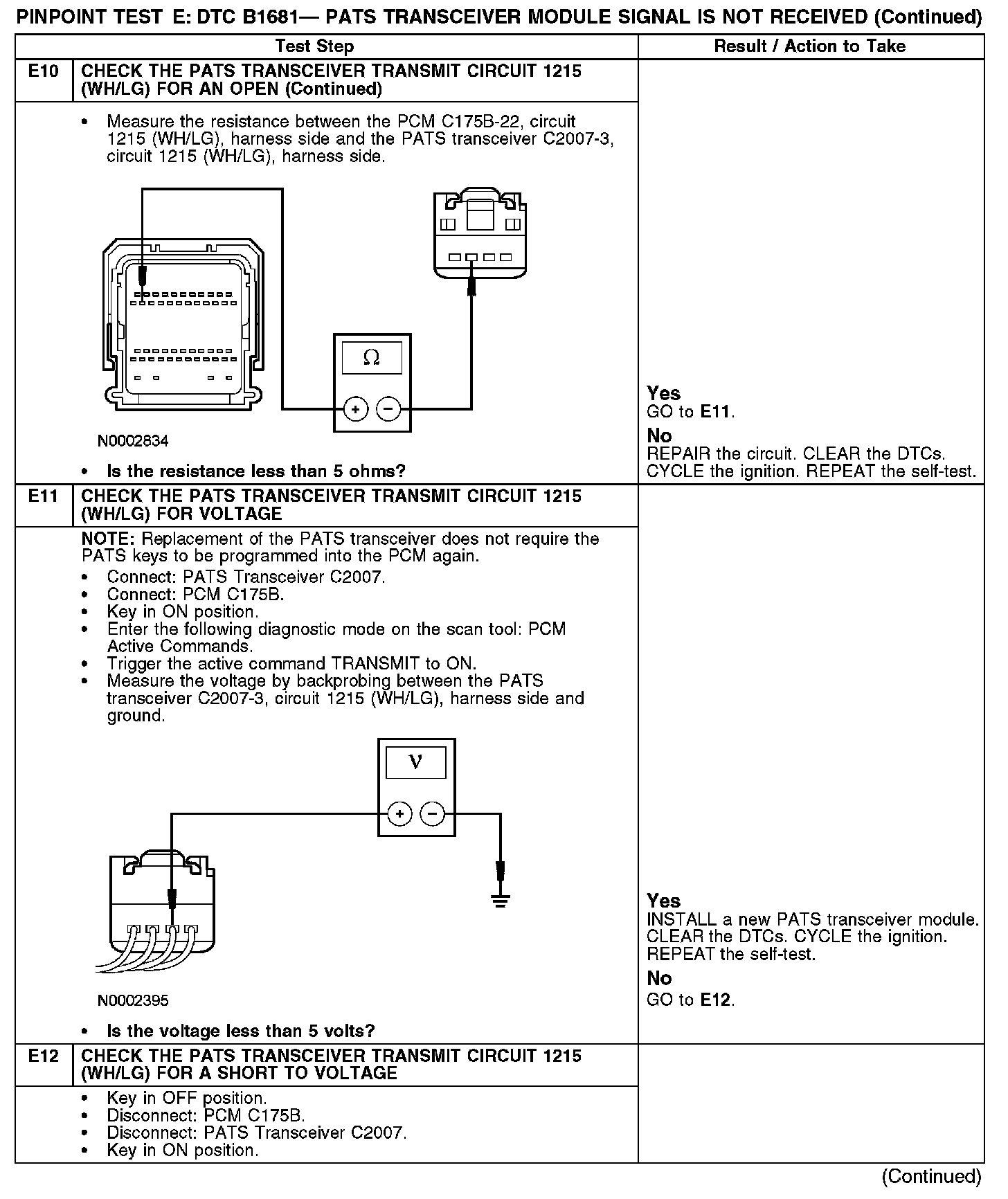

E10-E12:

E12-E13:

Normal Operation
The passive anti-theft system (PATS) transceiver receives voltage from the central junction box (CJB) fuse 24 (10A) on circuit 1266 (RD/YE) and is grounded on circuit 676 (PK/OG). The PATS transceiver and the powertrain control module (PCM) communicate on circuits 1215 (WH/LG) and 1216 (GY/OG). The PCM compares the key code stored in memory and enables the starter if the key code is correct.

DTC B1681 - sets when the PATS transceiver signal is not received by the PCM. This DTC can be caused by circuits to the PATS transceiver, circuits between the PATS transceiver and the PCM, the PATS transceiver or the PCM.

Possible Causes
- Fuse
- Circuit 676 (PK/OG) open
- Circuit 1215 (WH/LG) open, short to ground or voltage
- Circuit 1216 (GY/OG) open, short to ground
- Circuit 1266 (RD/YE) open, short to ground or voltage
- PATS key
- PATS transceiver
- PCM
