Halfshaft Seal - RH

Halfshaft Seal - RH

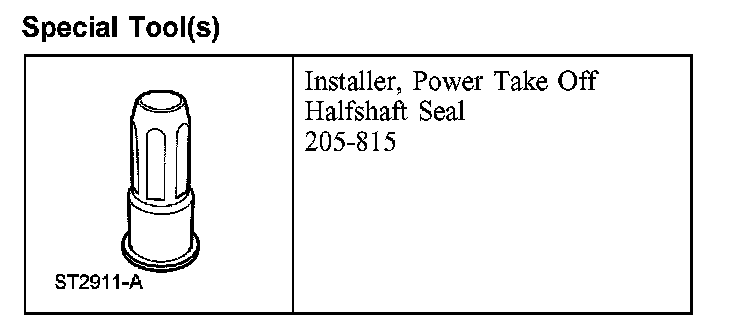

Special Tool(s):

Removal
1. Remove the RH halfshaft.

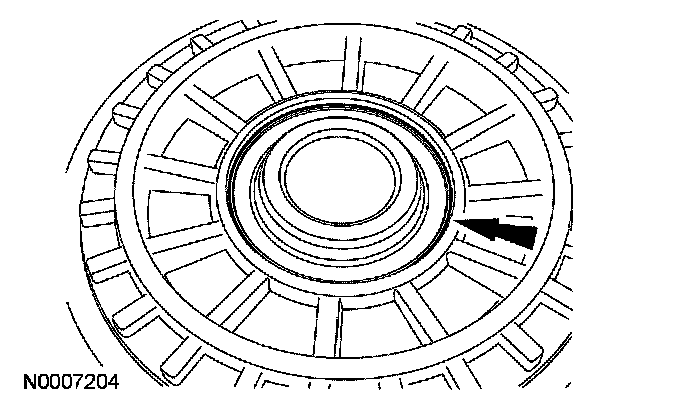

2. Remove and discard the halfshaft seal.

Installation

1. CAUTION: Make sure the halfshaft seal, the halfshaft seal bore and the halfshaft are clean and dry. Do not oil the halfshaft seal or leakage will occur.

NOTE: Always install a new halfshaft seal.

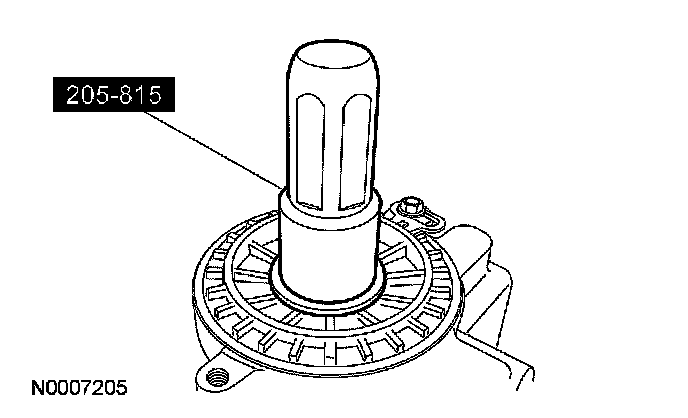

Using the special tool, install a new halfshaft seal.
2. Install the RH halfshaft.
