Rear Axle Housing Support Insulator

Rear Axle Housing Support Insulator

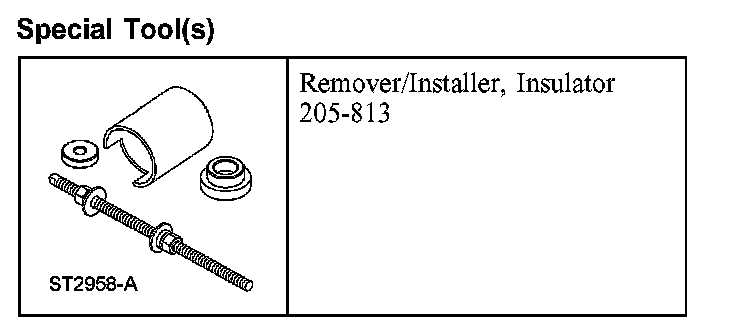

Special Tool(s):

Removal
1. Remove the axle assembly.

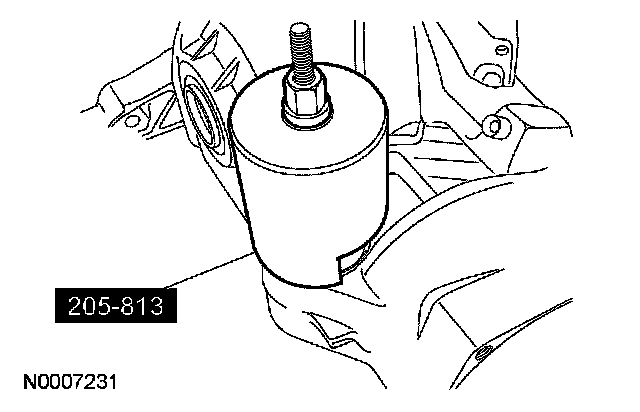

2. Using the special tool, remove the rear axle housing support insulator.

Installation

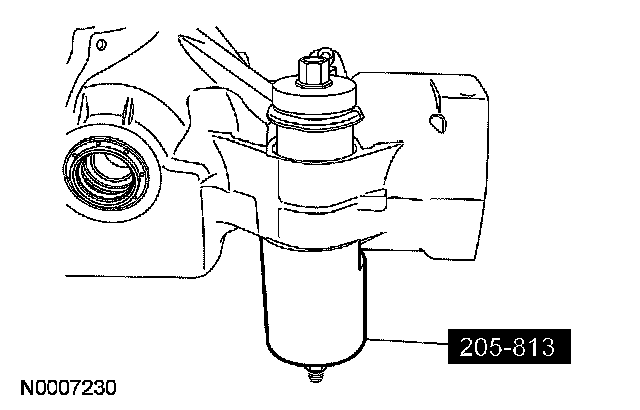

1. Using the special tool, install the rear axle housing support insulator.
2. Install the axle assembly.
