Drive Pinion Flange and Drive Pinion Seal

Drive Pinion Flange and Drive Pinion Seal

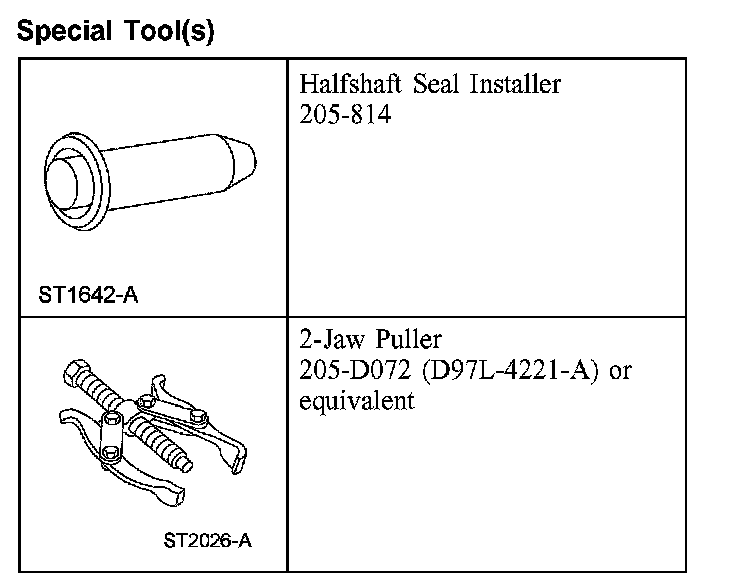

Special Tool(s):

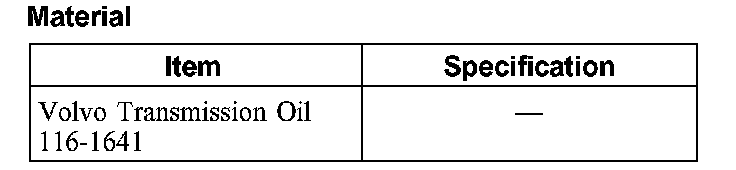

Material:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the driveshaft.

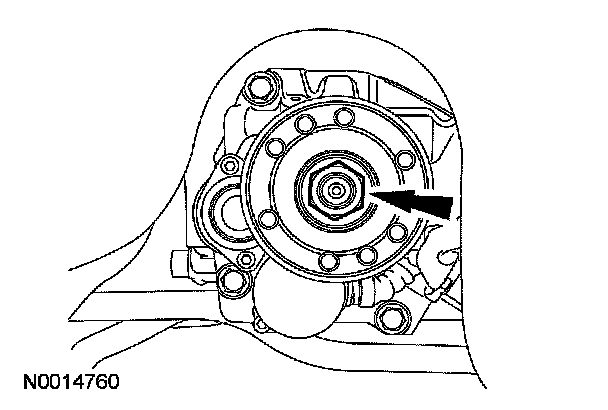

3. Remove and discard the drive pinion flange nut.

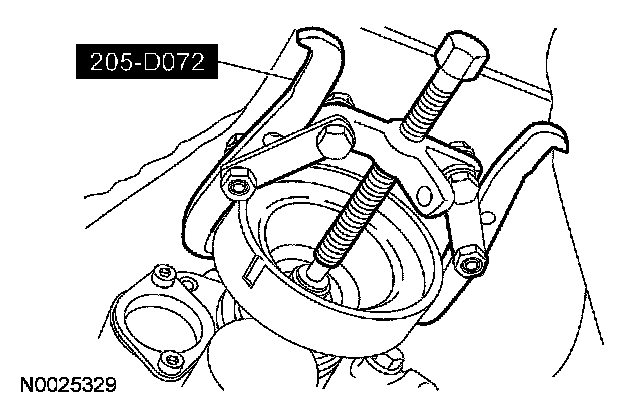

4. Using the special tool, remove the drive pinion flange.





5. Remove and, if necessary, discard the drive pinion seal.

Installation

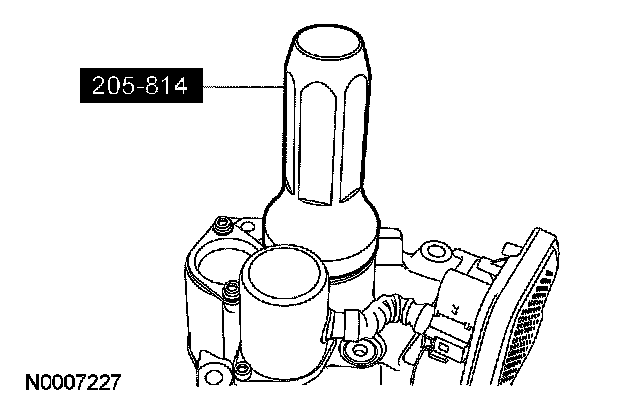

1. Using the special tool, install a new drive pinion seal.

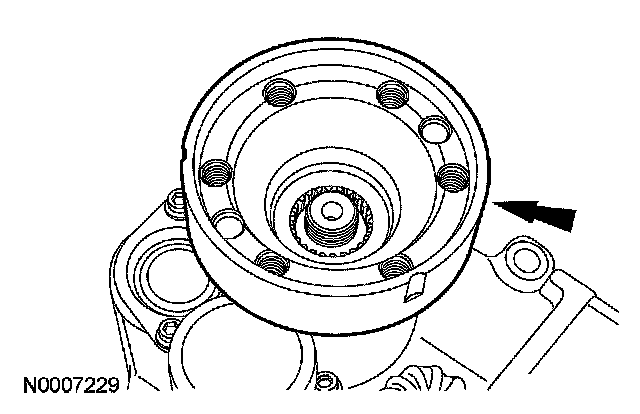

2. Install the drive pinion flange.

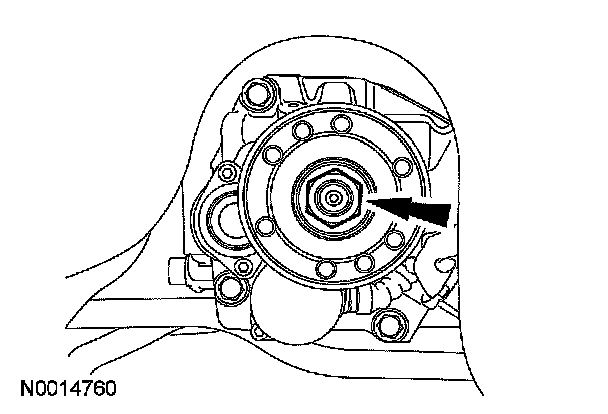

3. Install a new drive pinion flange nut.
^ Tighten to 100 Nm (74 ft. lbs.).
4. Install the driveshaft assembly.
