Scan Tool Testing and Procedures

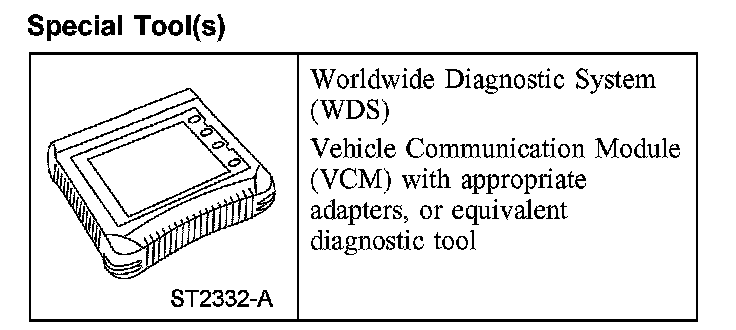

Special Tool(s):

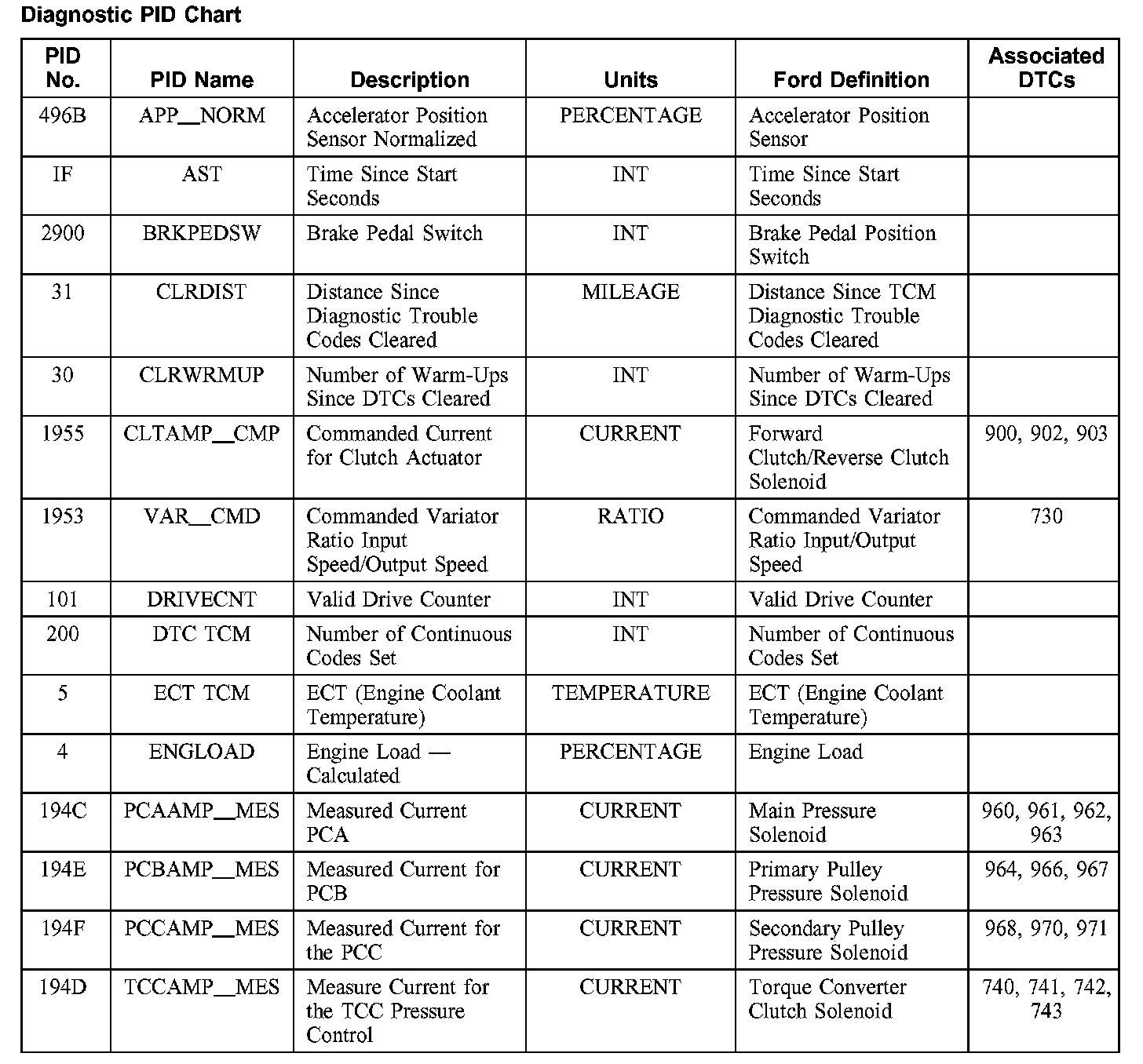

Diagnostic PID Chart (Part 1):

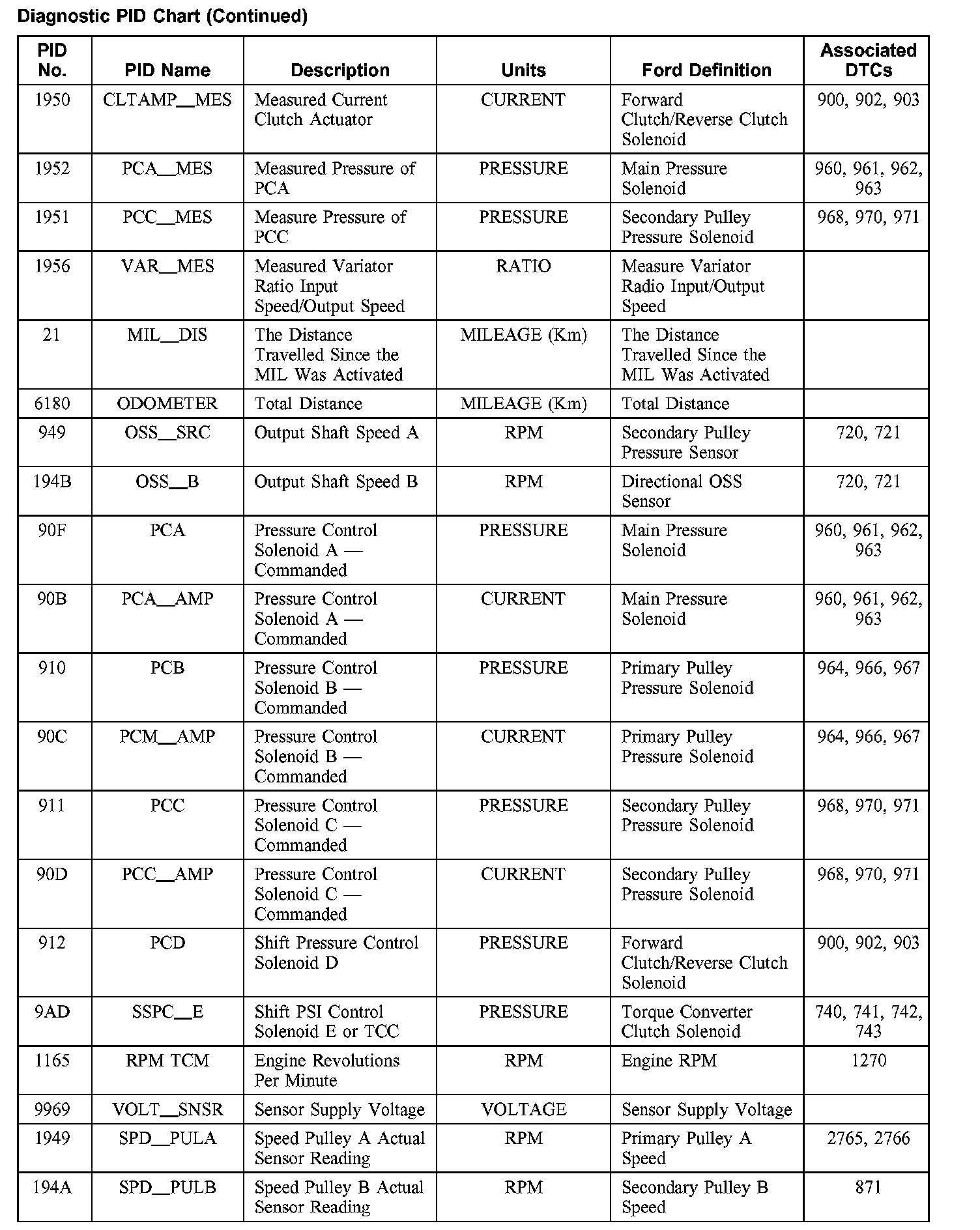

Diagnostic PID Chart (Part 2):

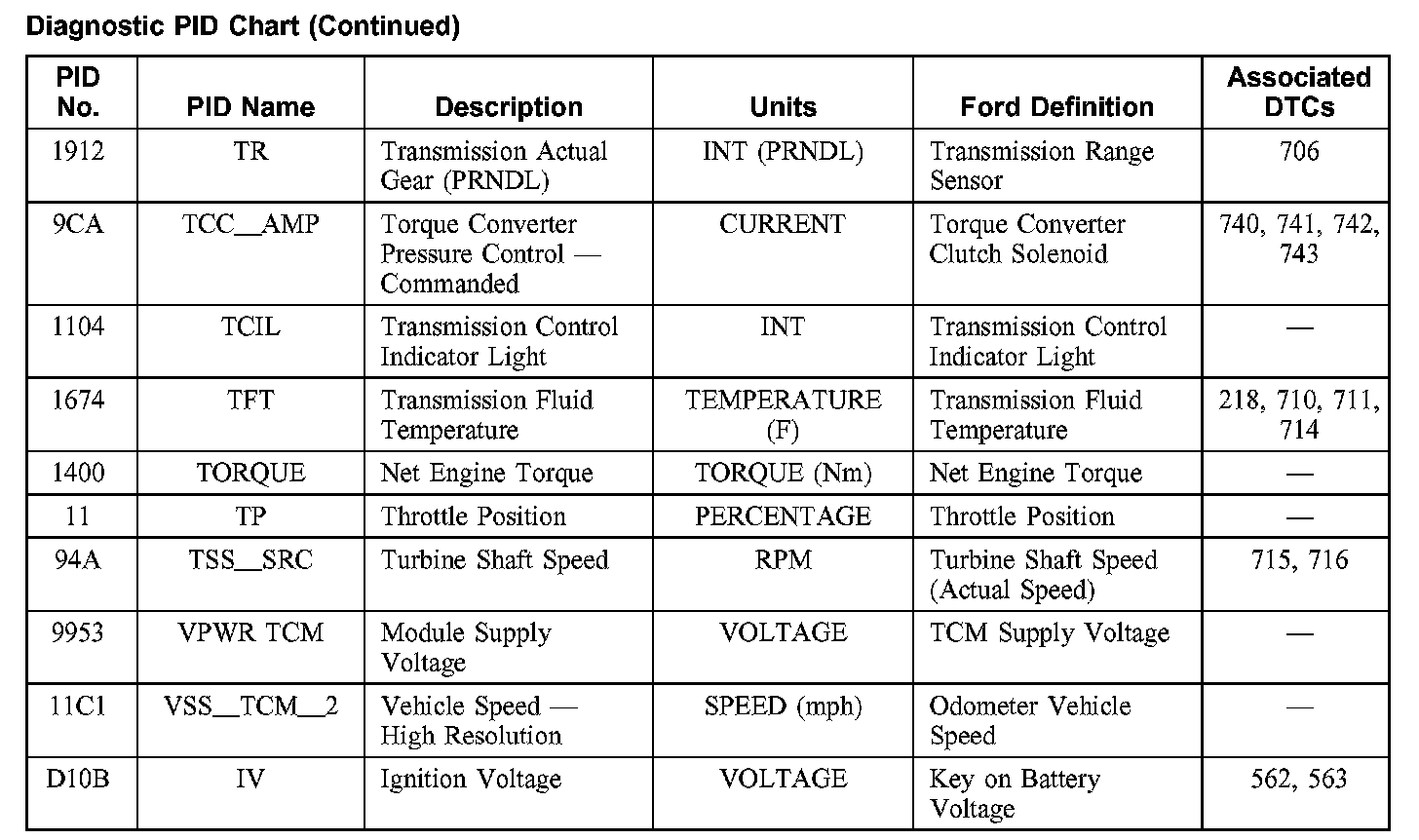

Diagnostic PID Chart (Part 3):
