Home >> Mercury >> 2006 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> Test B: Transmission Fluid Temperature (TFT) Sensor

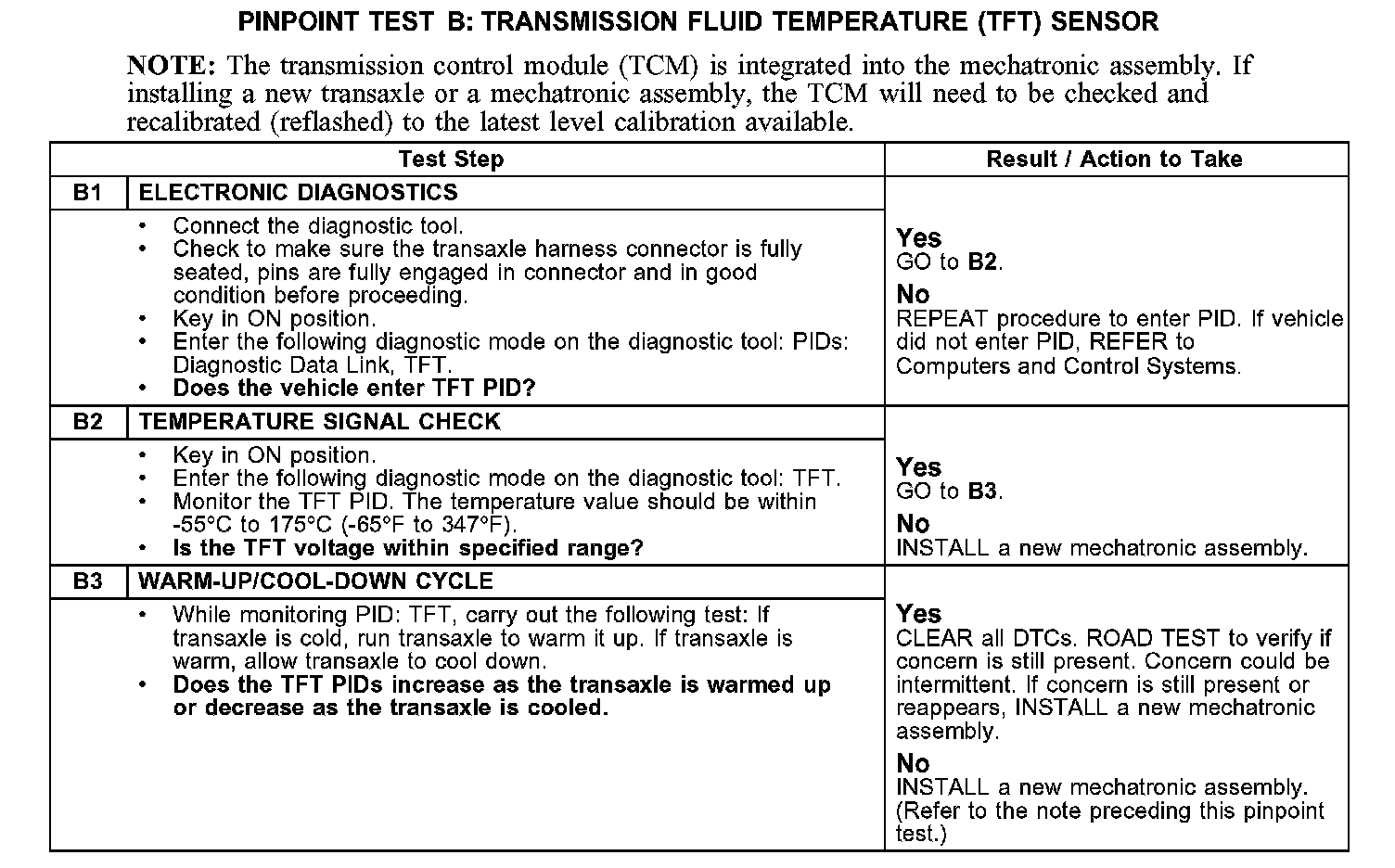

Test B: Transmission Fluid Temperature (TFT) Sensor

B1-B3:
