Test A: Transmission Fluid Pressure Sensors

Pinpoint Tests - Non OSC Equipped Vehicles

Special Tool(s):

Any time an electrical connector or solenoid body is disconnected, inspect the connector for pin condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or install a new connector as required.

Prior to carrying out the pinpoint tests check:
^ Transmission fluid level
^ Transmission fluid condition (burned, metal particles or discolored)
^ Engine cooling system
^ Other non-related transaxle DTC

Pinpoint Test A: Transmission Fluid Pressure Sensors

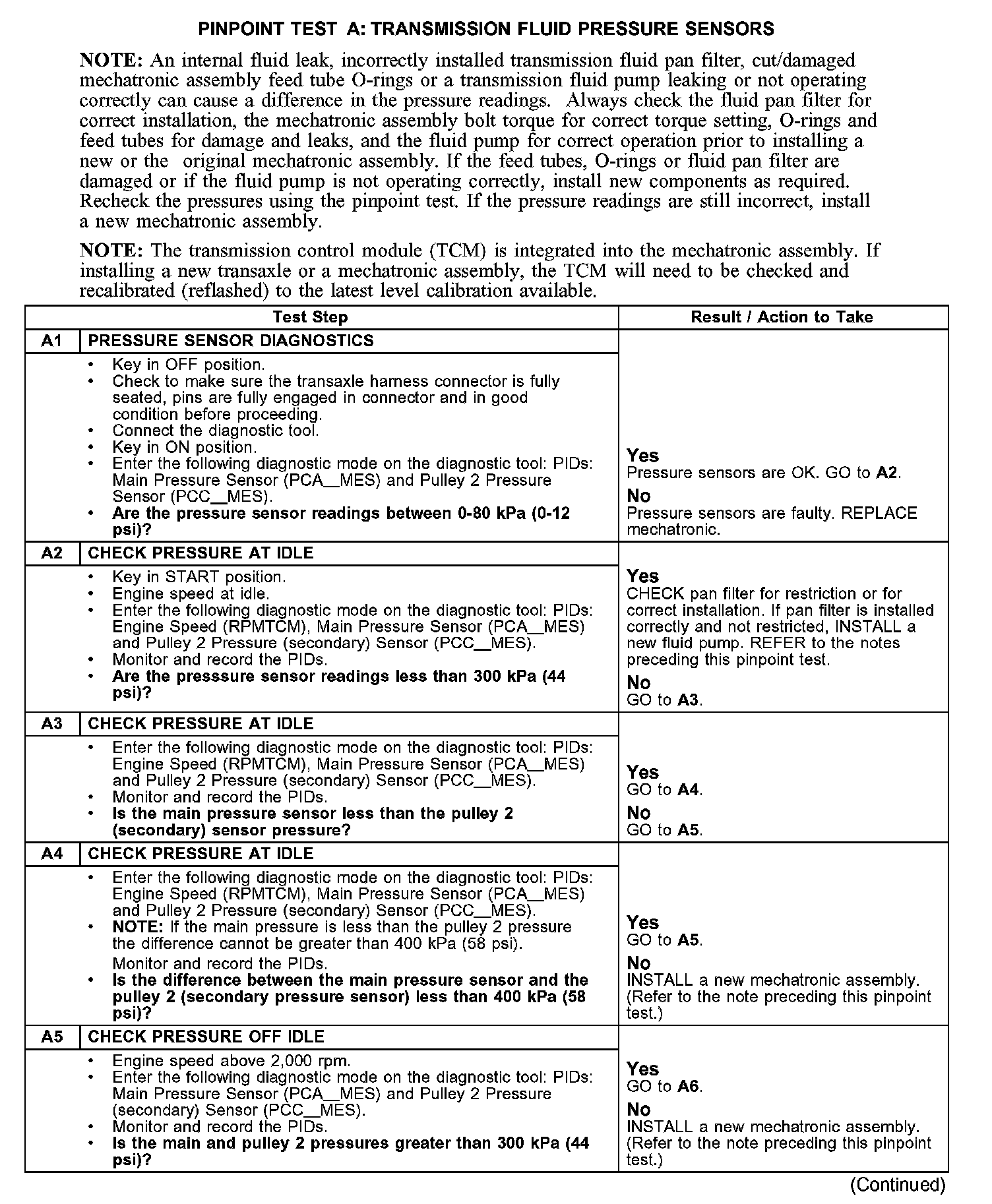

A1-A5:

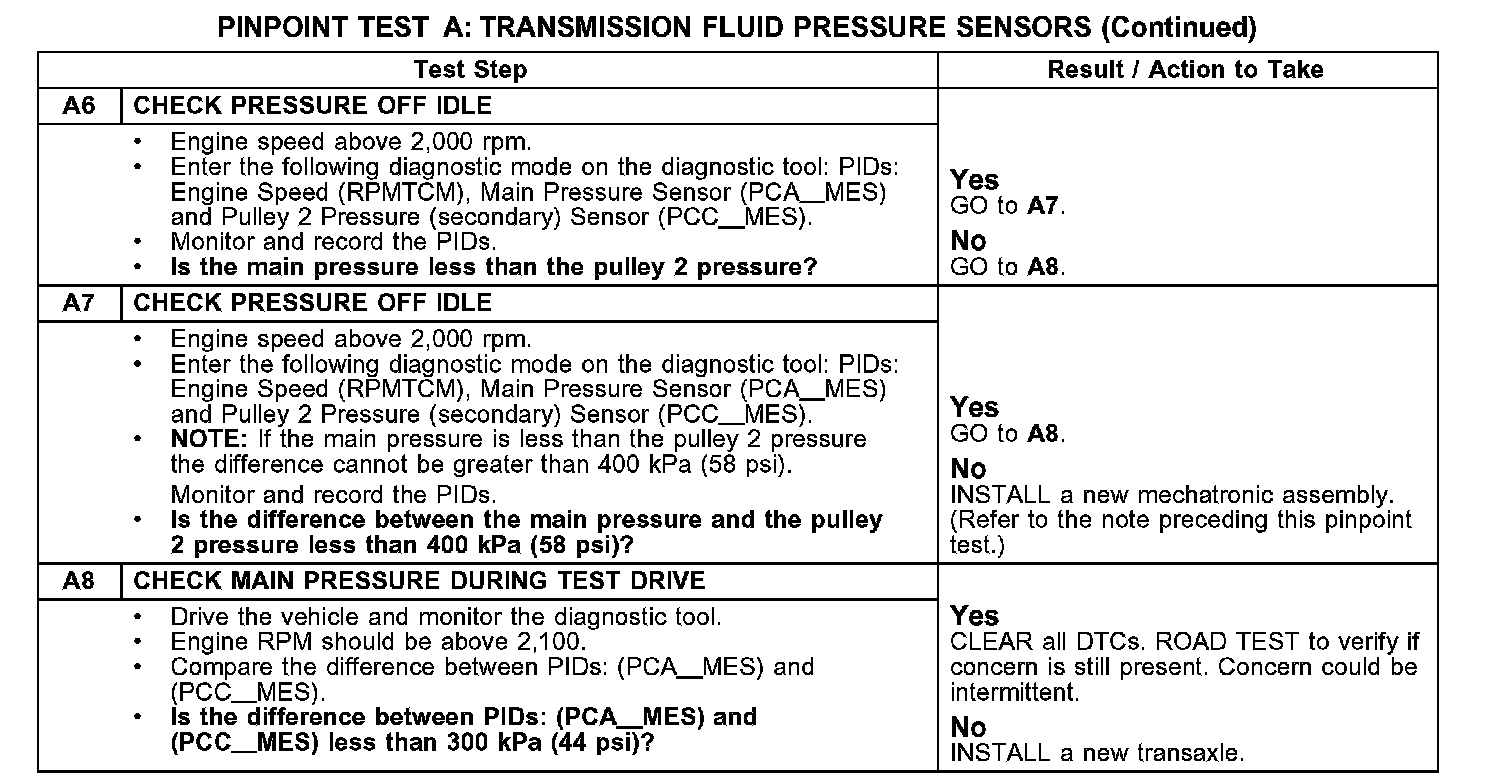

A6-A8:
