Transmission Fluid Drain and Refill

Transmission Fluid Drain and Refill

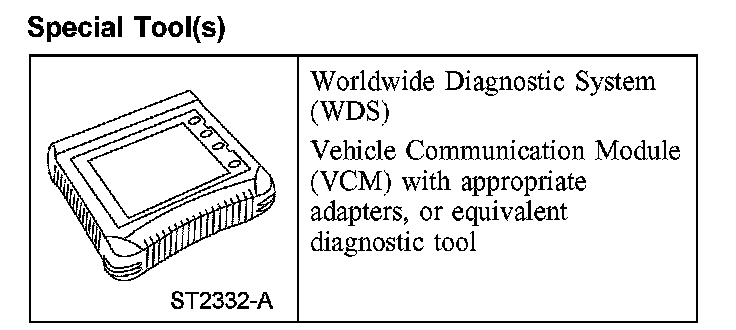

Special Tool(s):

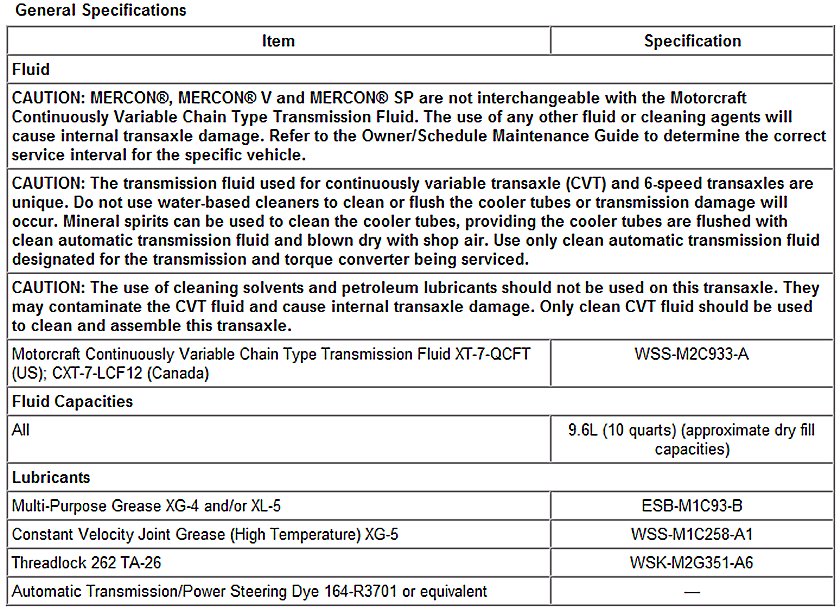

Specifications:

Draining

CAUTION: MERCON, MERCON, MERCON SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other than what is recommended for this transmission will cause transmission damage.

NOTE: Install a new high-pressure case filter when changing the transmission fluid.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

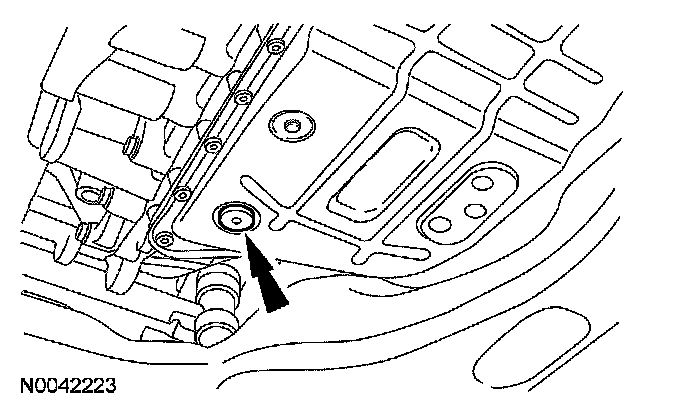

2. Remove the fluid pan drain plug and allow the fluid to drain.

Refill

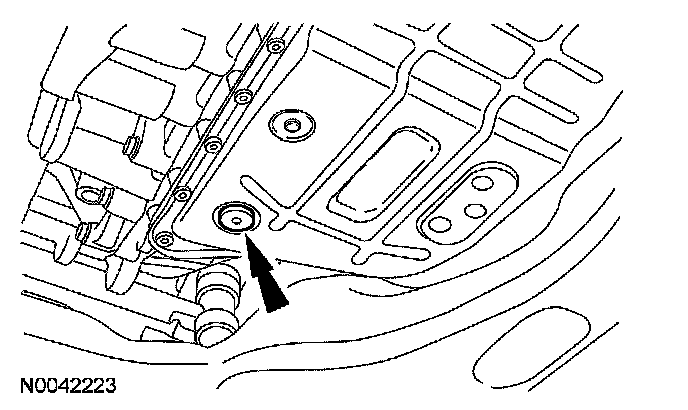

1. Install the fluid pan drain plug.
^ Tighten to 25 Nm (18 ft. lbs.).

2. NOTE: Install a new high-pressure case filter when changing the transmission fluid.

Fill the transaxle with approximately 4.7 L (5 quarts) of clean CVT automatic transmission fluid. Use the transmission fluid level setting procedure to fill the transaxle.
