Transaxle Connector Layouts

Transaxle Connector Layouts

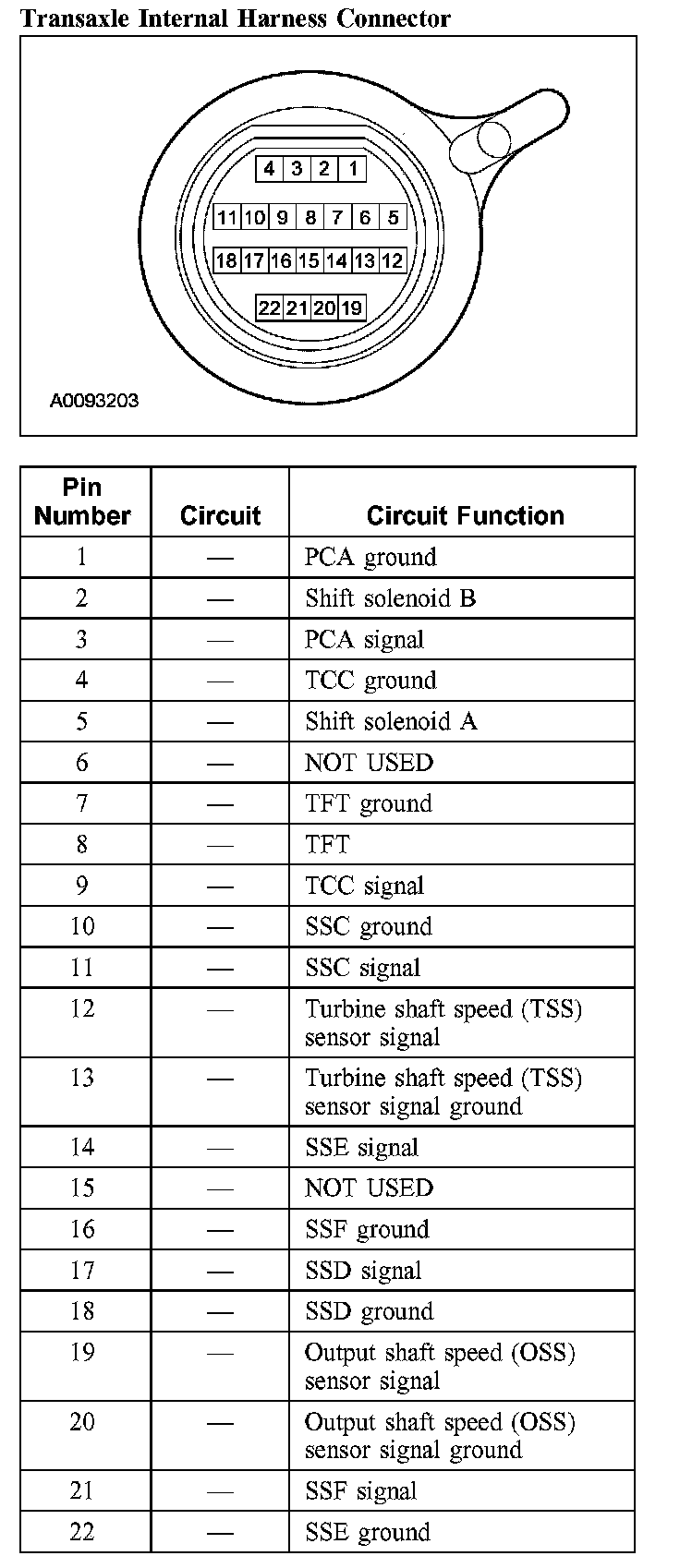

Transaxle Internal Harness Connector:

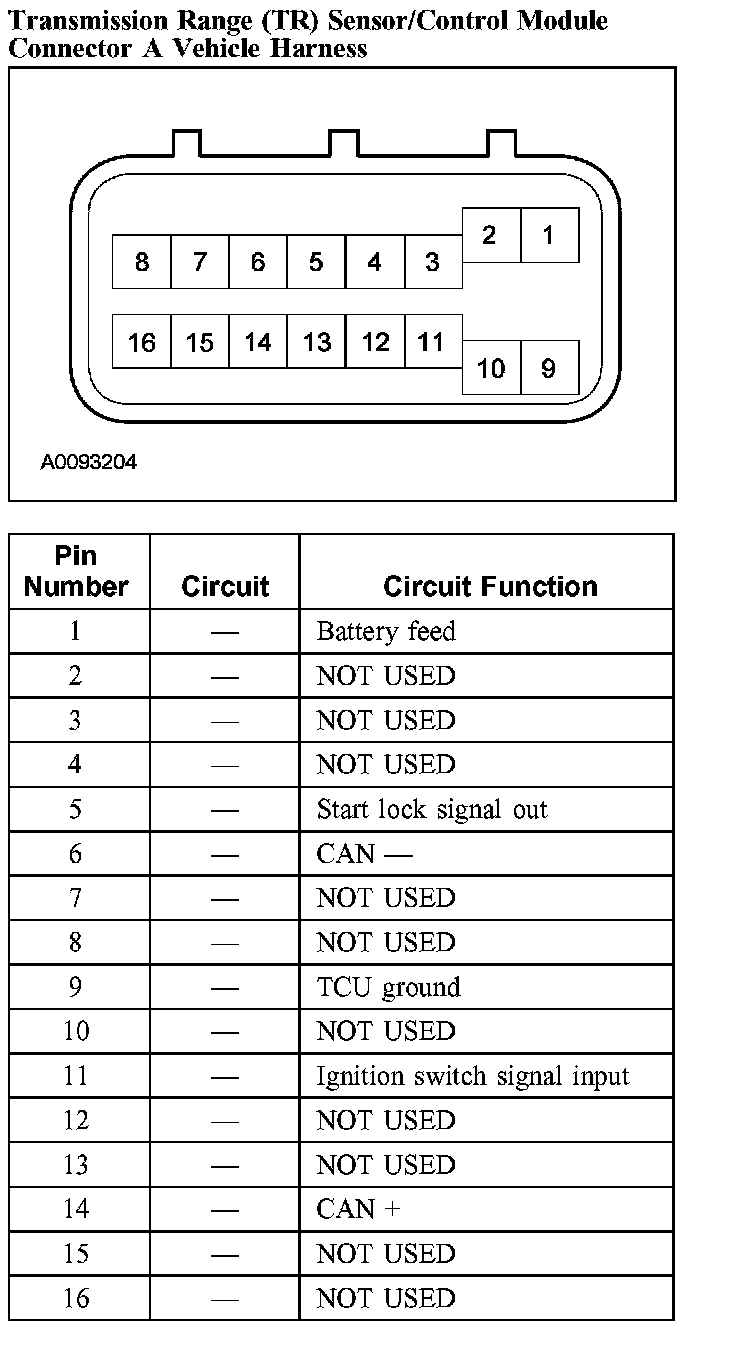

Transmission Range (TR) Sensor/Control Module Connector A Vehicle Harness:

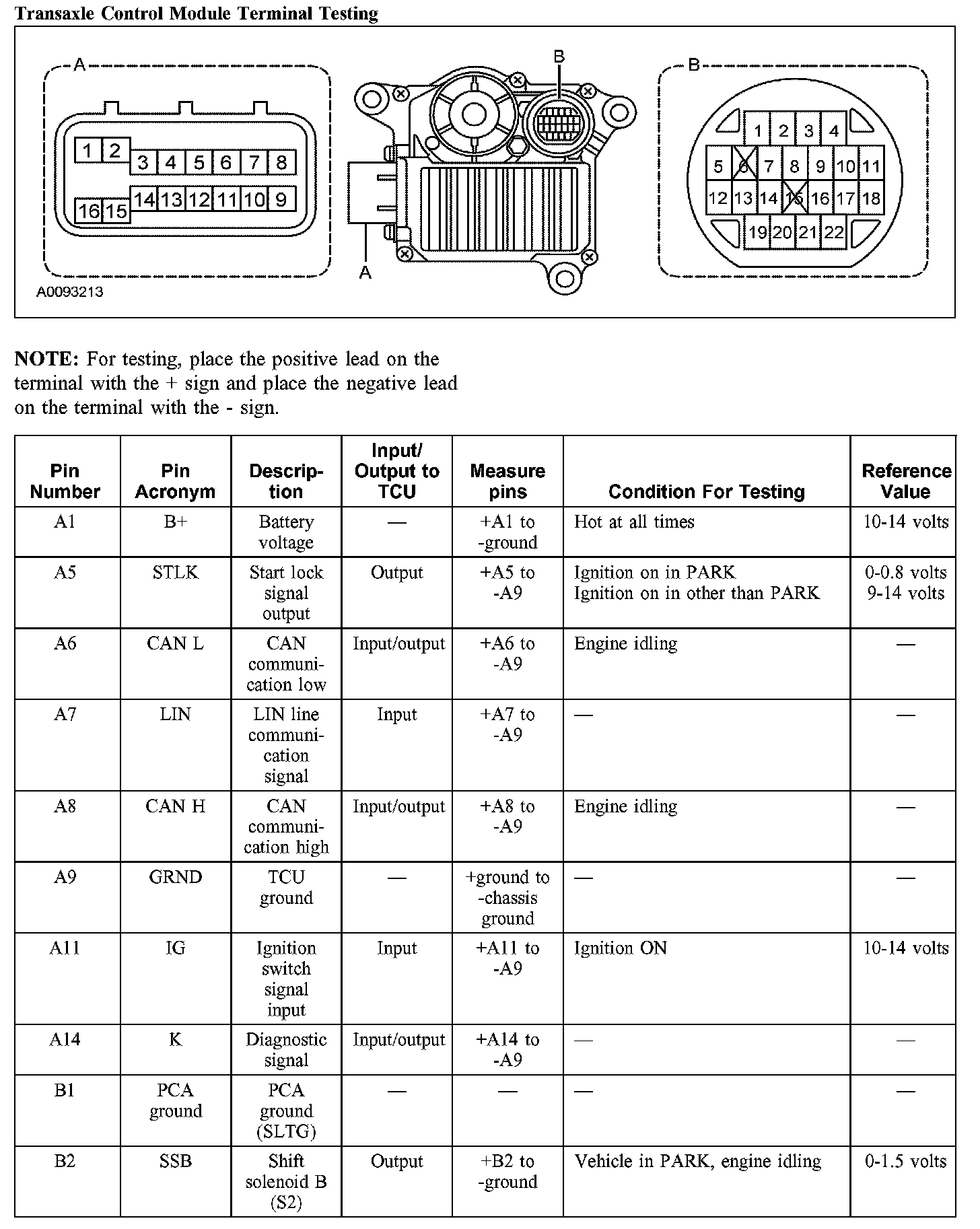

Transaxle Control Module Terminal Testing (Part 1):

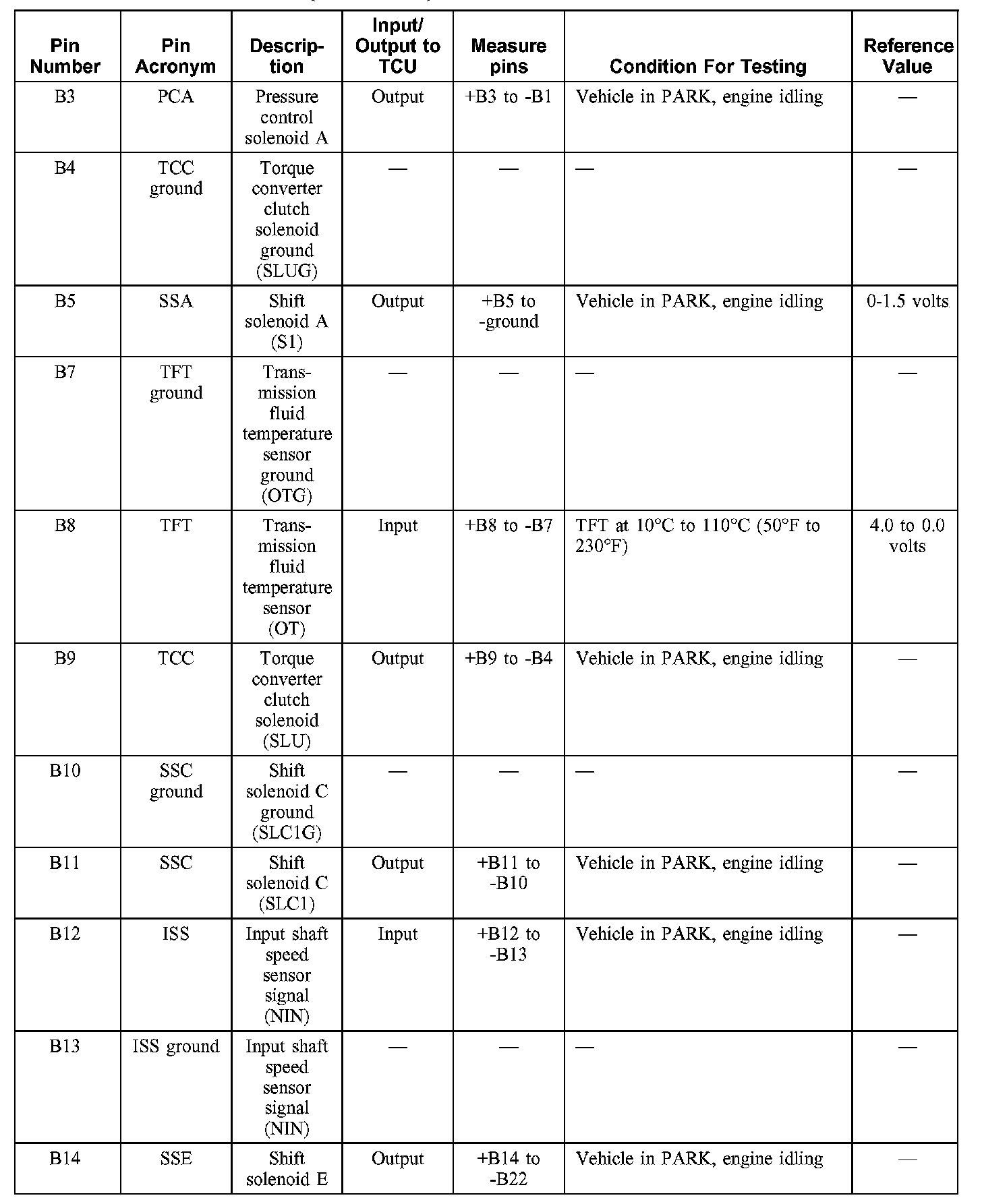

Transaxle Control Module Terminal Testing (Part 2):

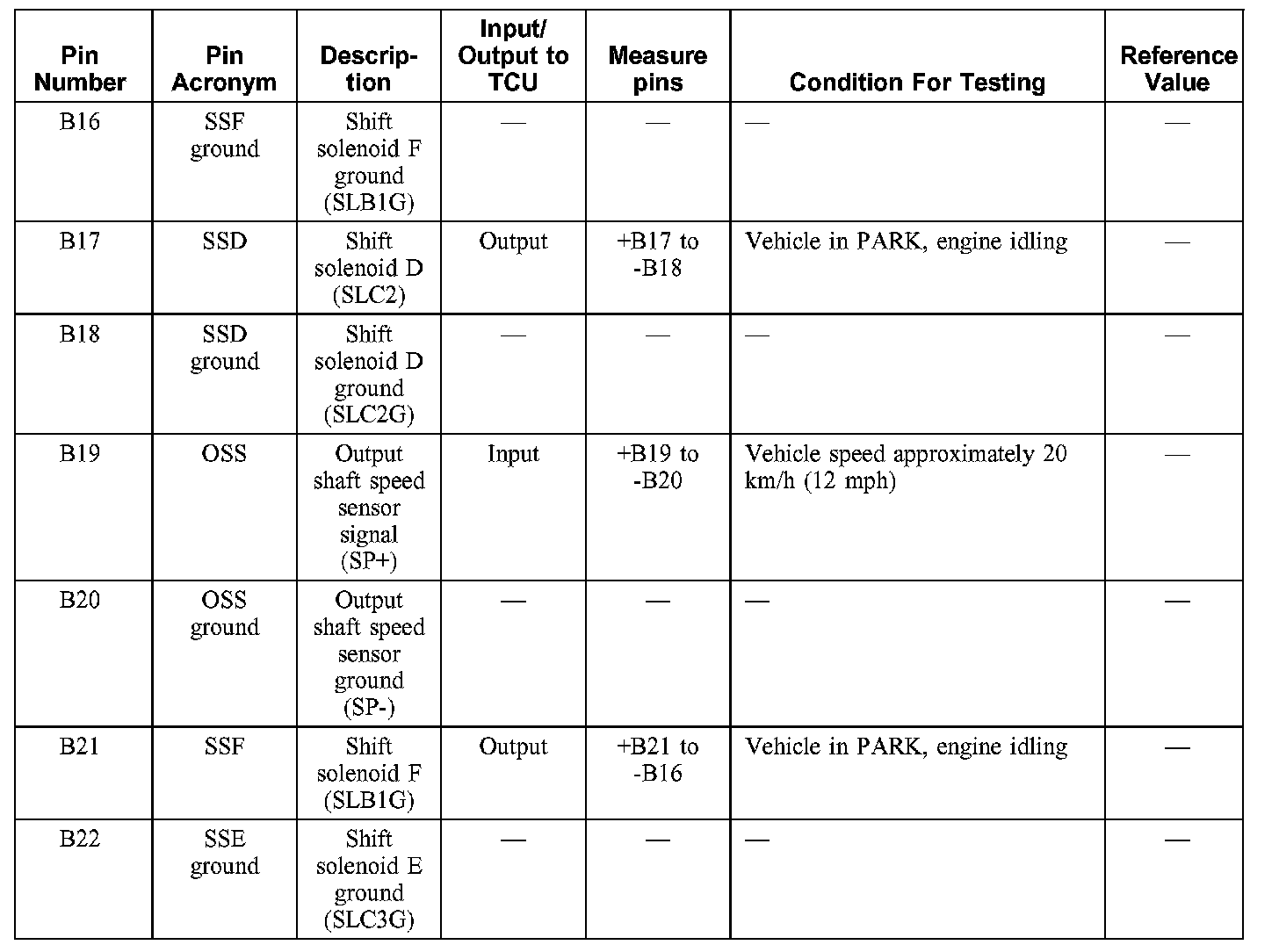

Transaxle Control Module Terminal Testing (Part 3):
