Test A: The Shift Interlock System Does Not Release or Lock Correctly
Test A: The Shift Interlock System Does Not Release or Lock Correctly

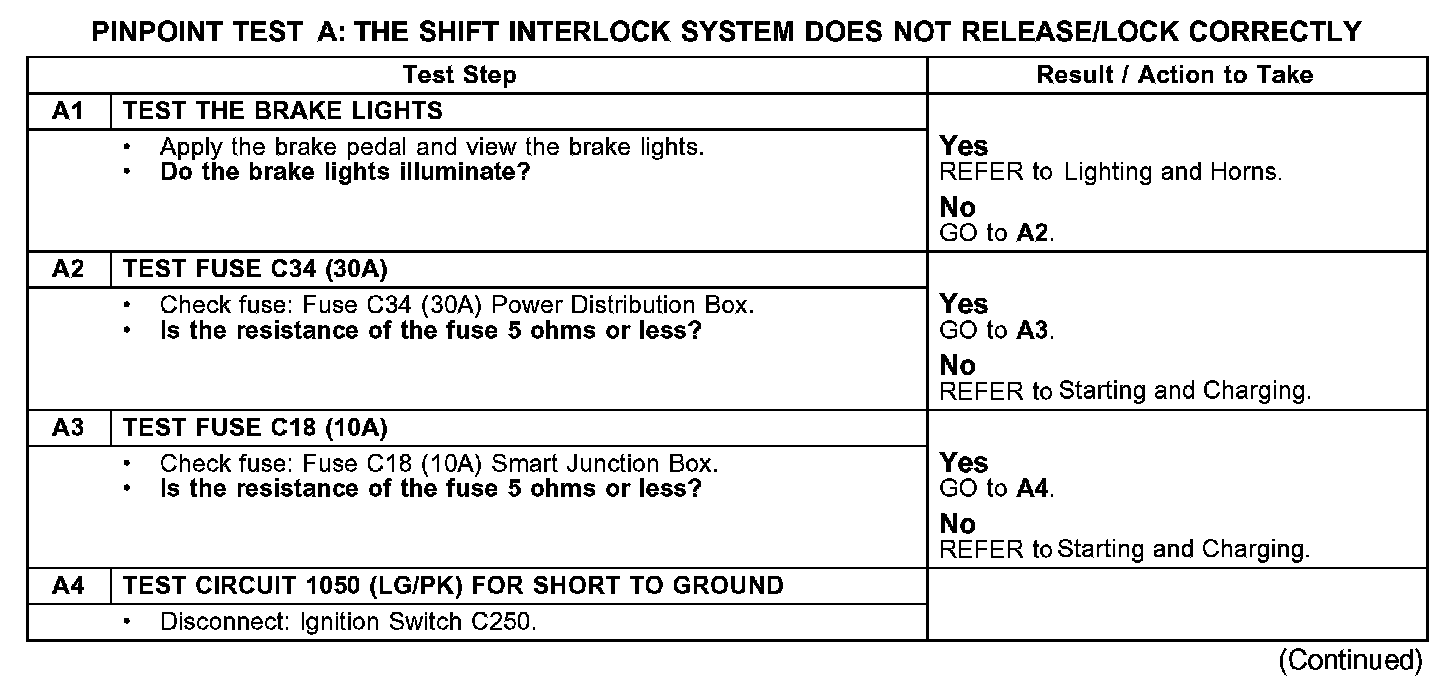

A1-A4:

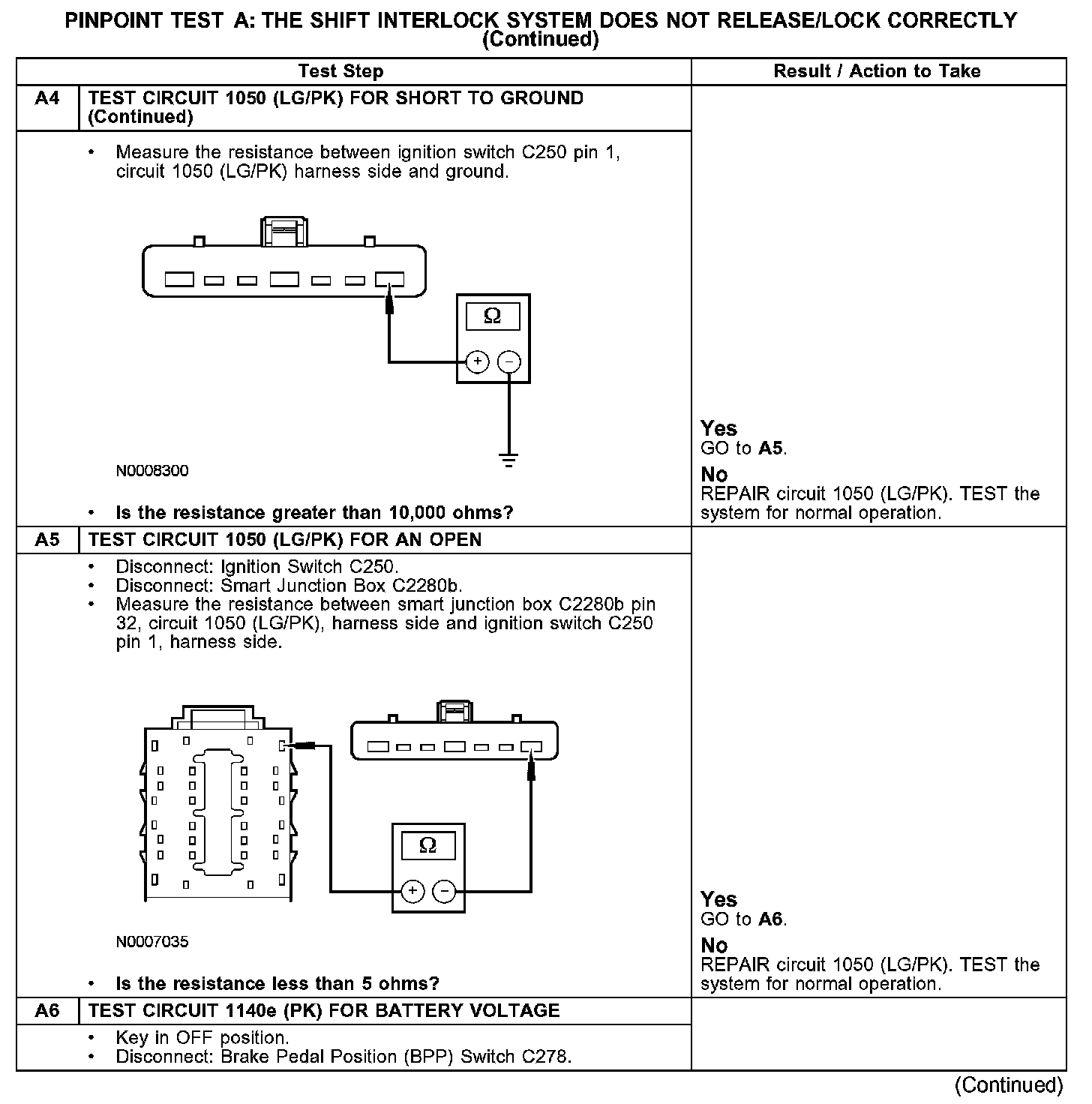

A4-A6:

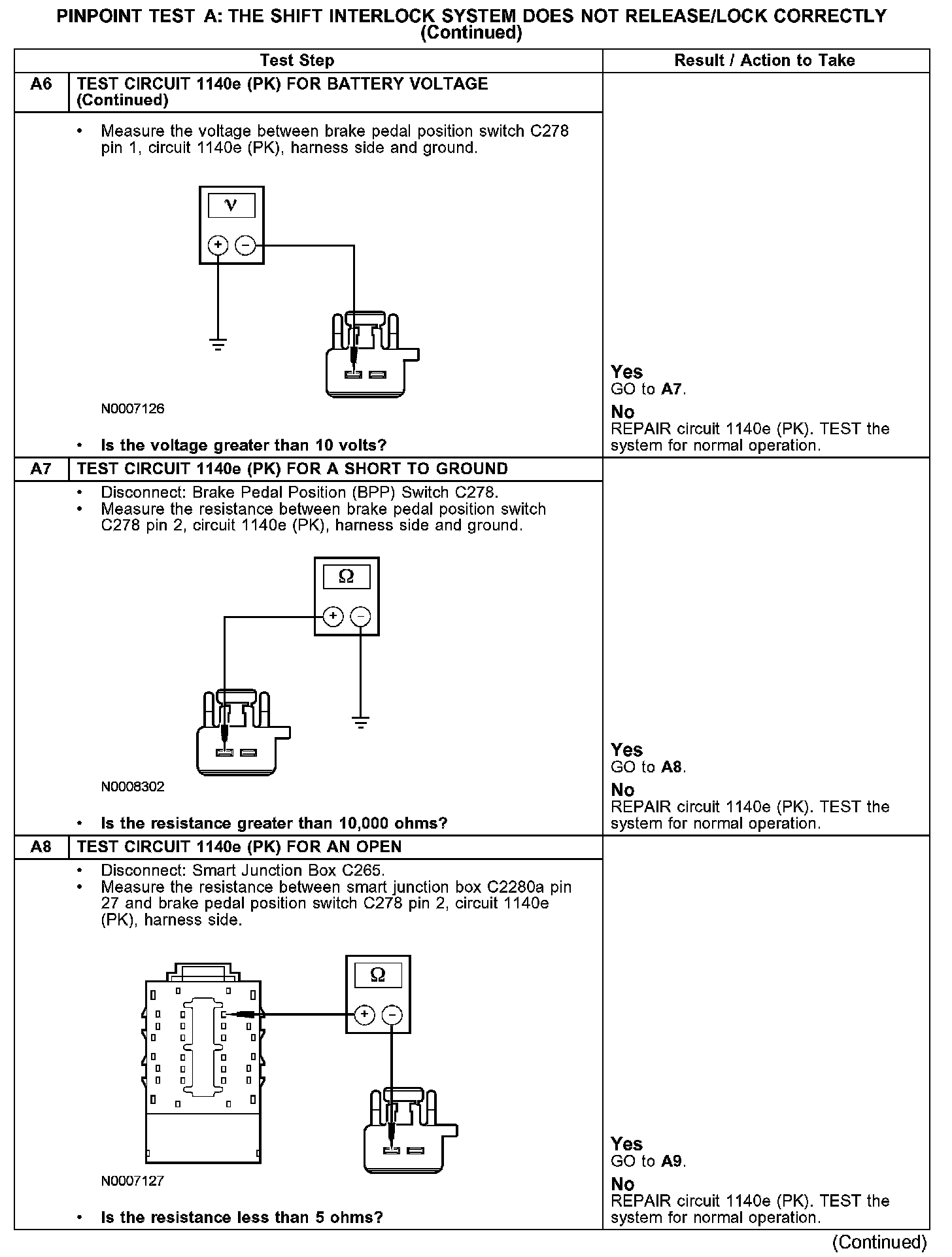

A6-A8:

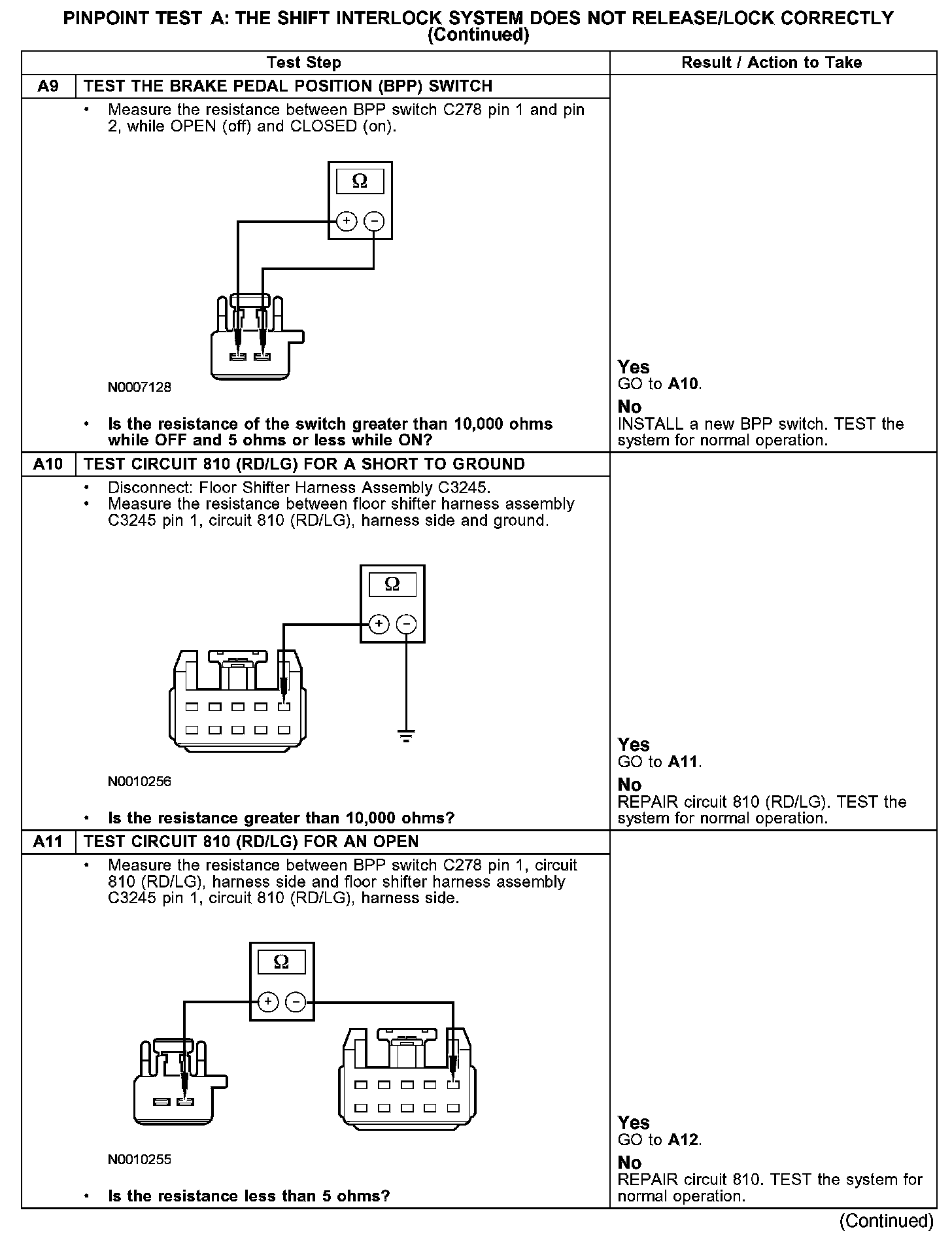

A9-A11:

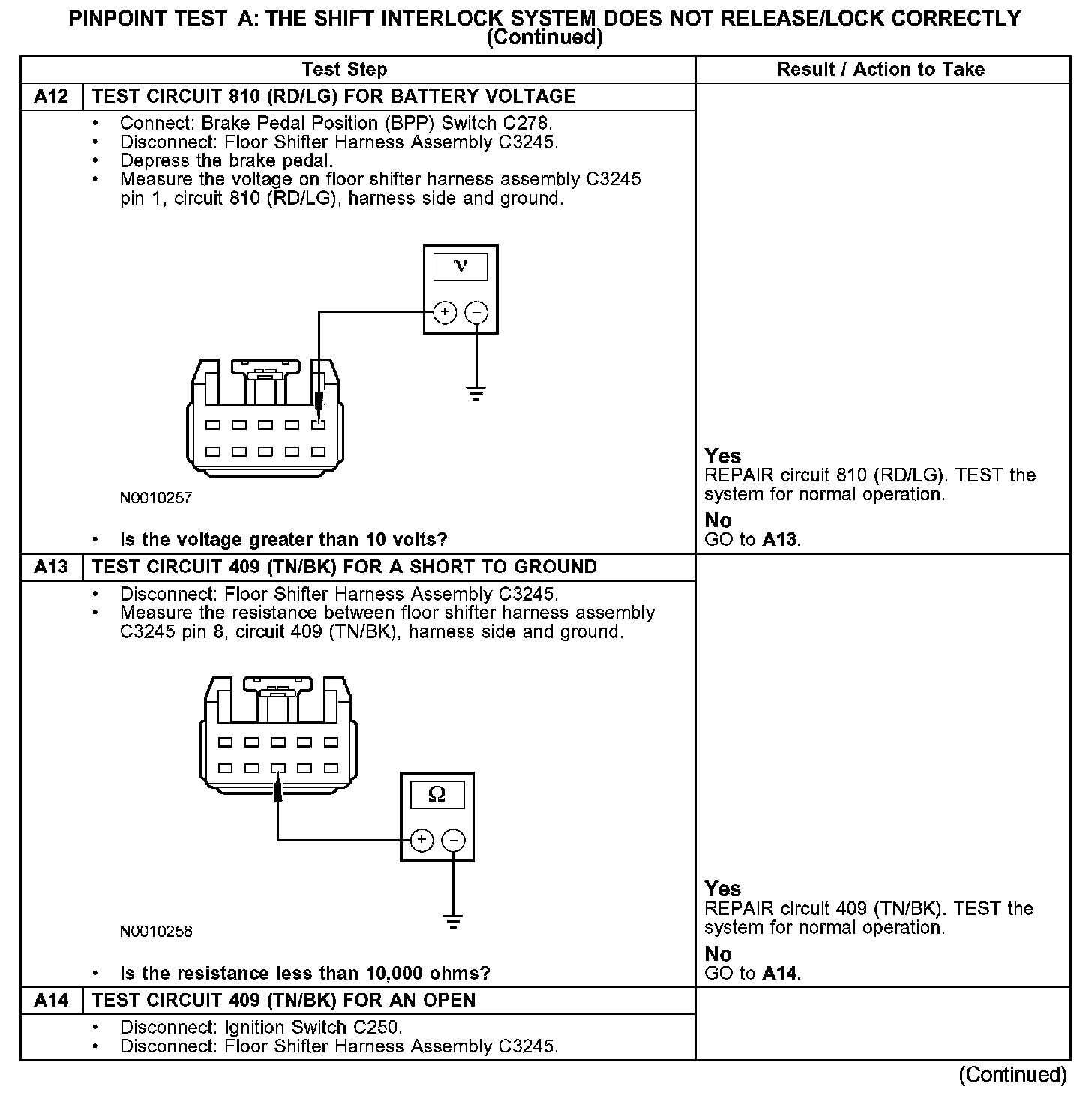

A12-A14:

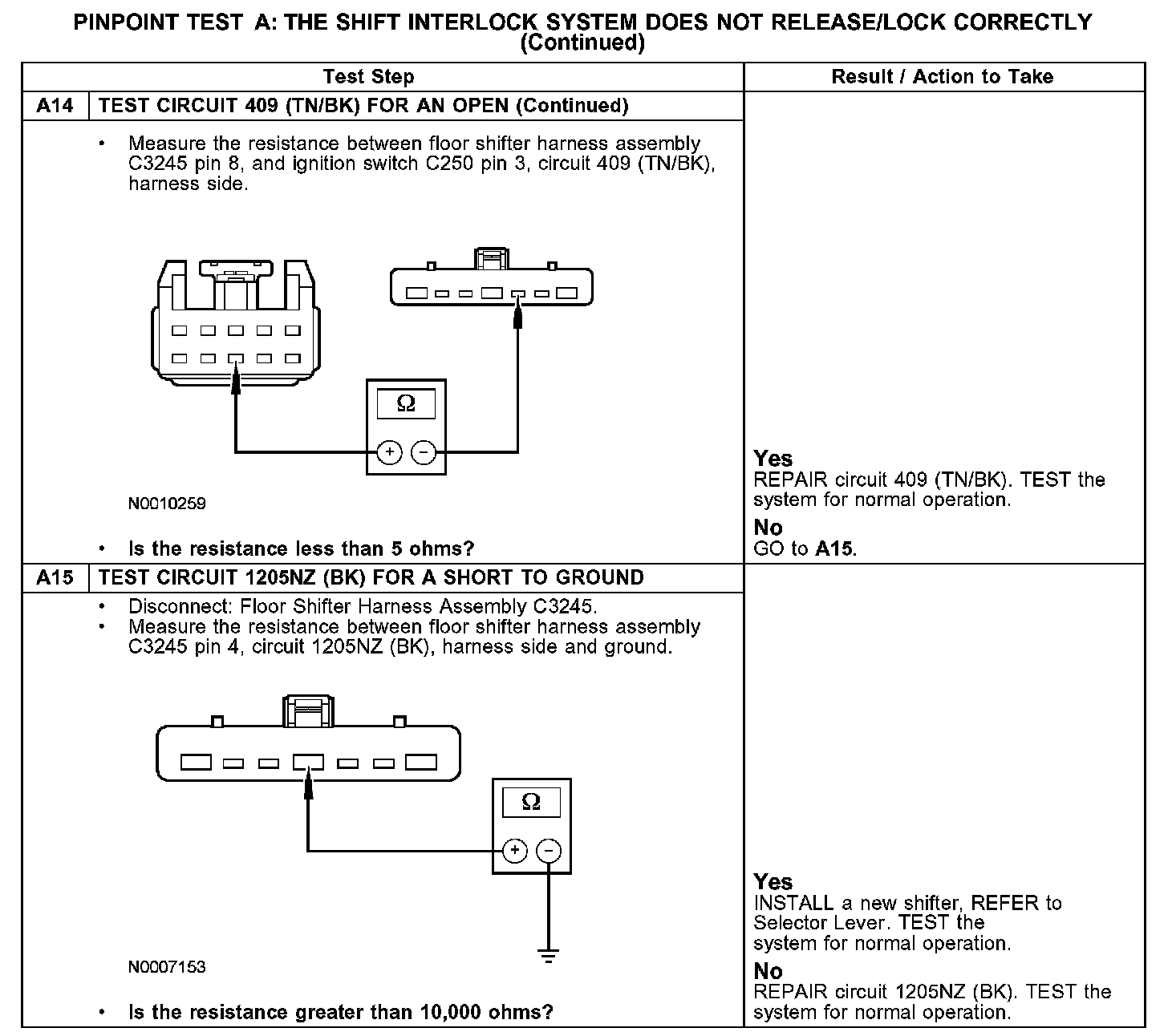

A14-A15:
