Selector Lever

Selector Lever

Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the center console. For additional information, refer to Console.

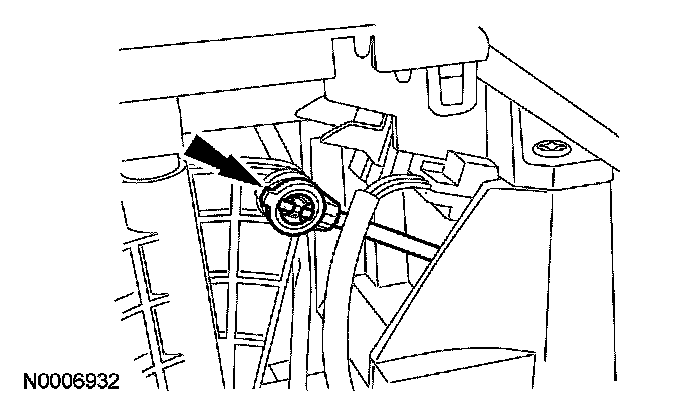

3. Disconnect the selector lever cable end from the selector lever.

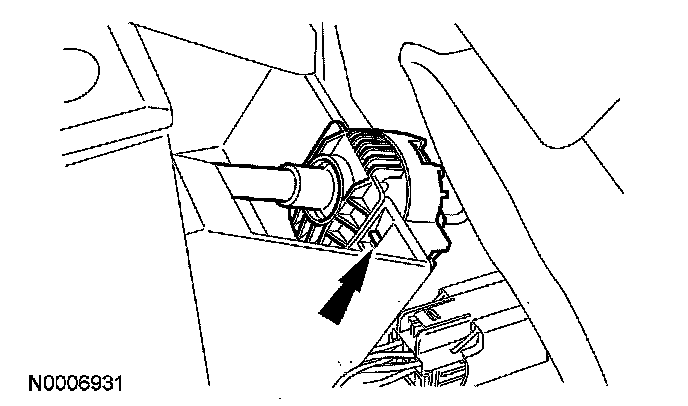

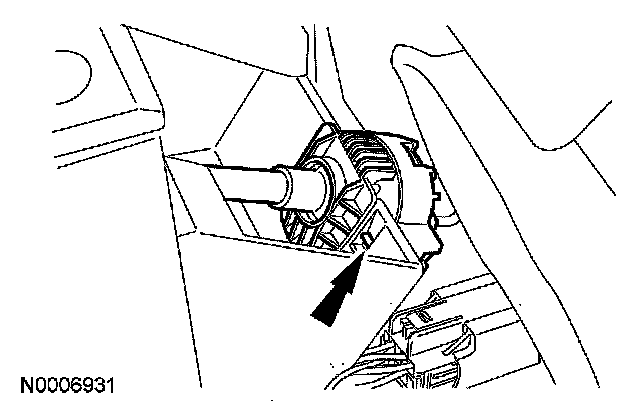

4. Depress the tab on the shift cable connector and lift up on the shift cable to remove it from the housing.

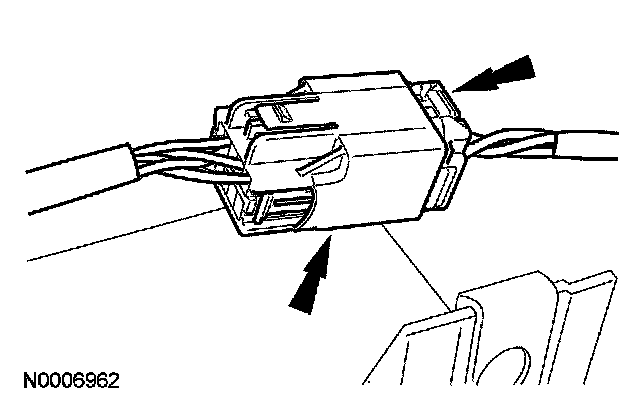

5. Disconnect the electrical connector.

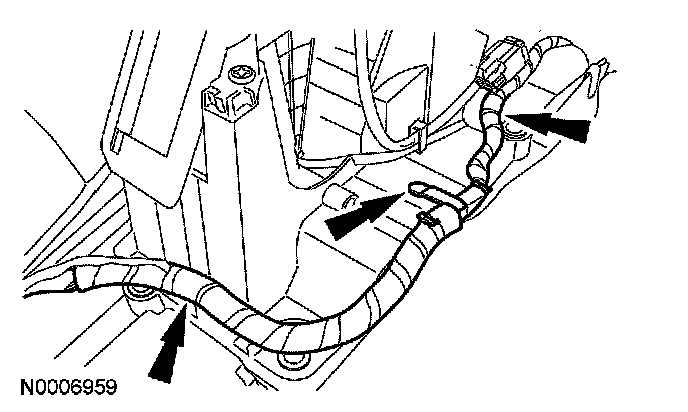

6. Disconnect the wire harness from the shifter in 3 locations.

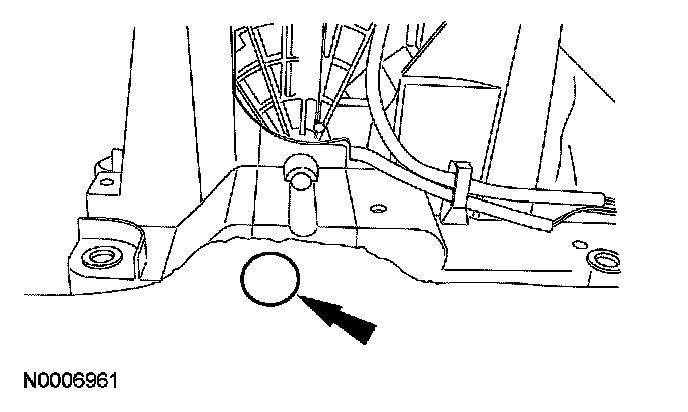

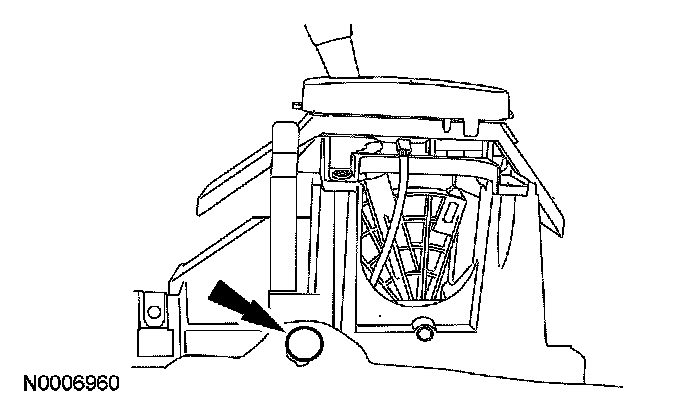

7. Remove the RH plastic retaining clip for the carpet.

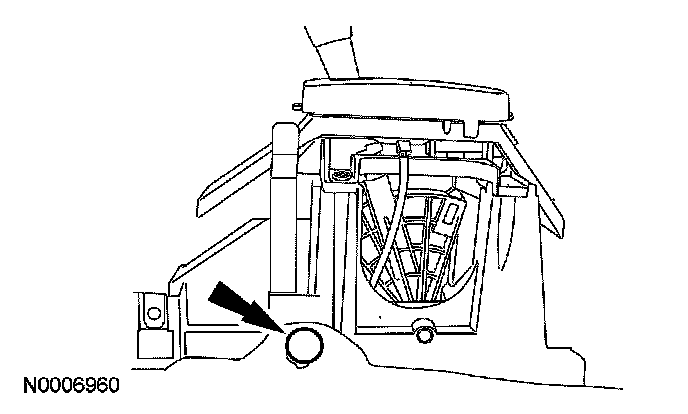

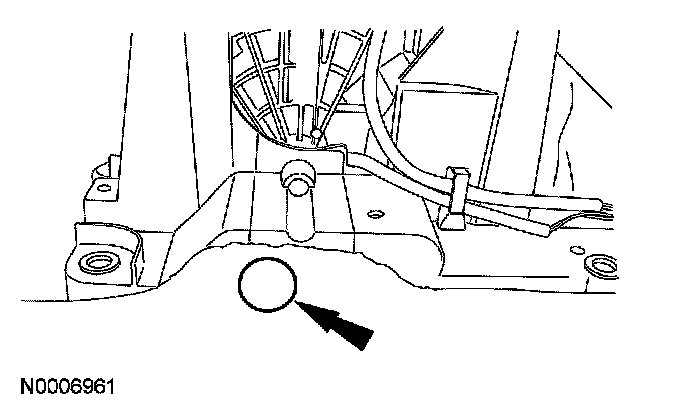

8. Remove the LH plastic retaining clip for the carpet.

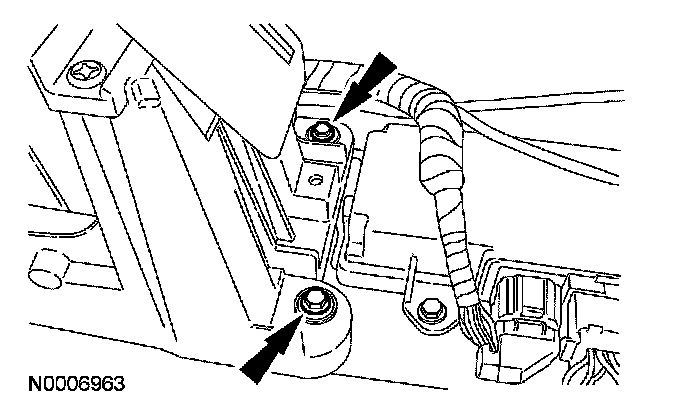

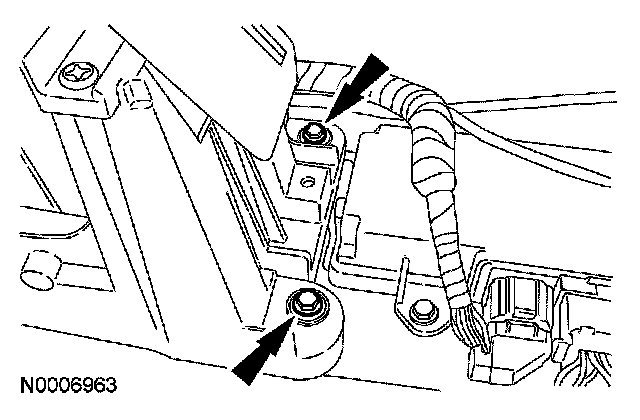

9. Remove the 2 front shifter bolts.

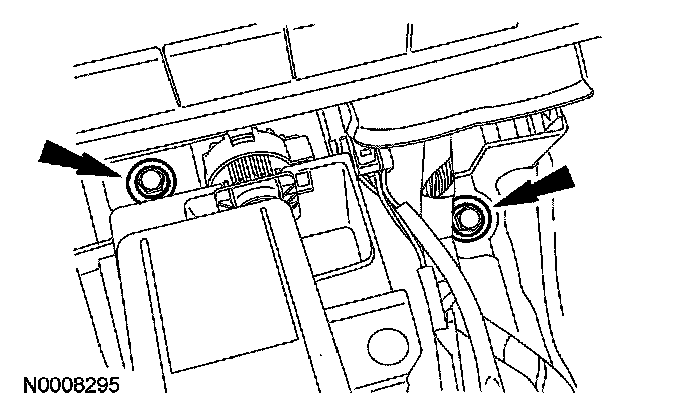

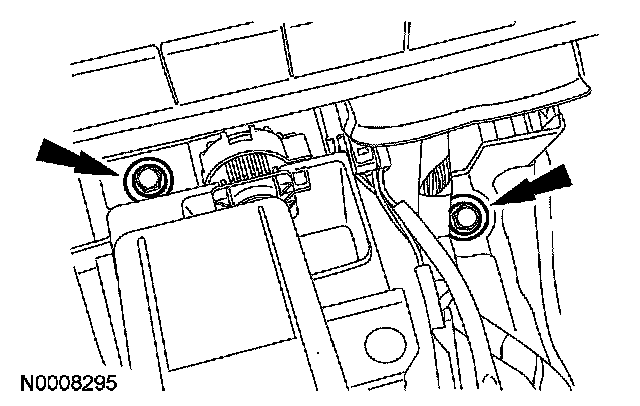

10. Remove the 2 rear shifter bolts and the shifter from the vehicle.

Installation





1. Install the shifter and the 2 front bolts.
^ Tighten to 11 Nm (8 ft. lbs.).





2. Install the 2 rear shifter bolts.
^ Tighten to 11 Nm (8 ft. lbs.).





3. Connect the wire harness to the shifter.

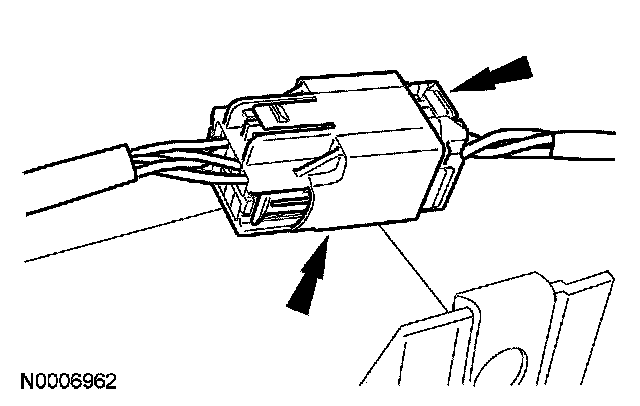

4. Connect the electrical connector.





5. Install the LH plastic retaining clip for the carpet.





6. Install the RH plastic retaining clip for the carpet.





7. Push the shift cable into the housing. Make sure that the tab on the shift cable connector is locked in place.





8. Connect the selector lever cable end to the selector lever.
9. Install the center console. For additional information, refer to Console.
10. Check the shift cable adjustment. Make sure that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
