Automatic Transmission/Transaxle: Application and ID

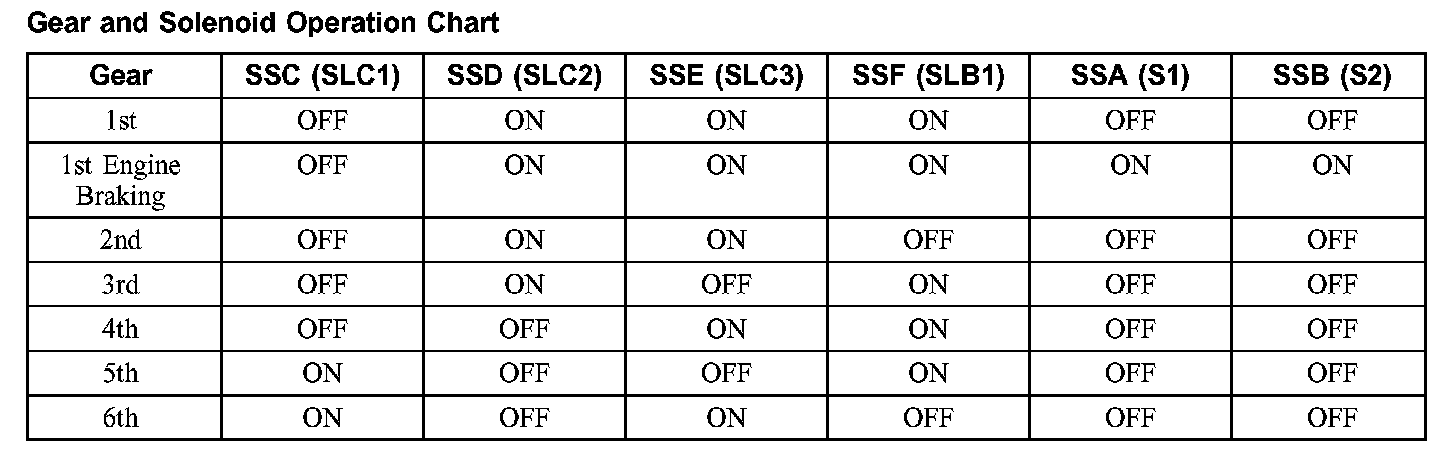

Gear and Solenoid Operation Chart:



Solenoid Resistance Reading:
