Test C: No Power In RUN
Pinpoint Test C: No Power In RUNNormal Operation
The ignition switch RUN circuit provides fused battery voltage along circuits 1050 (LG/VT) and 1716 (GY/YE) to the smart junction box (SJB) when the key is in the RUN position.
Possible Causes
^ Circuit open
^ Circuit shorted
^ Ignition switch
^ SJB

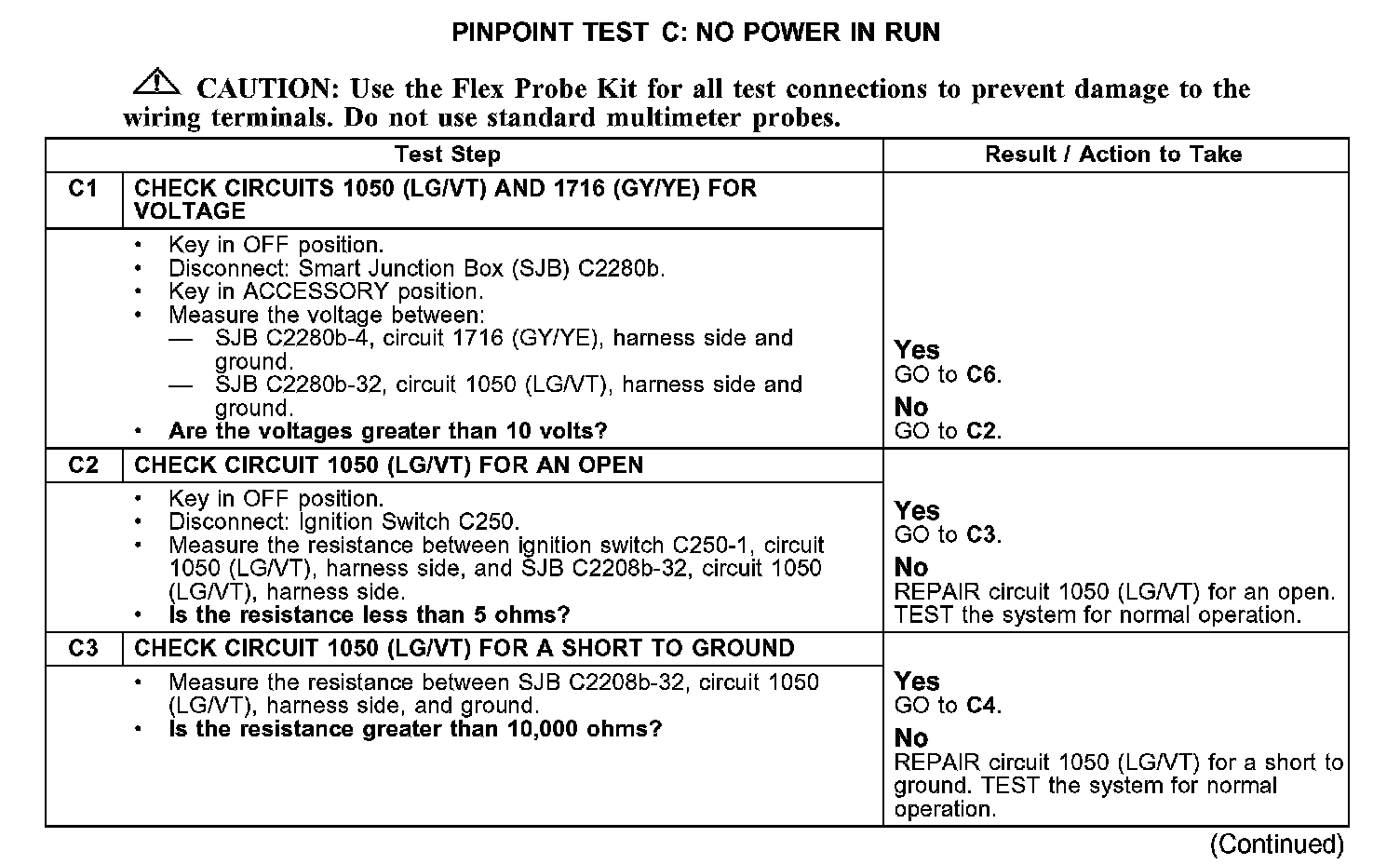

C1-C3:

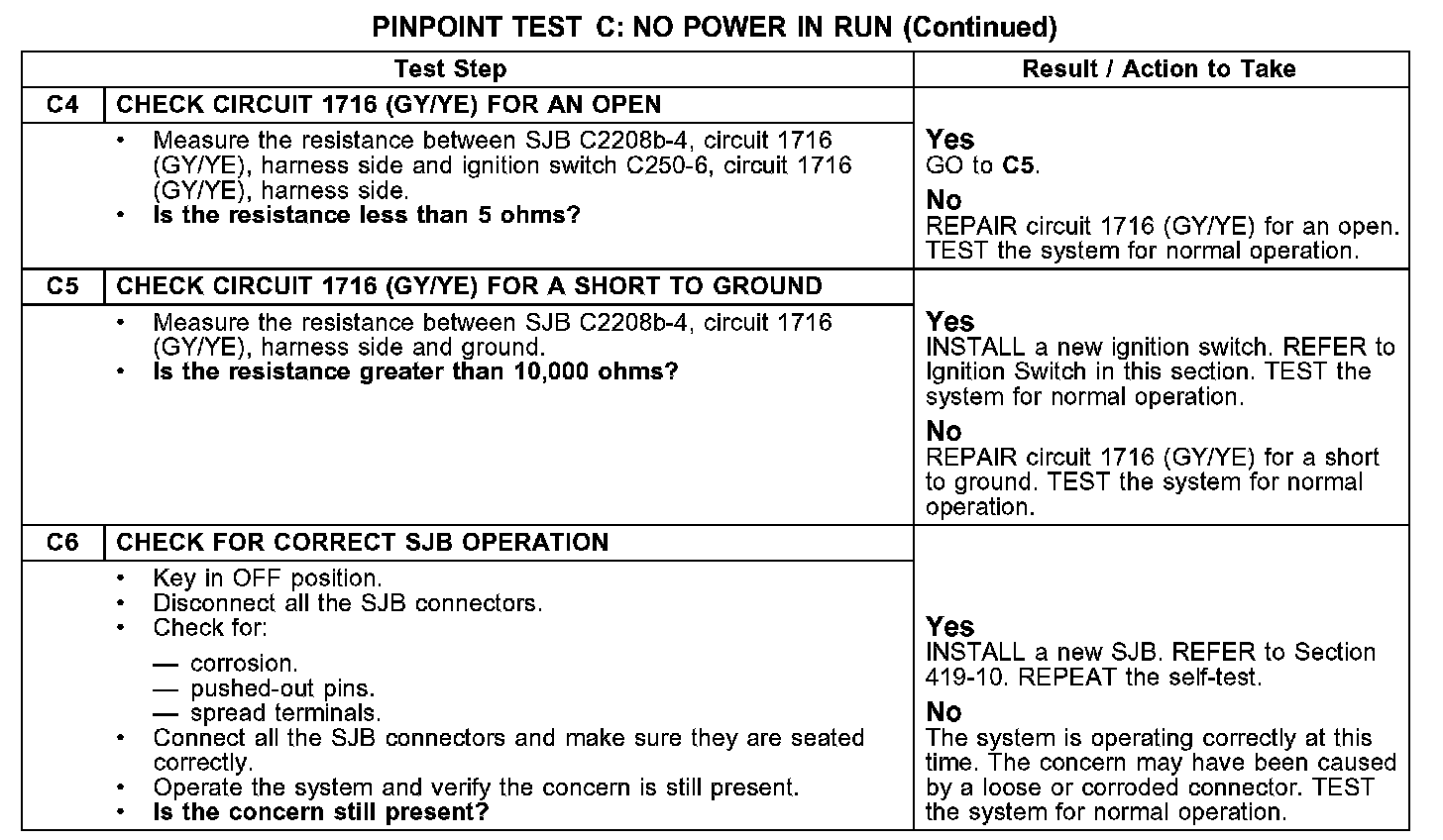

C4-C6:
