Continuously Variable Transmission/Transaxle, CVT
>>
System Specifications
>>
General Specifications
General Specifications

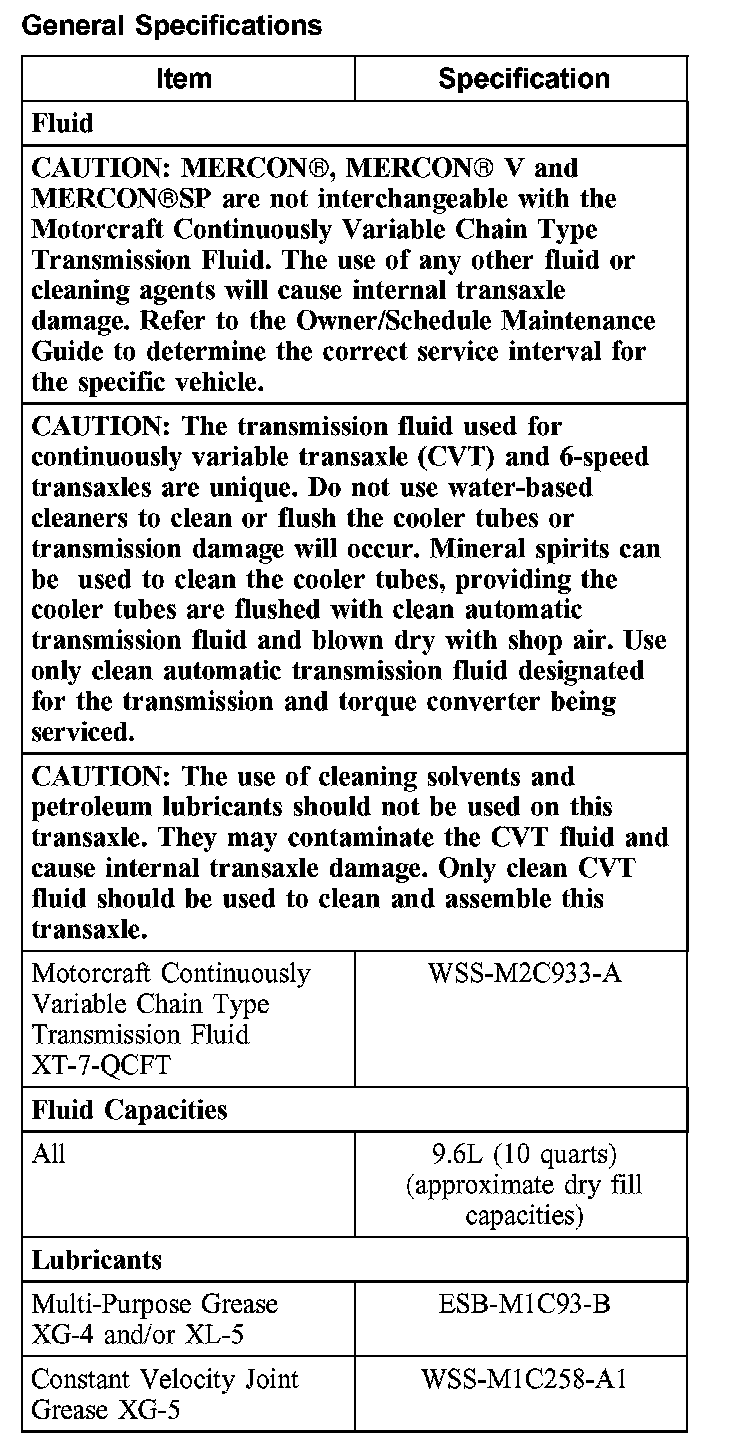

General Specifications:

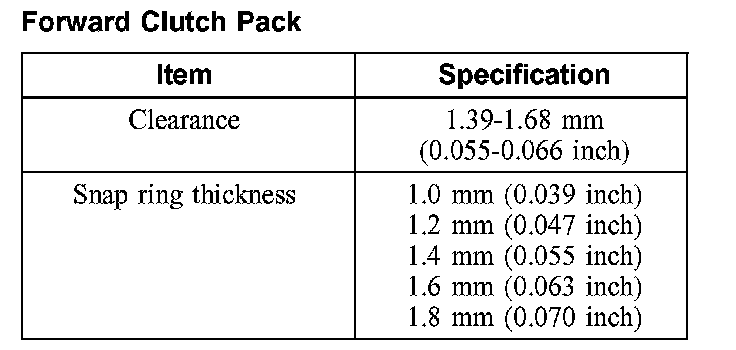

Forward Clutch Pack:

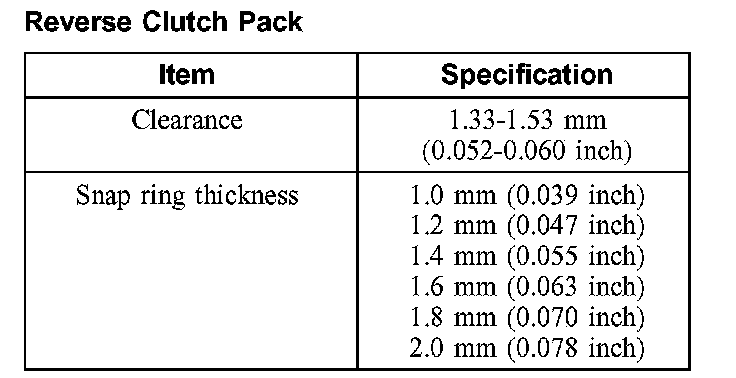

Reverse Clutch Pack:

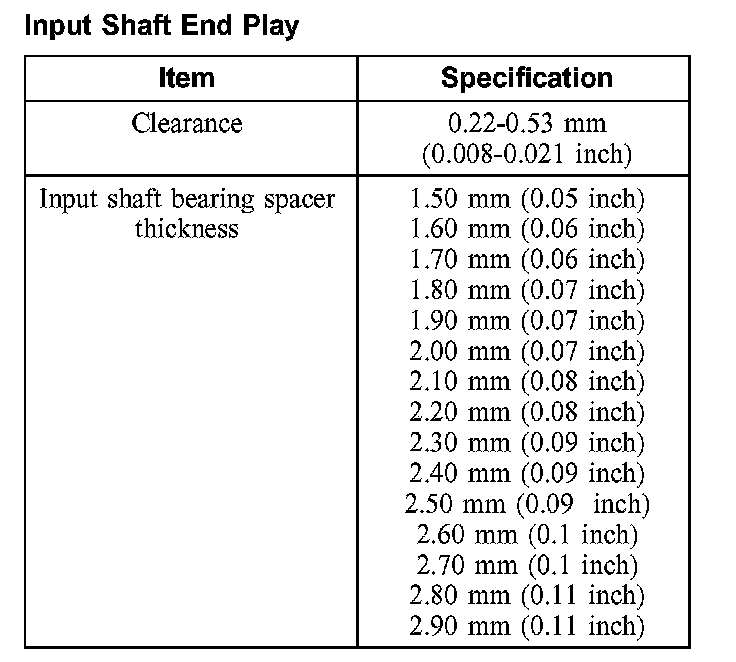

Input Shaft End Play:

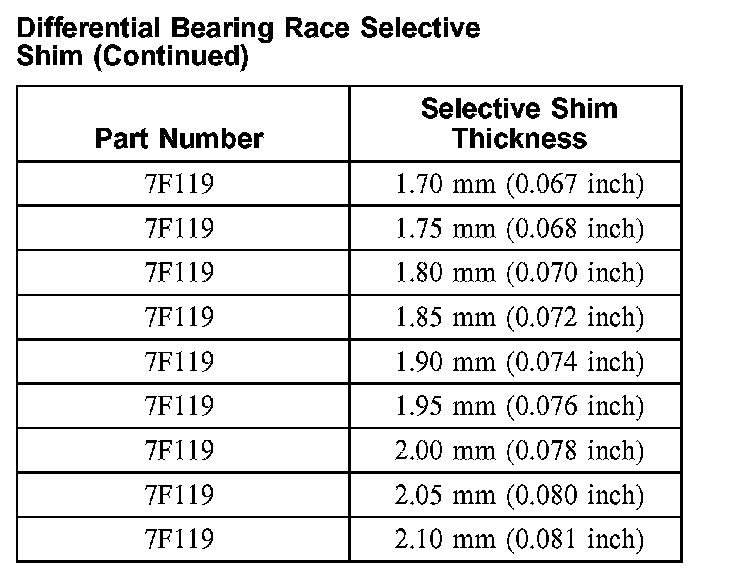

Differential Bearing Race Selective Shim:
Differential Bearing Race Selective Shim:
