Home >> Mercury >> 2006 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Master Window Adjust Switch

Master Window Adjust Switch

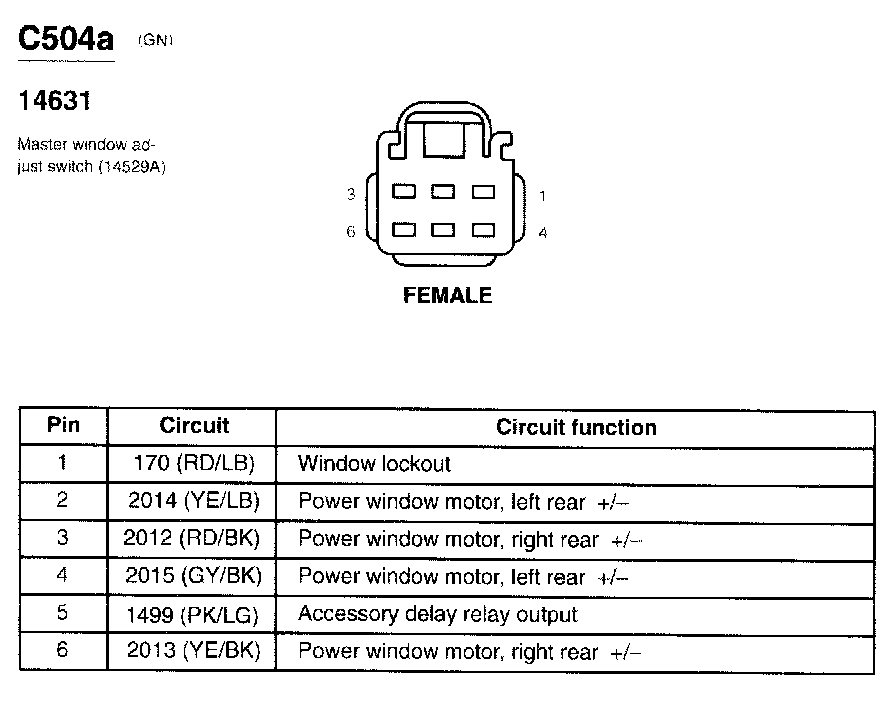

C504a:

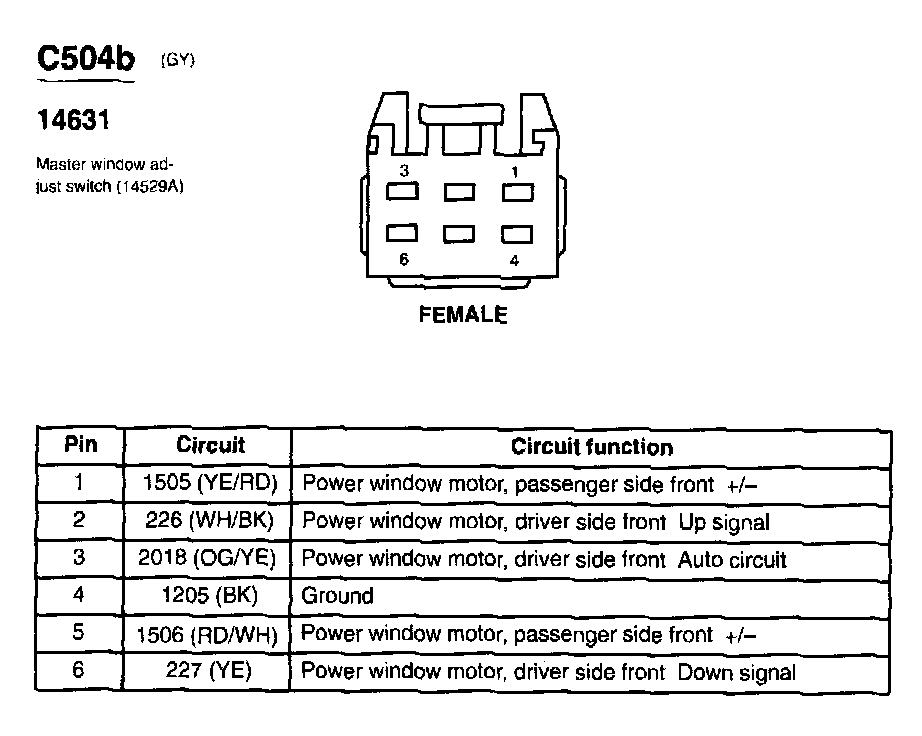

C504b:
