Safety Belt Retractor - Rear, Center

SAFETY BELT RETRACTOR - REAR, CENTER







Removal and Installation

WARNING: All safety belt assemblies including retractors, buckles, front seat belt buckle support assemblies (slide bar), if equipped, shoulder safety belt height adjusters, if equipped, child safety seat tether bracket assemblies, if equipped, and attaching hardware should be inspected after any collision. All belt assemblies should be replaced unless a qualified technician finds the assemblies show no damage and operate properly. Belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

The Automatic Locking Retractor (ALR) feature of the safety belt retractor must be checked by a qualified technician to verify that the ALR feature for a child seat is functioning properly, in addition to the other checks for proper safety belt system function. A belt and retractor assembly must be replaced if the safety belt assembly's "automatic locking retractor" feature or any other safety belt function is not operating properly when inspected according to the functional inspection procedures. Failure to replace the belt and retractor assembly could increase the risk of injury in collisions.

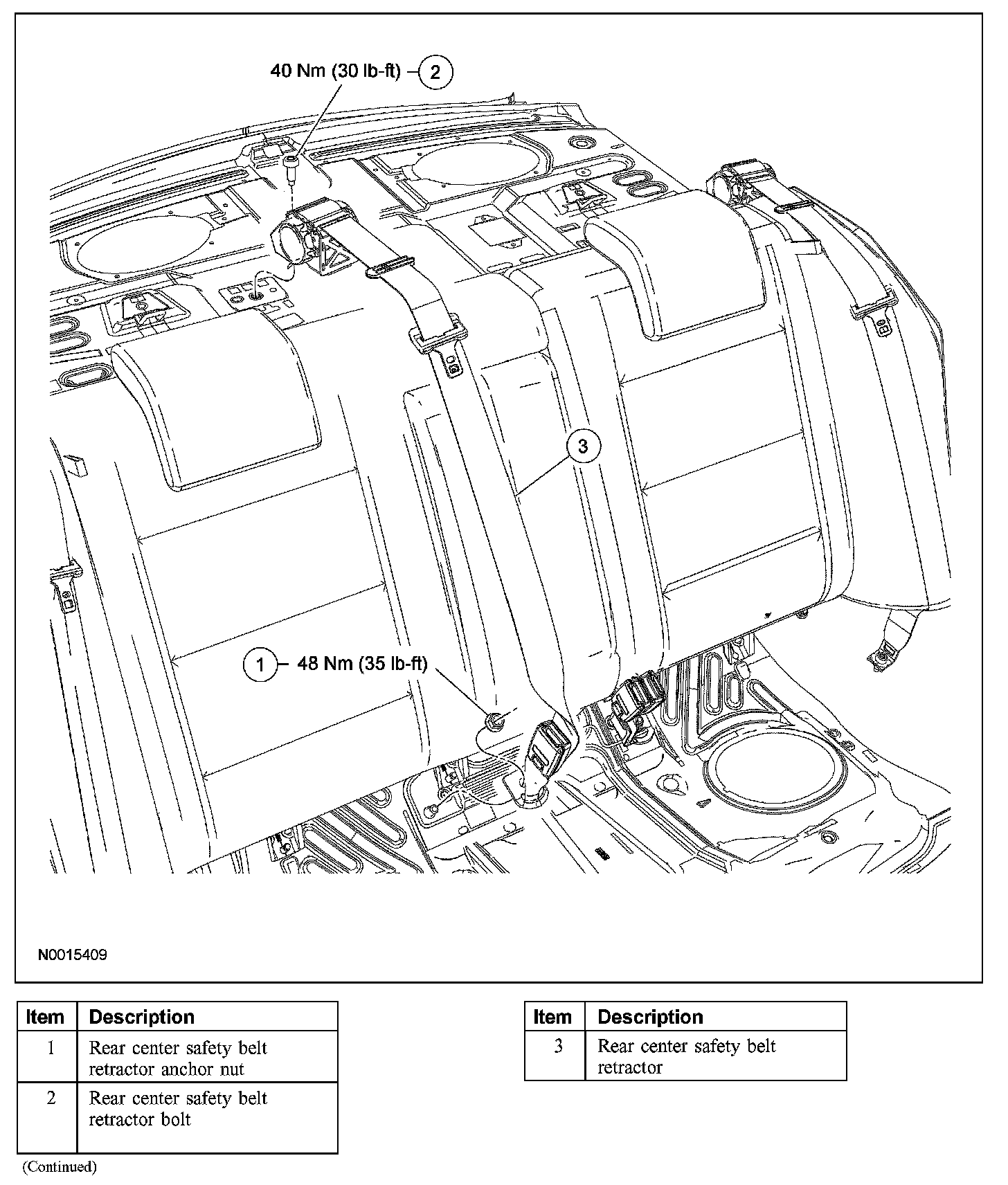

1. Remove the rear seat cushion.
2. Remove the center safety belt retractor anchor nut.
- To install, tighten to 48 Nm (35 lb-ft).

3. Remove the parcel shelf.
4. Remove the bolt and center safety belt retractor.
- To install, tighten to 40 Nm (30 lb-ft).

5. NOTE: Make sure the safety belt webbing is not twisted prior to installation.

To install, reverse the removal procedure.

6. Check the active restraint system for correct operation.
