Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL







Removal and Installation

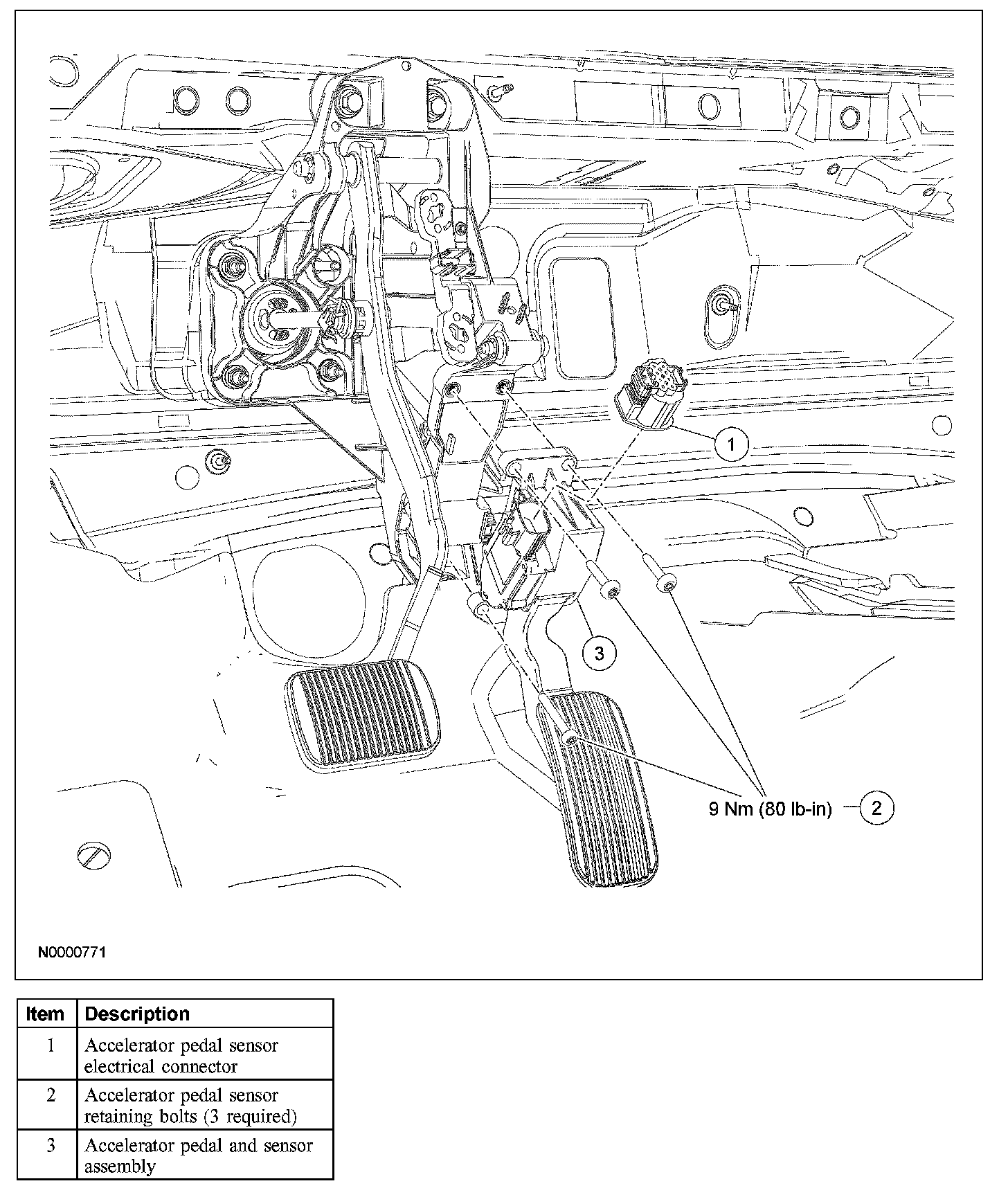

1. Disconnect the accelerator pedal sensor electrical connector.
2. Remove the 3 accelerator pedal and sensor retaining bolts.
- To install, tighten to 9 Nm (80 lb-in).

3. Remove the accelerator pedal and sensor assembly.
4. To install, reverse the removal procedure.
