Tests DY: Engine Oil Temperature (EOT) Sensor
PINPOINT TEST DY: ENGINE OIL TEMPERATURE (EOT) SENSOR
This pinpoint test is intended to diagnose the following:
^ engine oil temperature ( EQT) sensor (12A648)
^ harness circuits: EQT and SIGRTN
^ powertrain control module ( PCM) (12A650)
Engine oil temperature must be greater than 10°C (50°F) to pass the KOEO self-test and greater than 66°C (150°F) to pass the KOER self-test.

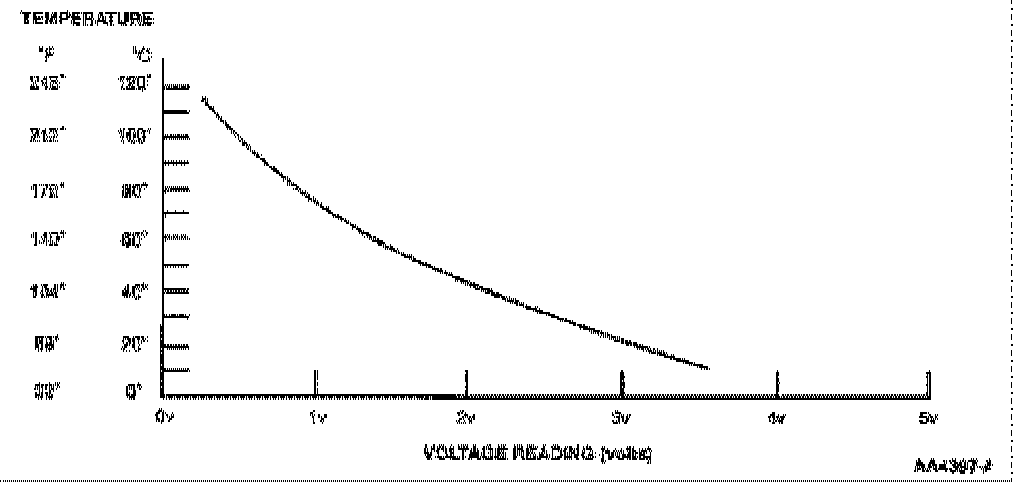

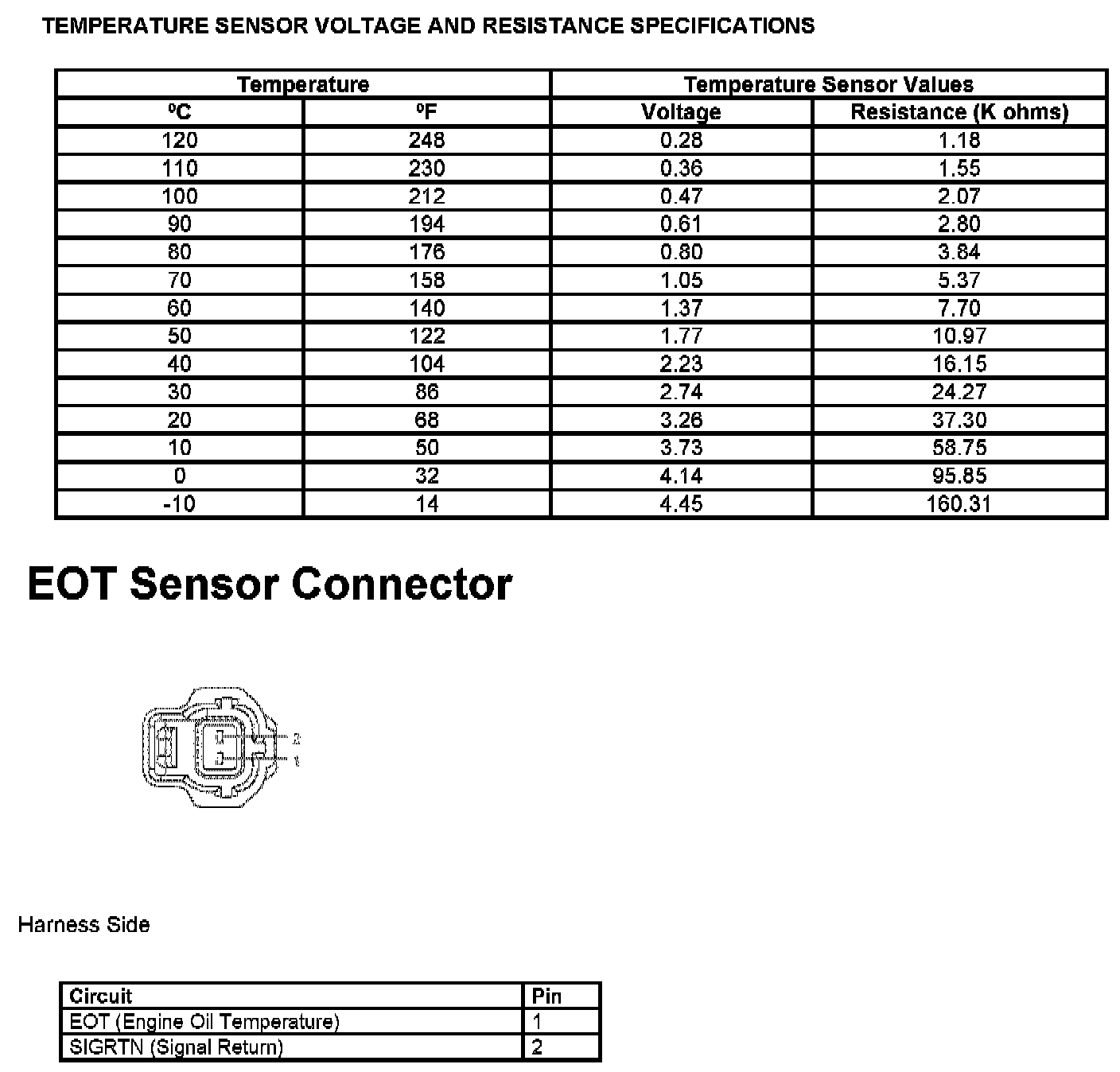

Voltage values calculated for VREF = 5 volts. These values can vary by 15% due to sensor and VREF variations.
Reference:
Reference:

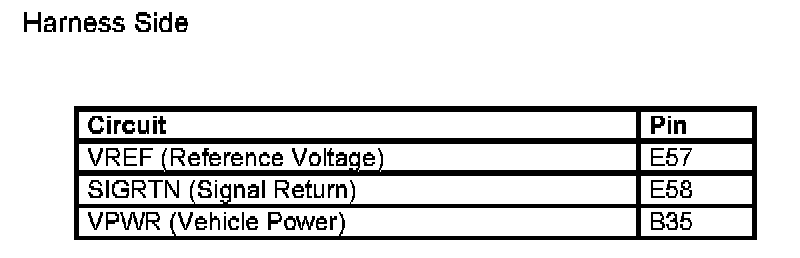

PCM Connector
Reference:

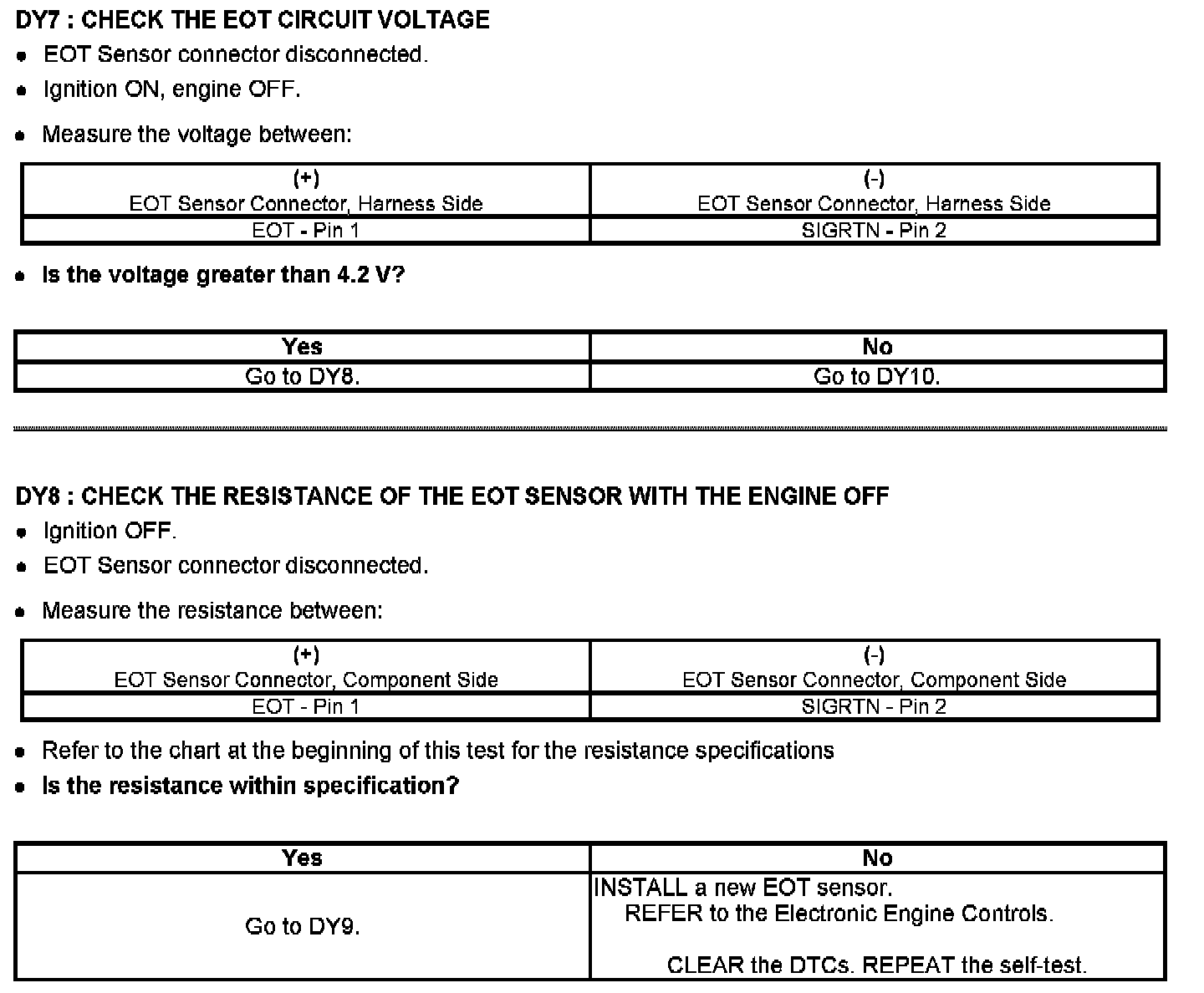

DY1 - DY3:

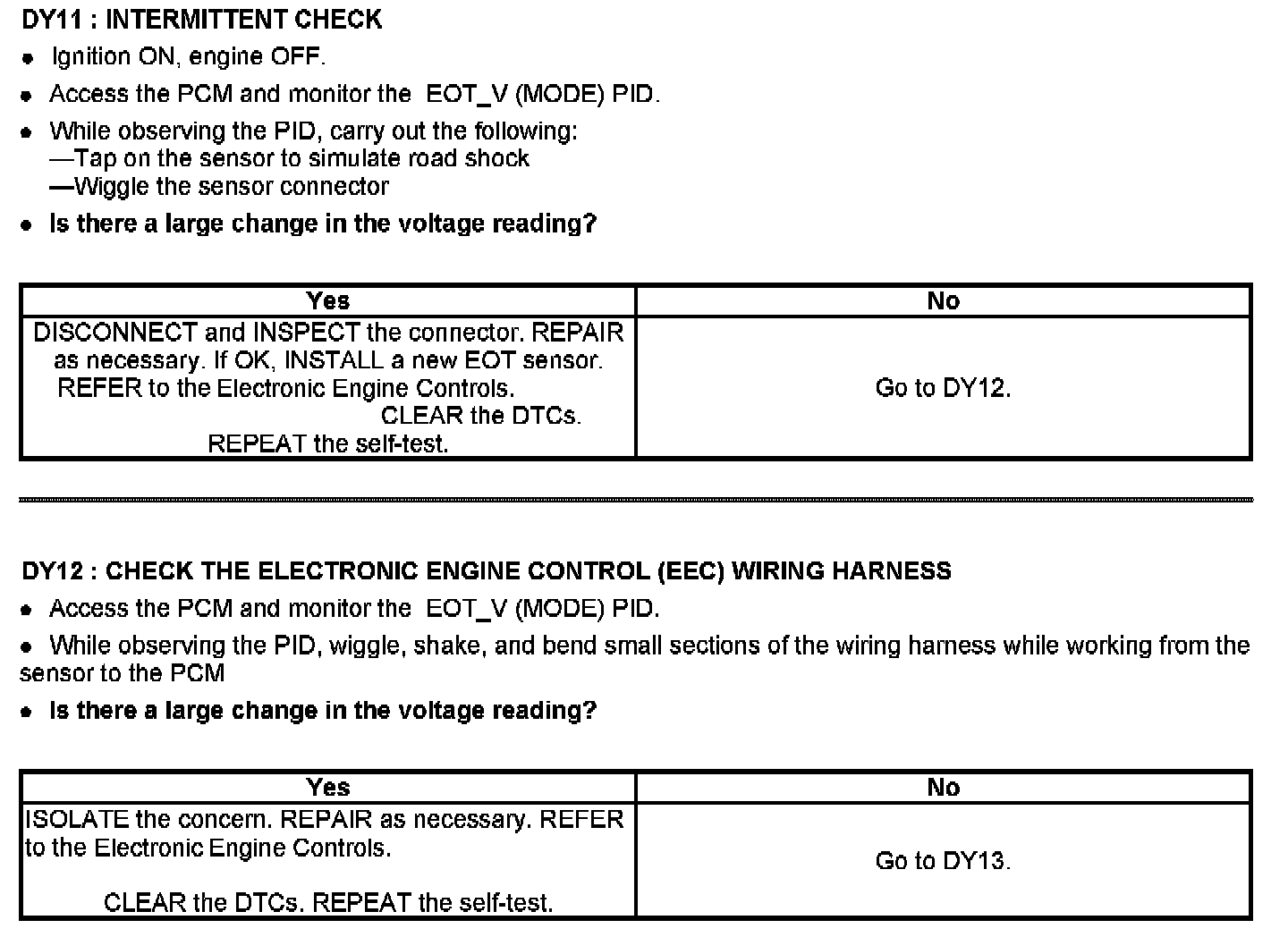

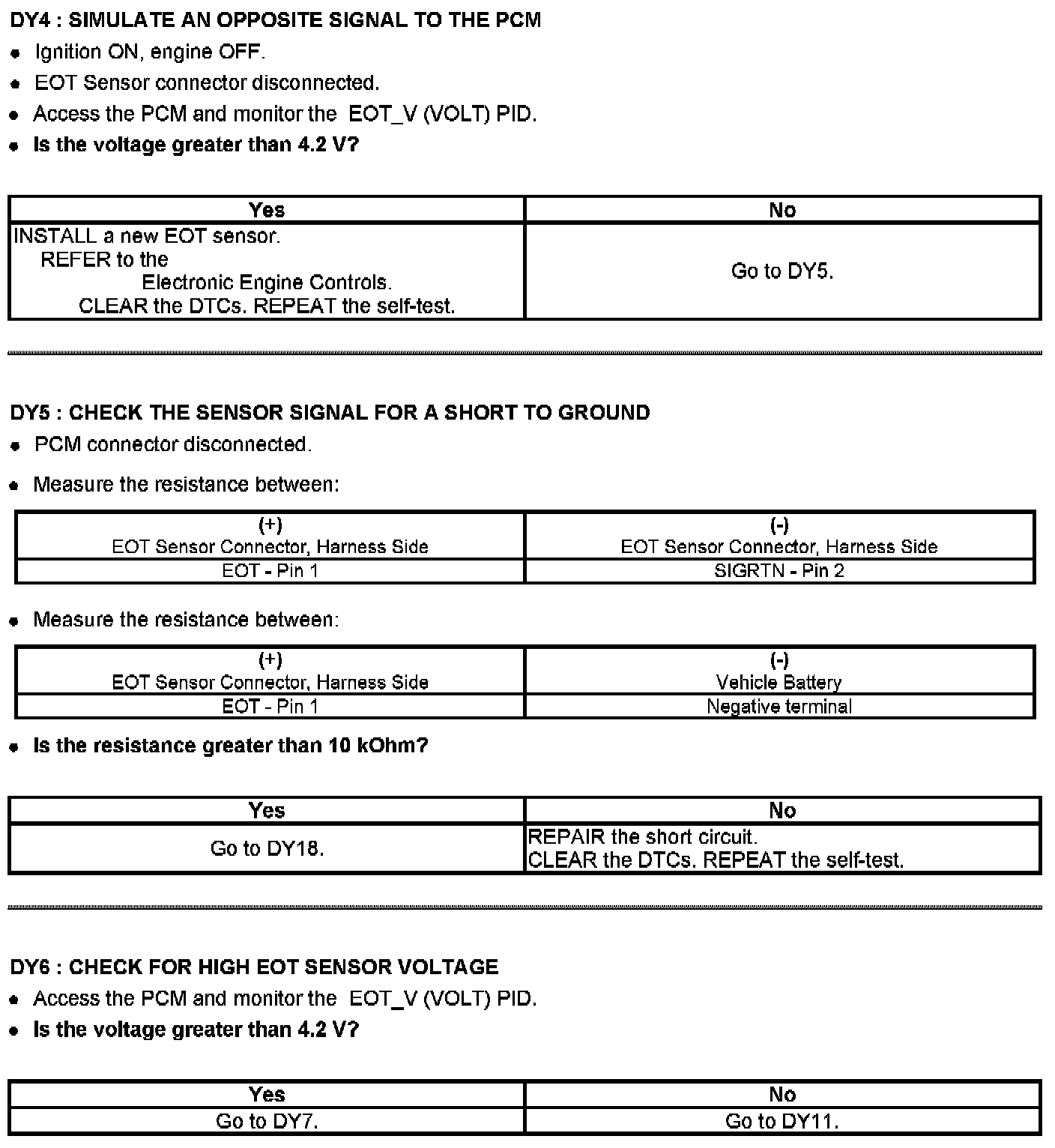

DY4 - DY6:
DY7 - DY8:

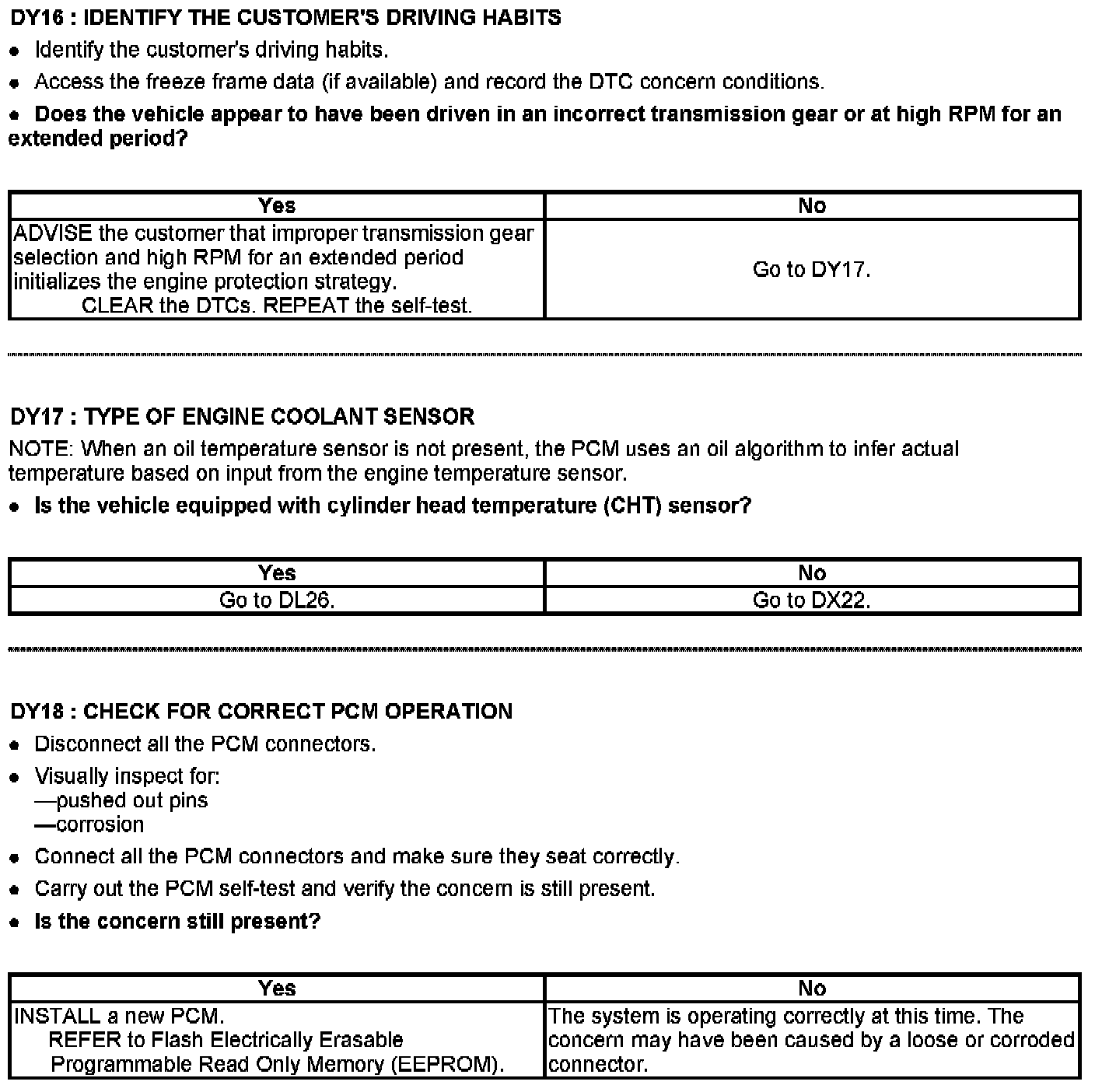

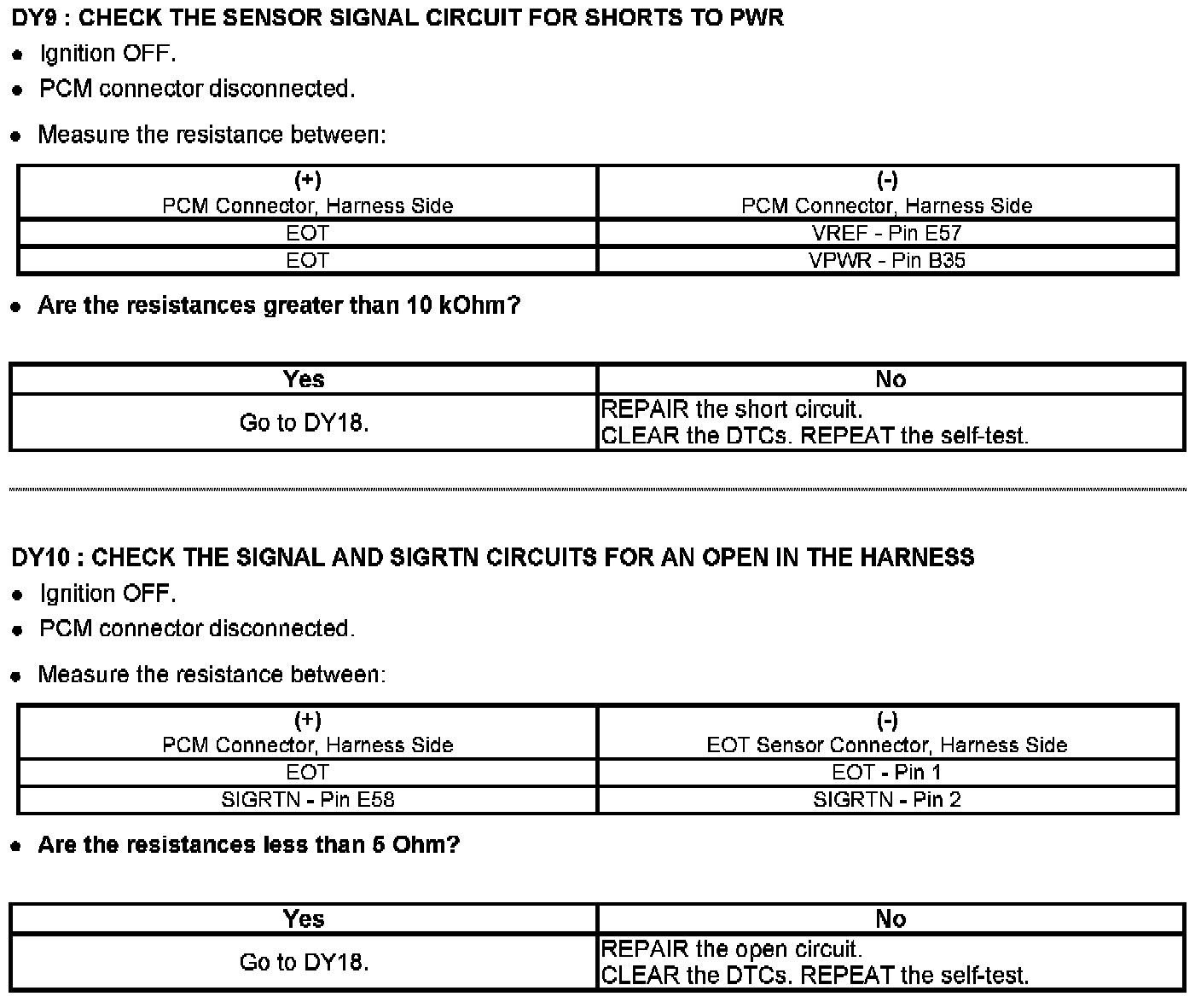

DY9 - DY10:
