Tests DS: Air Conditioning Pressure (ACP) Sensor

PINPOINT TEST DS: AIR CONDITIONING PRESSURE (ACP) SENSOR

This pinpoint test is intended to diagnose the following:

^ ACP sensor (19D594)
^ harness circuits: ACP VREF SIGRTN
^ powertrain control module (PCM) (12A650)

Reference:

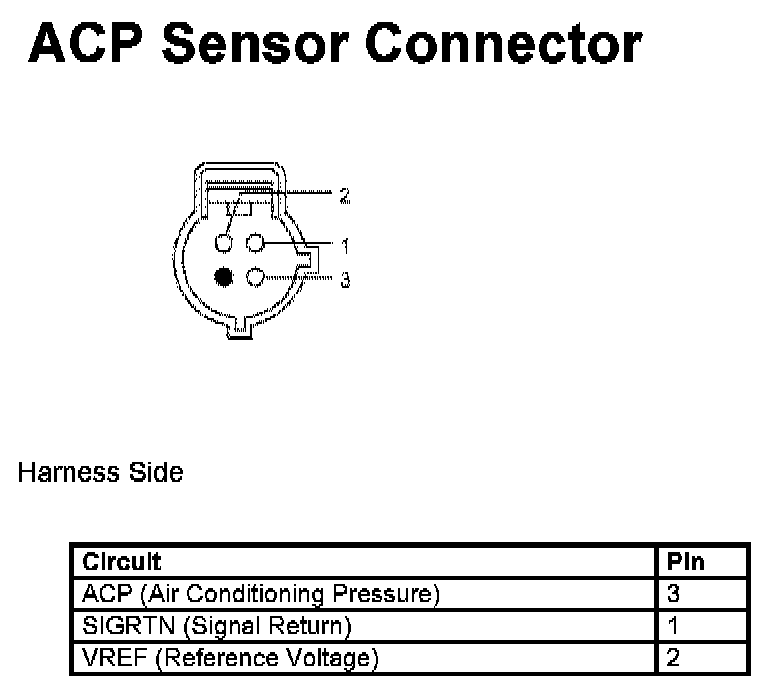

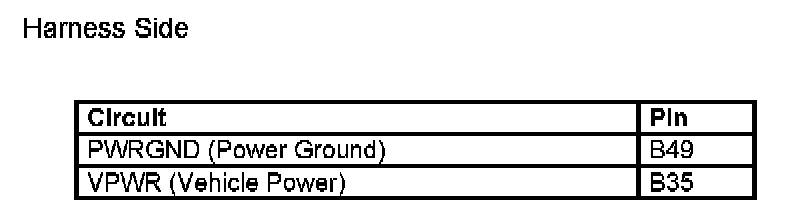

PCM Connector

Reference:

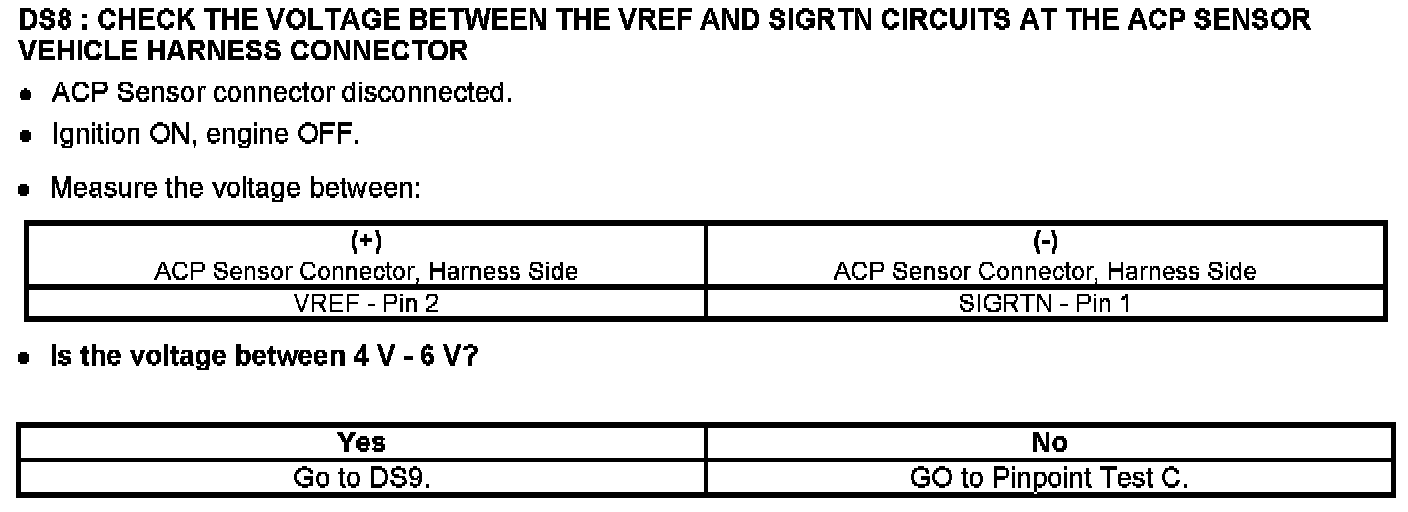

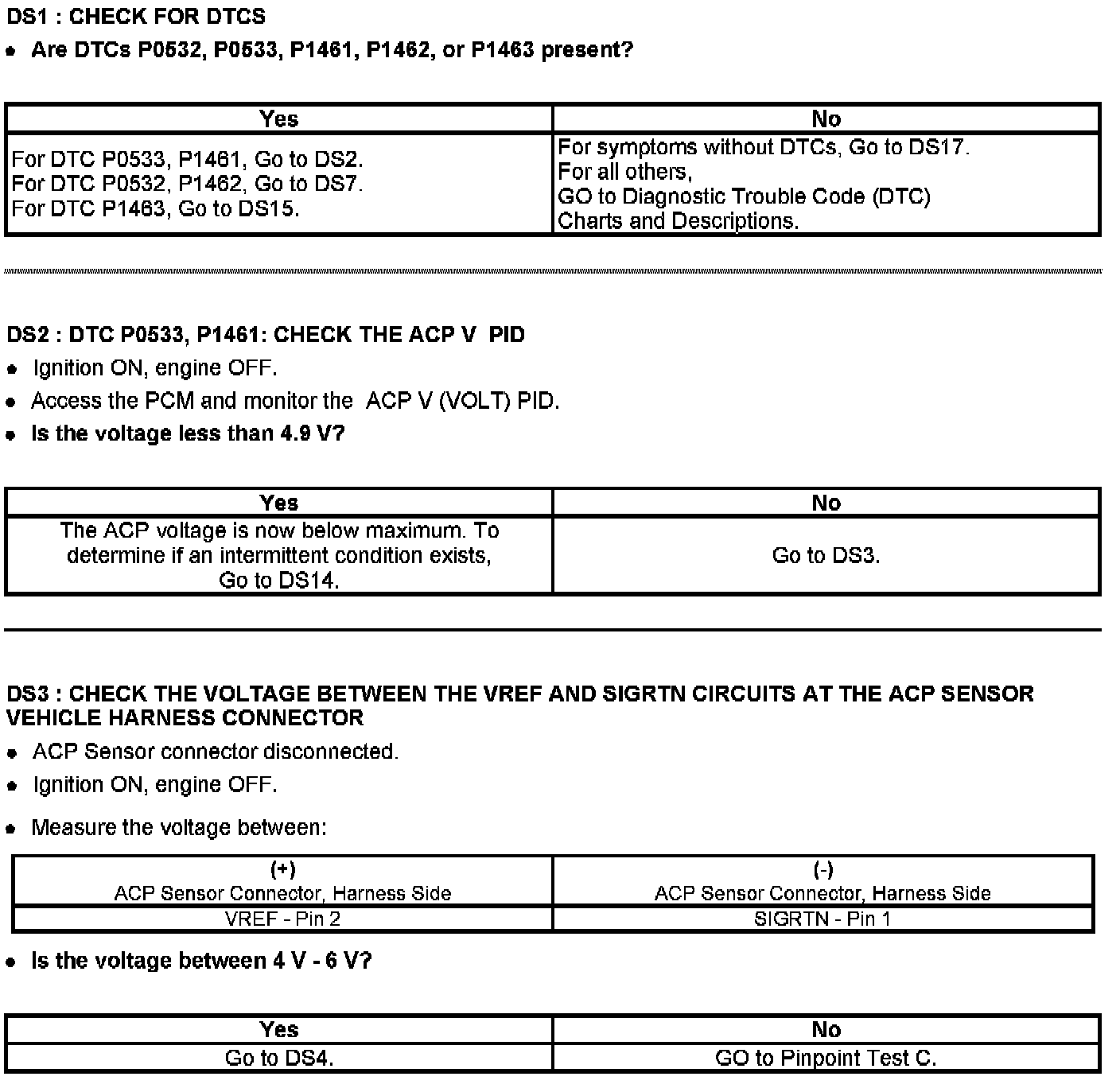

DS1 - DS3:

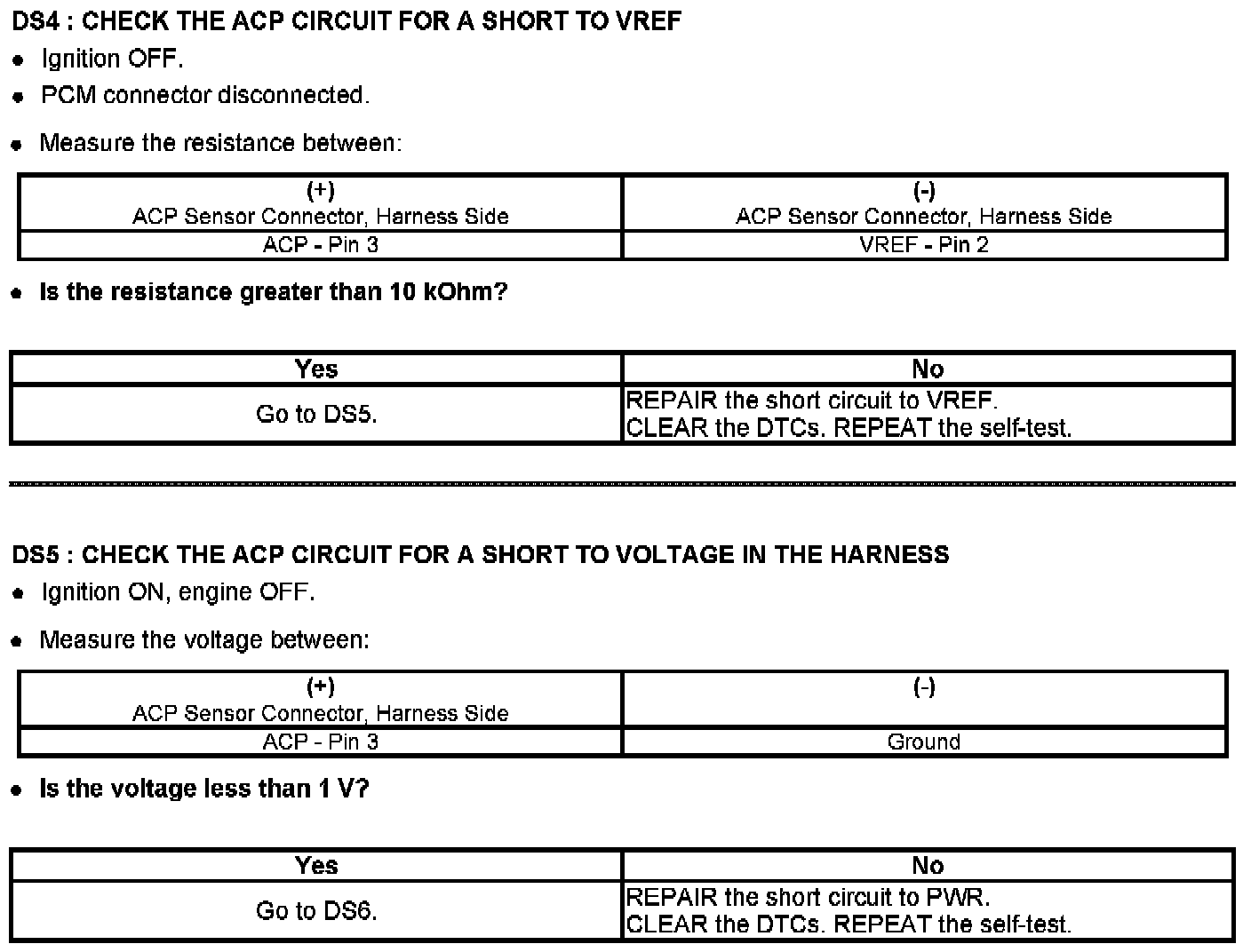

DS4 - DS5:

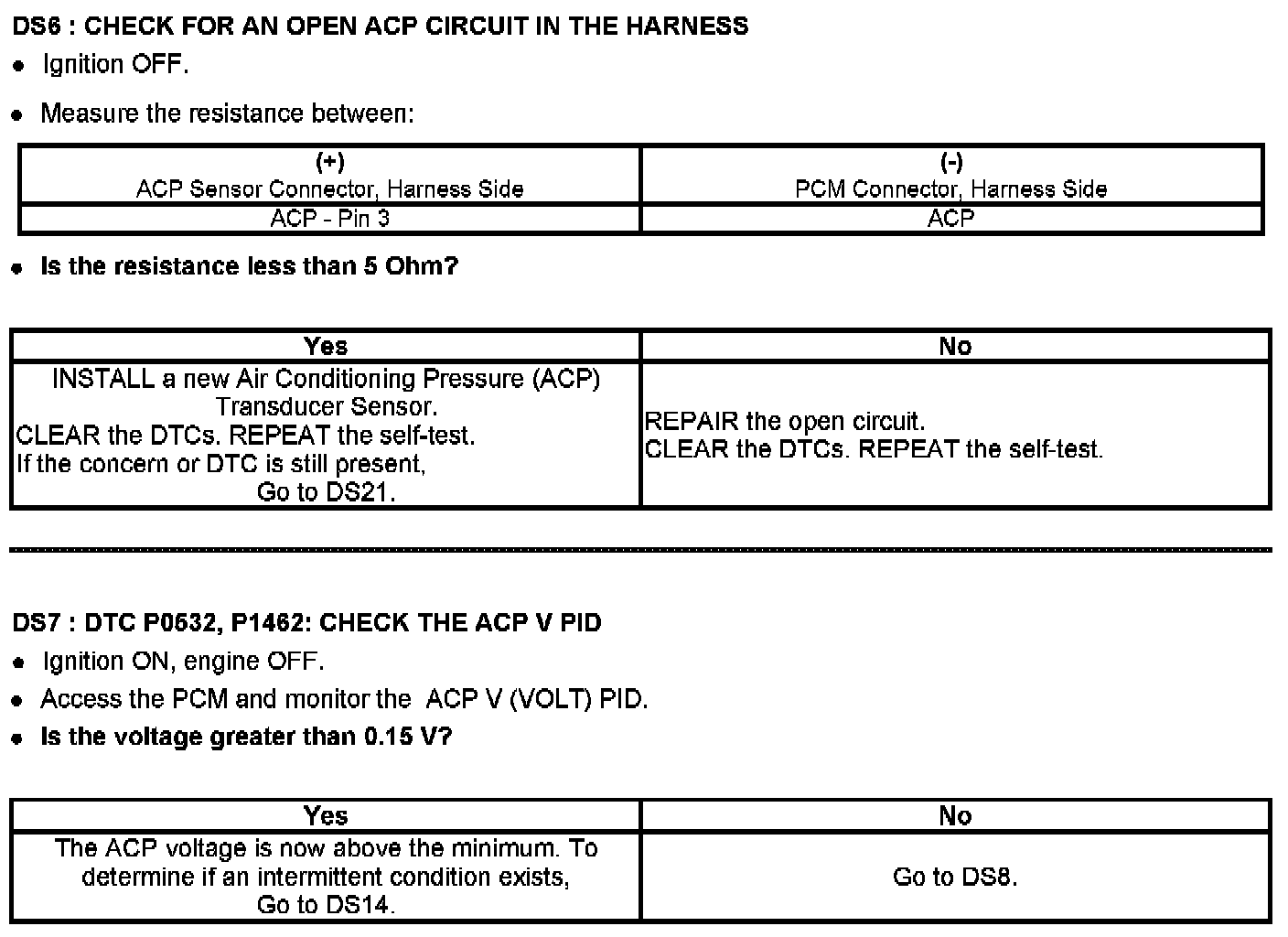

DS6 - DS7:

DS8:

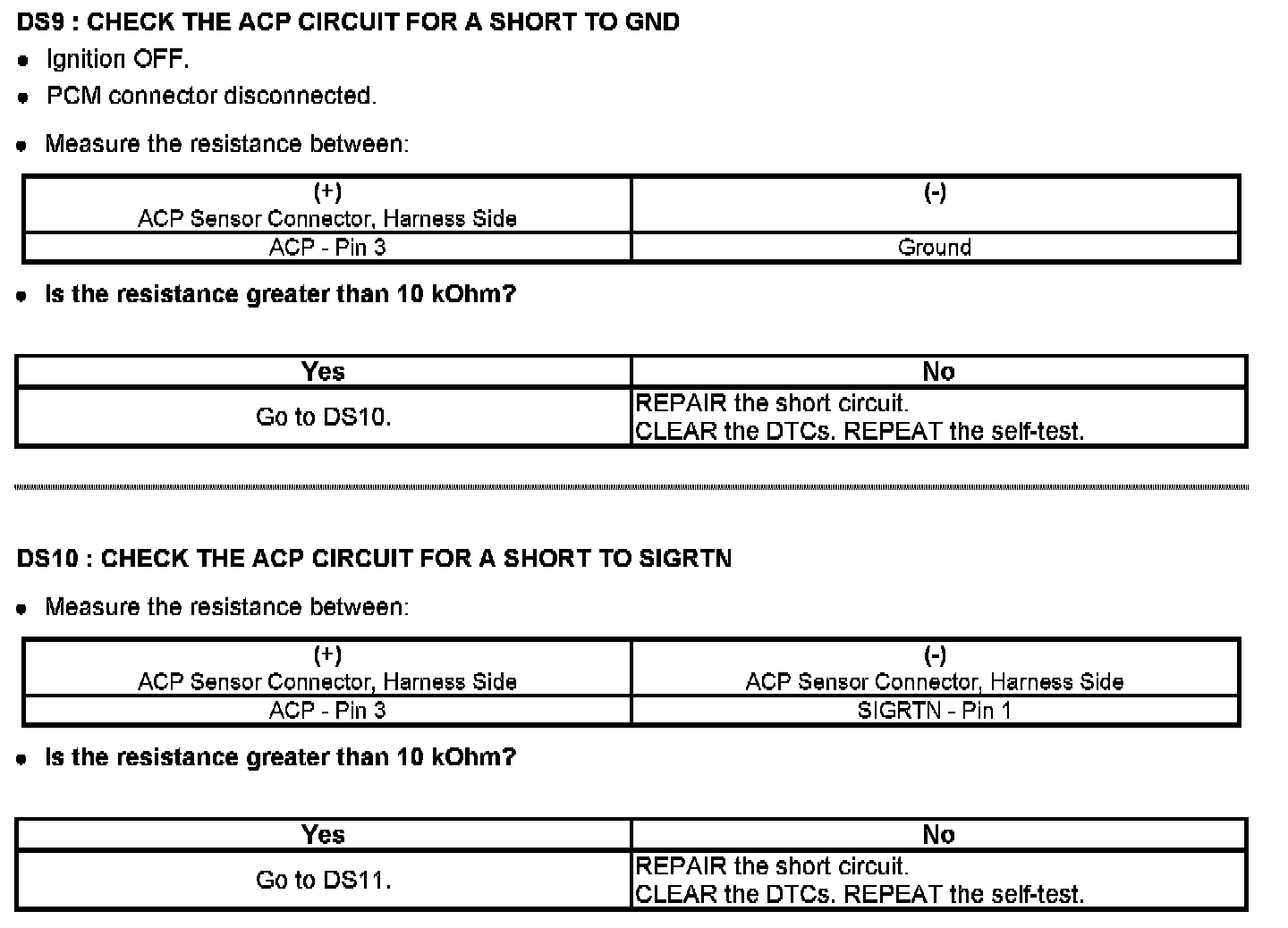

DS9 - DS10:

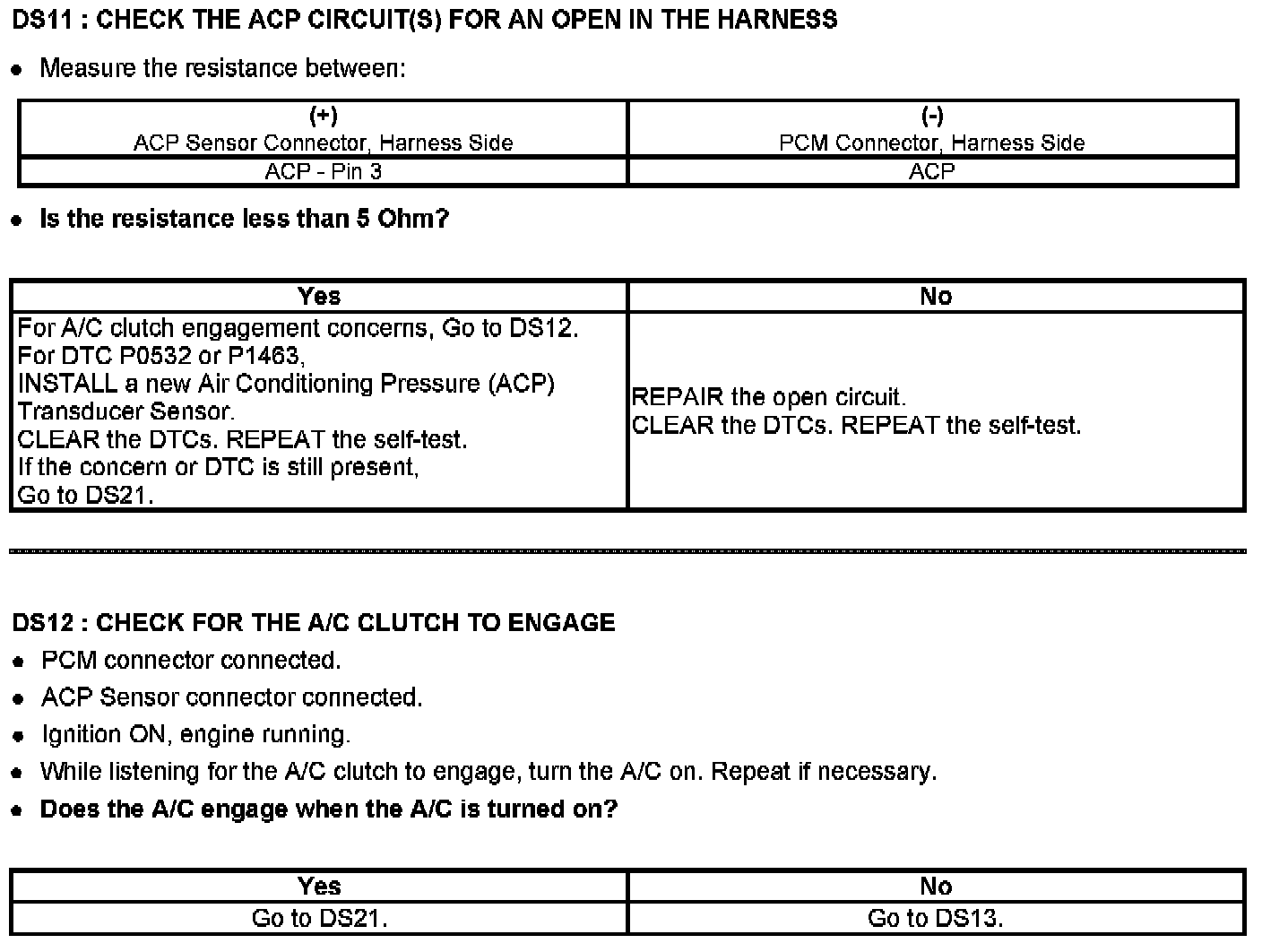

DS11 - DS12:

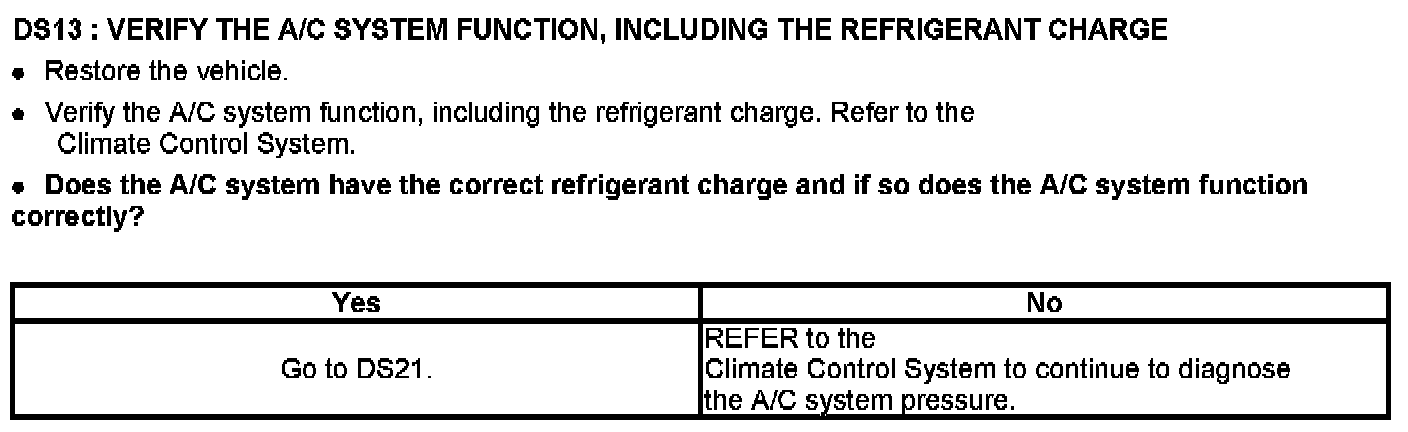

DS13:

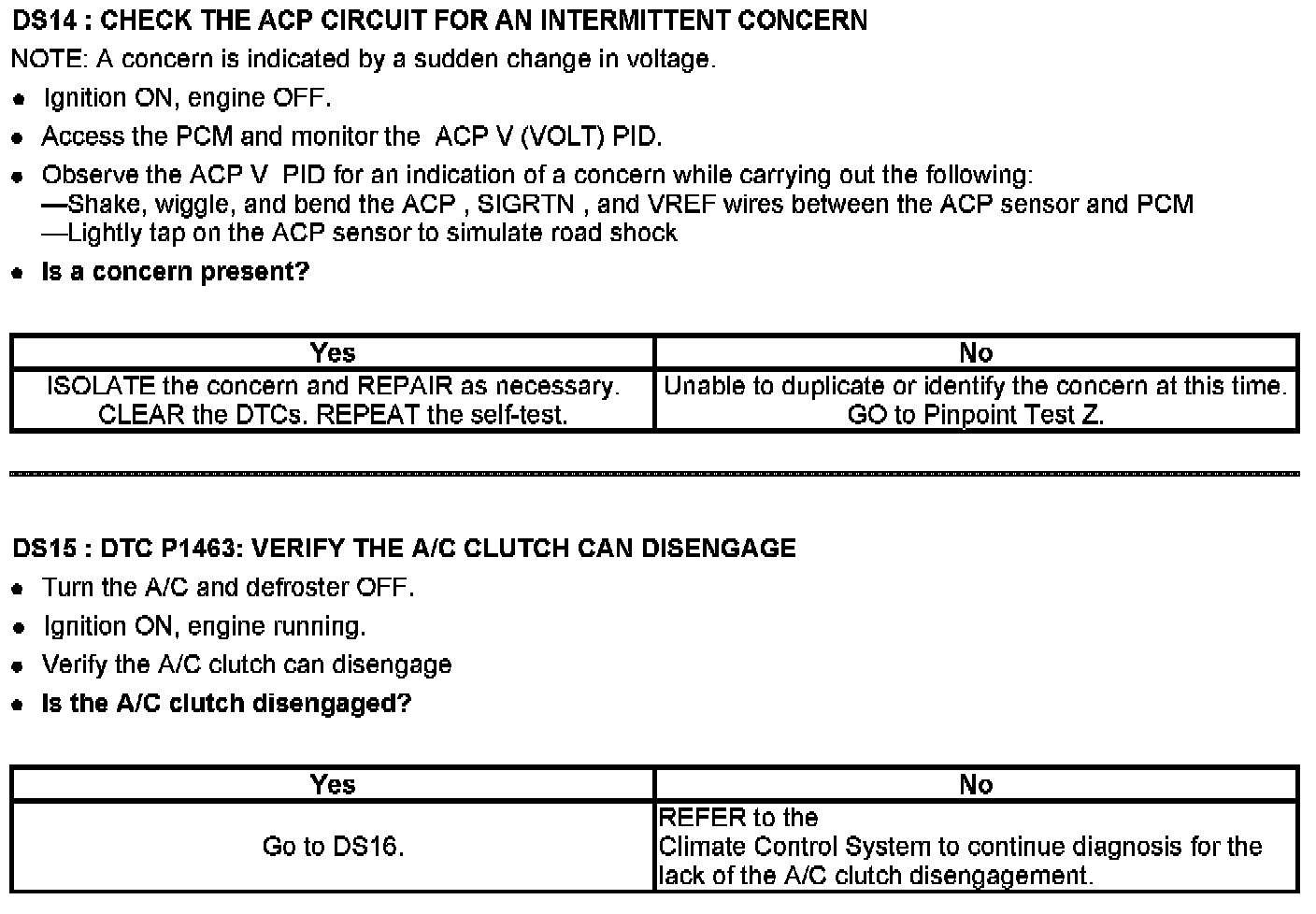

DS14 - DS15:

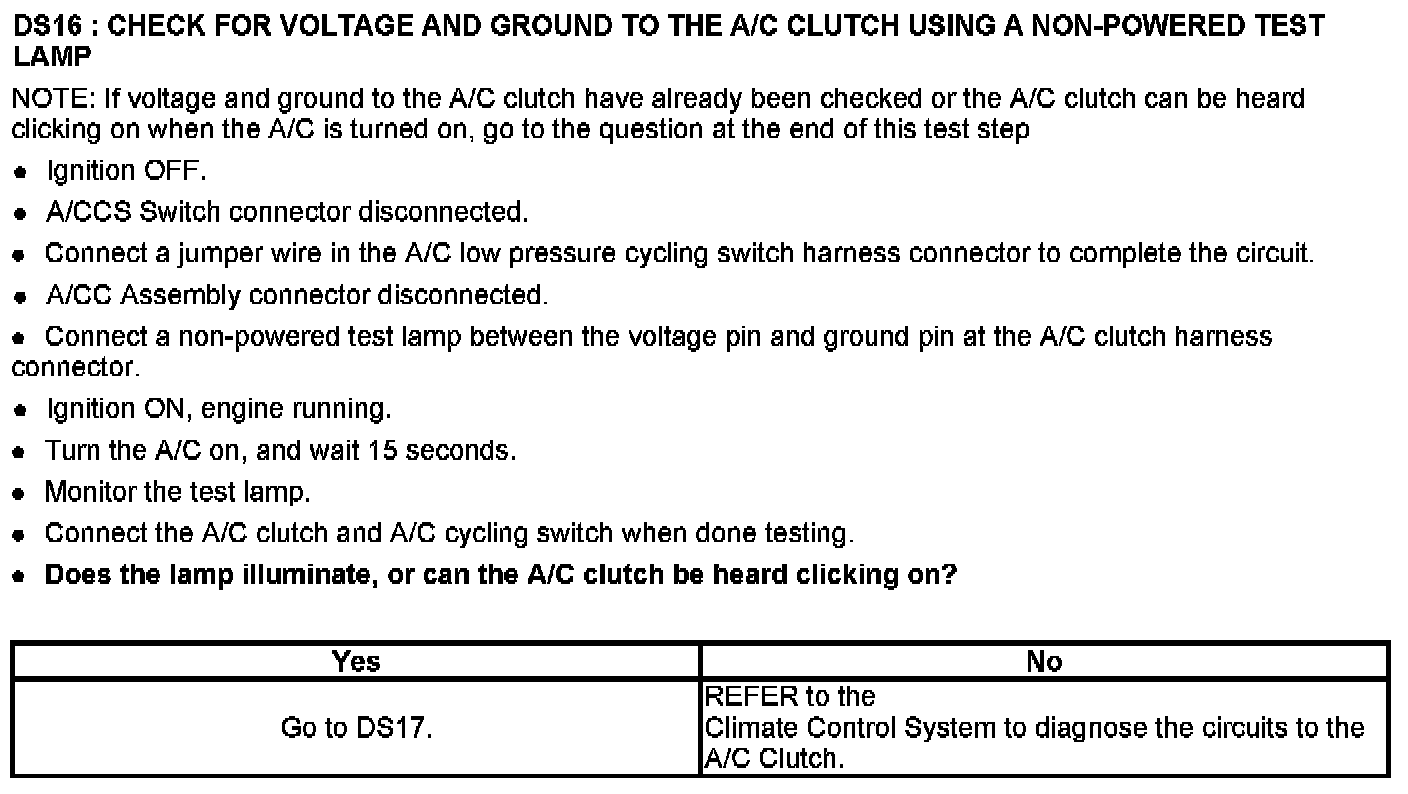

DS16:

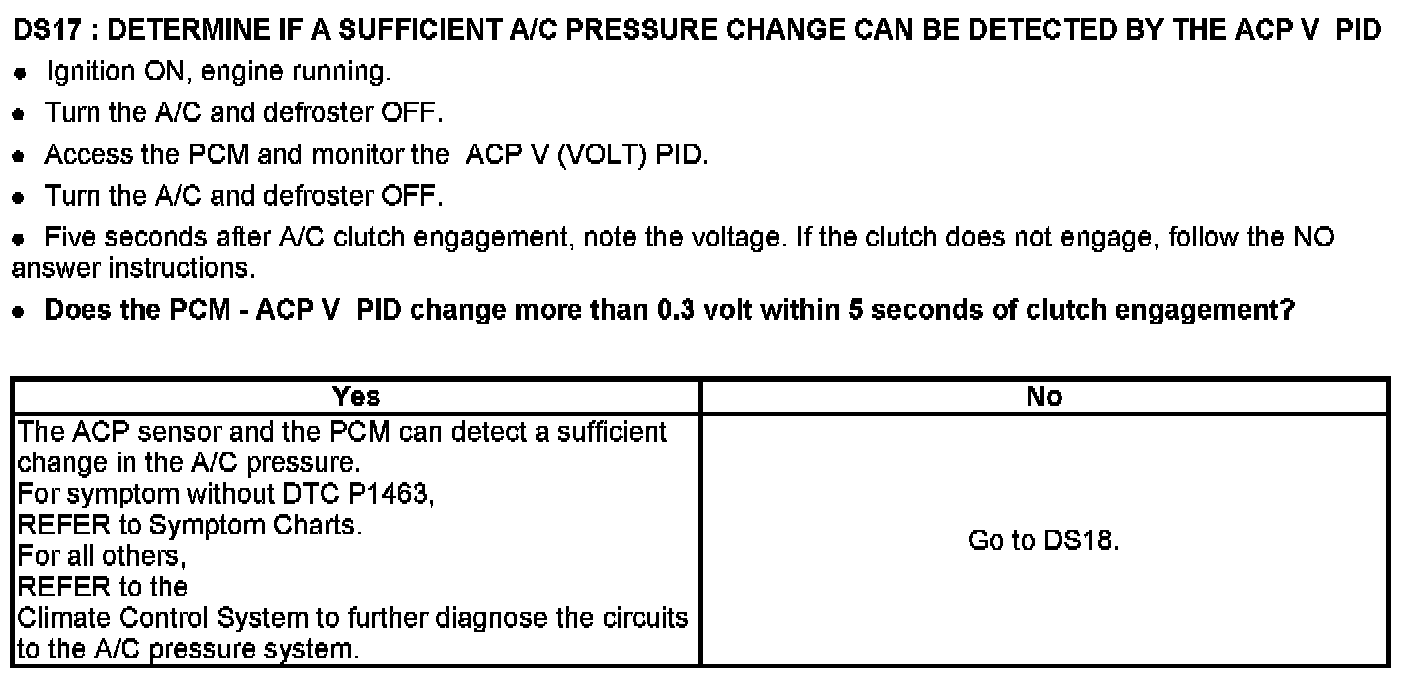

DS17:

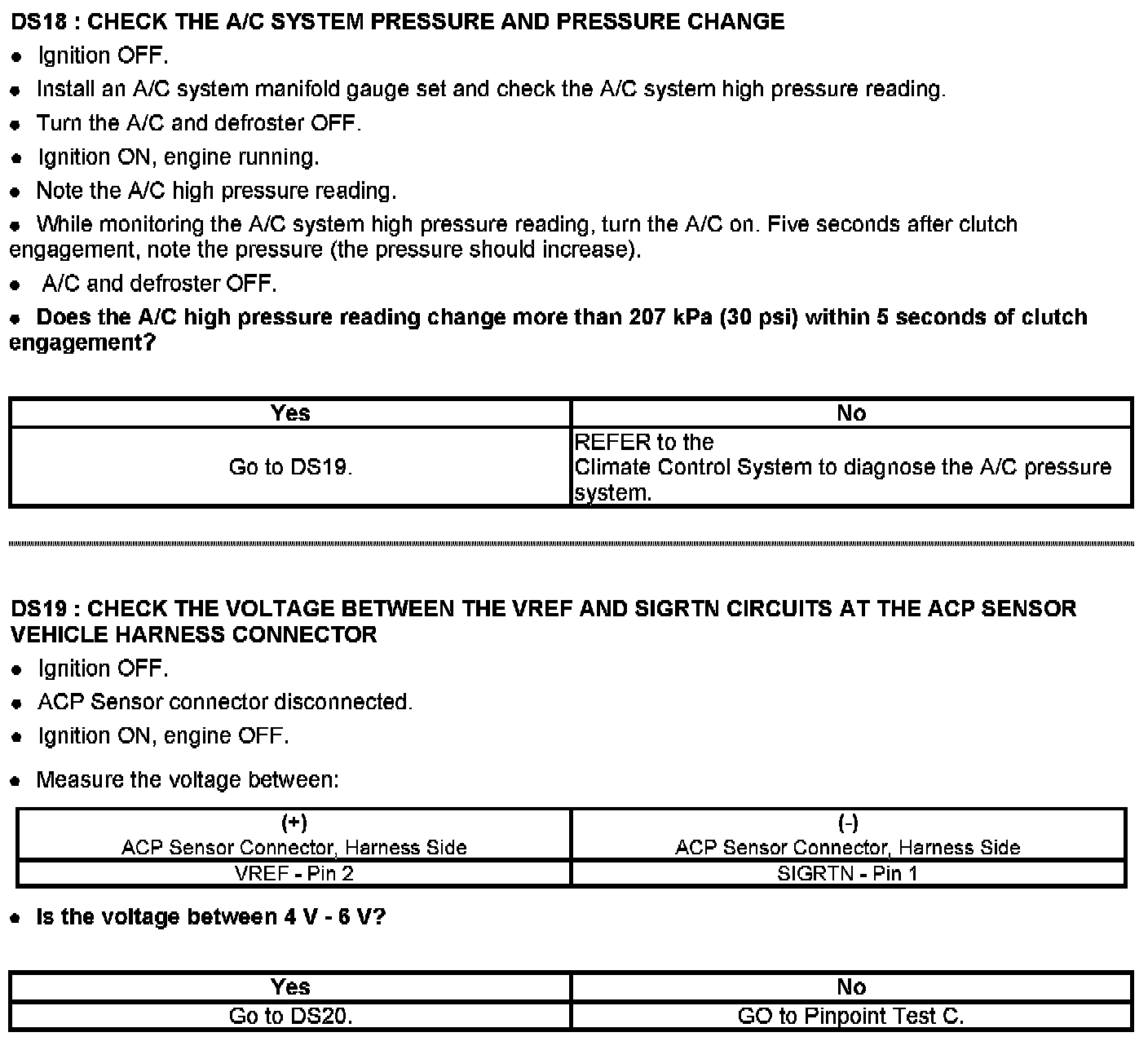

DS18 - DS19:

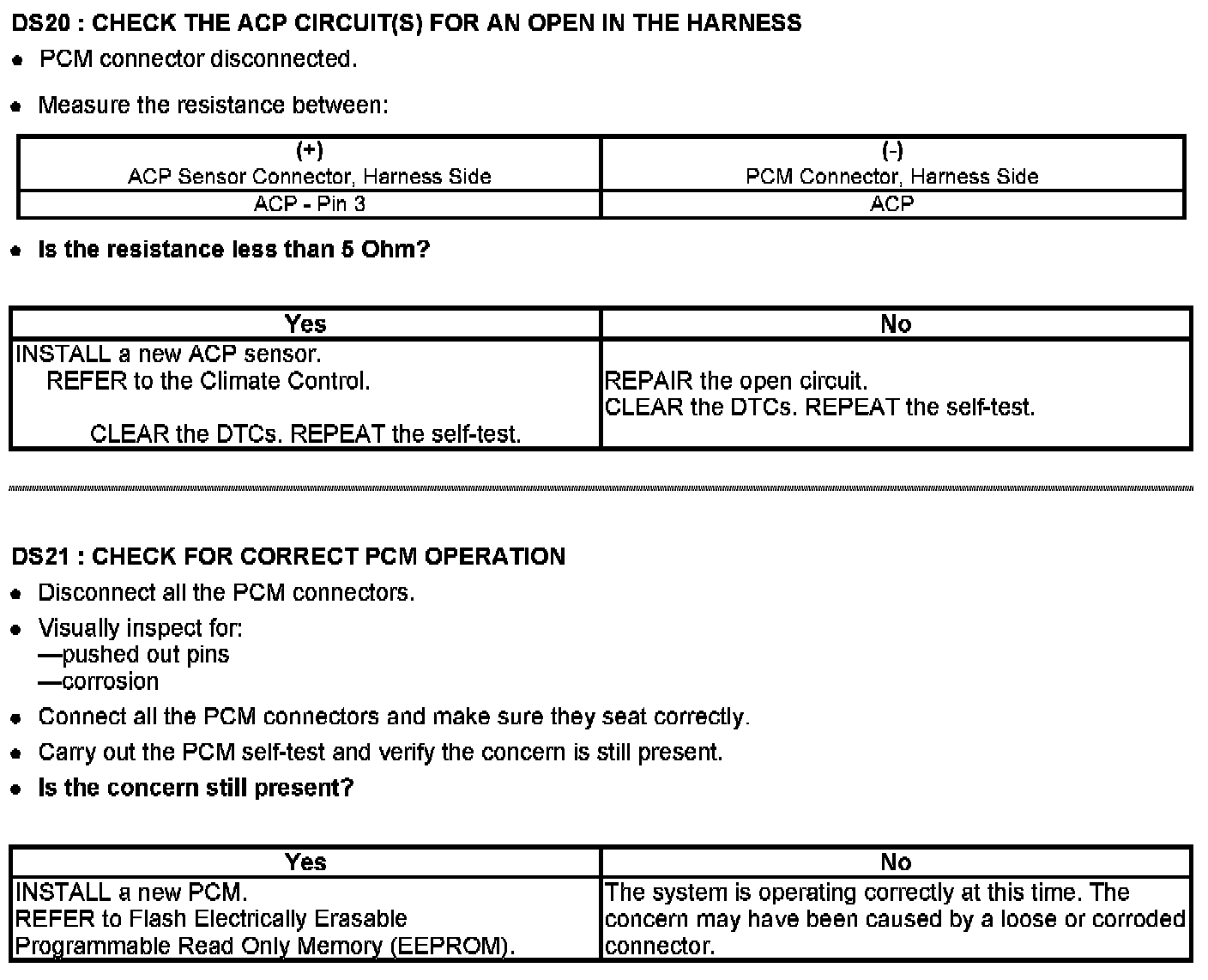

DS20 - DS21:
