Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation
All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 7 pin-type retainers and the RH splash shield.

Freestyle only
3. Remove the 3 A/C compressor pulley shield retainers and the shield.

All vehicles
4. Using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner counterclockwise and remove the accessory drive belt.

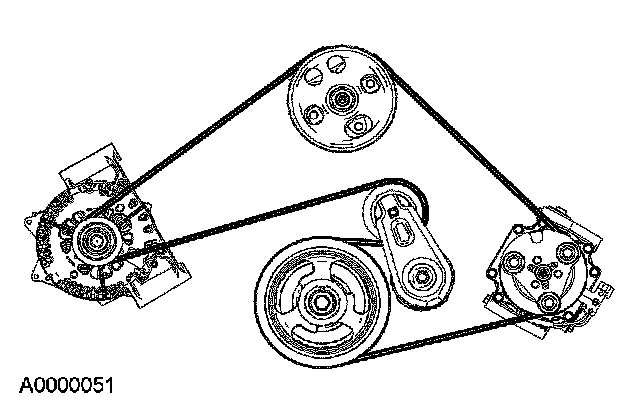

5. NOTE: Refer to the illustration for correct drive belt routing.

To install, reverse the removal procedure.
