Test D: One High Beam Headlamp Is Inoperative

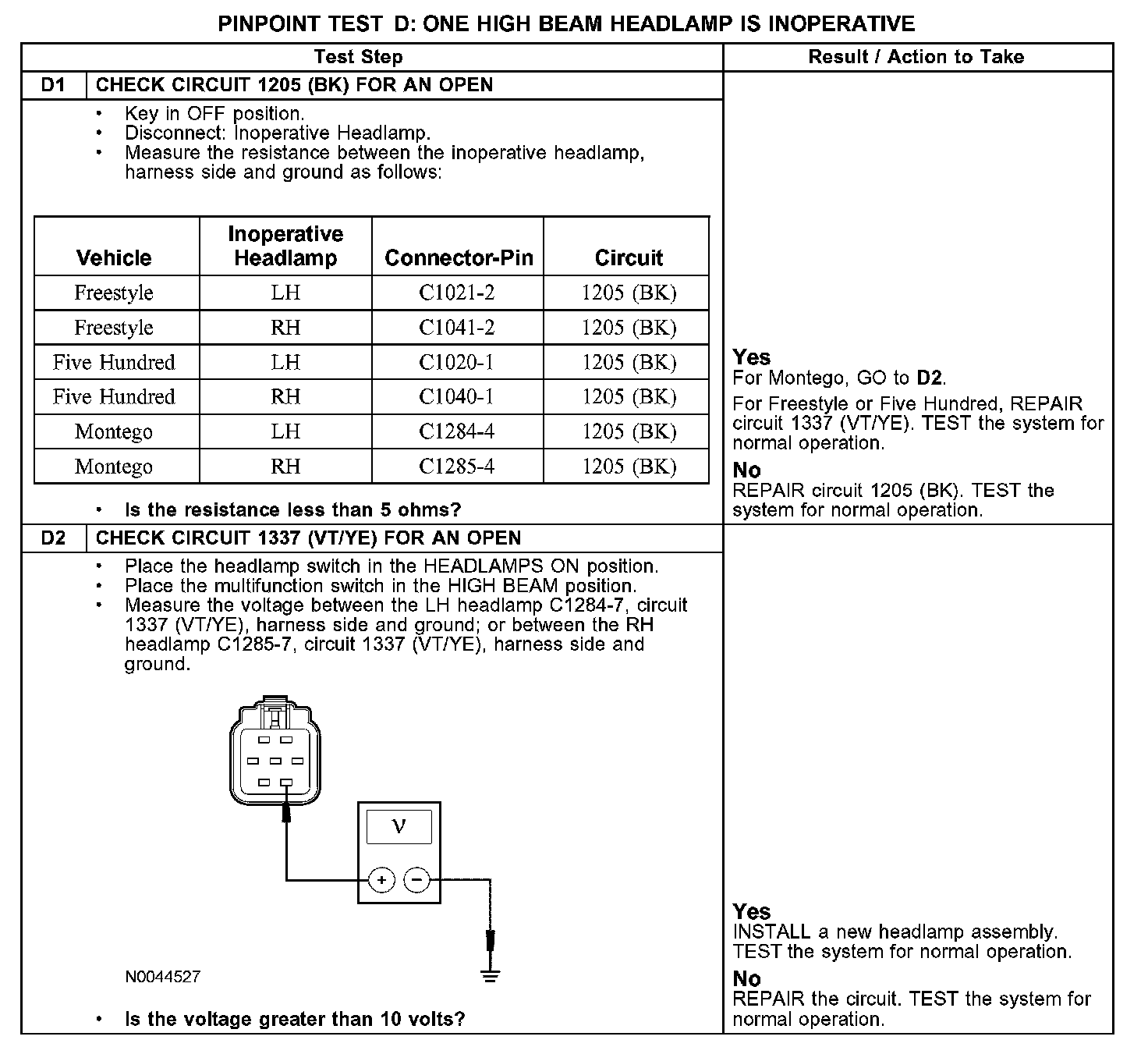

PINPOINT TEST D: ONE HIGH BEAM HEADLAMP IS INOPERATIVE

D1-D2:

Normal Operation
The high beams are provided voltage through circuit 1337 (VT/YE). Ground for the high beams is provided through circuit 1205 (BK).

Possible Causes
- Circuit 1205 (BK) open
- Circuit 1337 (VT/YE) open
- Headlamp assembly
