Test C: Any Individual Interior Lamp Or Luggage Compartment Lamp Is Inoperative

PINPOINT TEST C: ANY INDIVIDUAL INTERIOR LAMP OR LUGGAGE COMPARTMENT LAMP IS INOPERATIVE

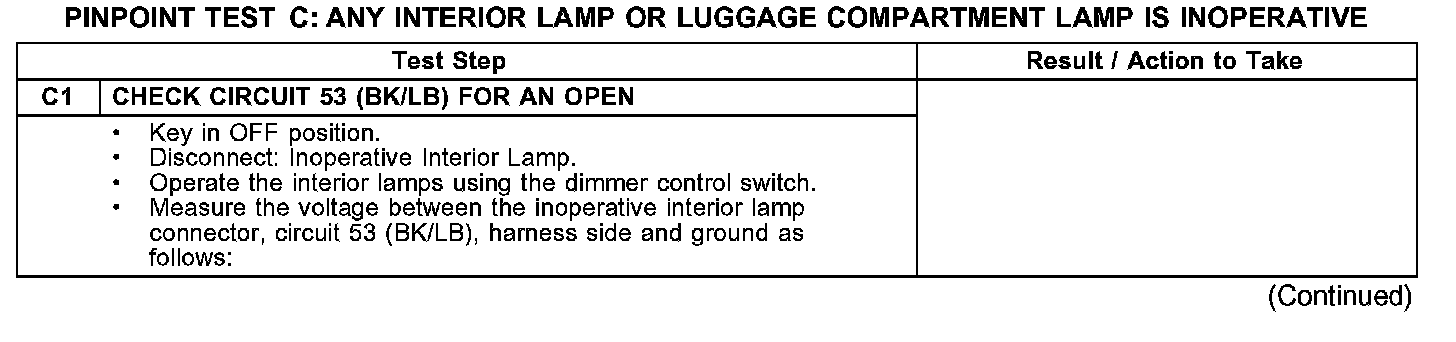

C1:

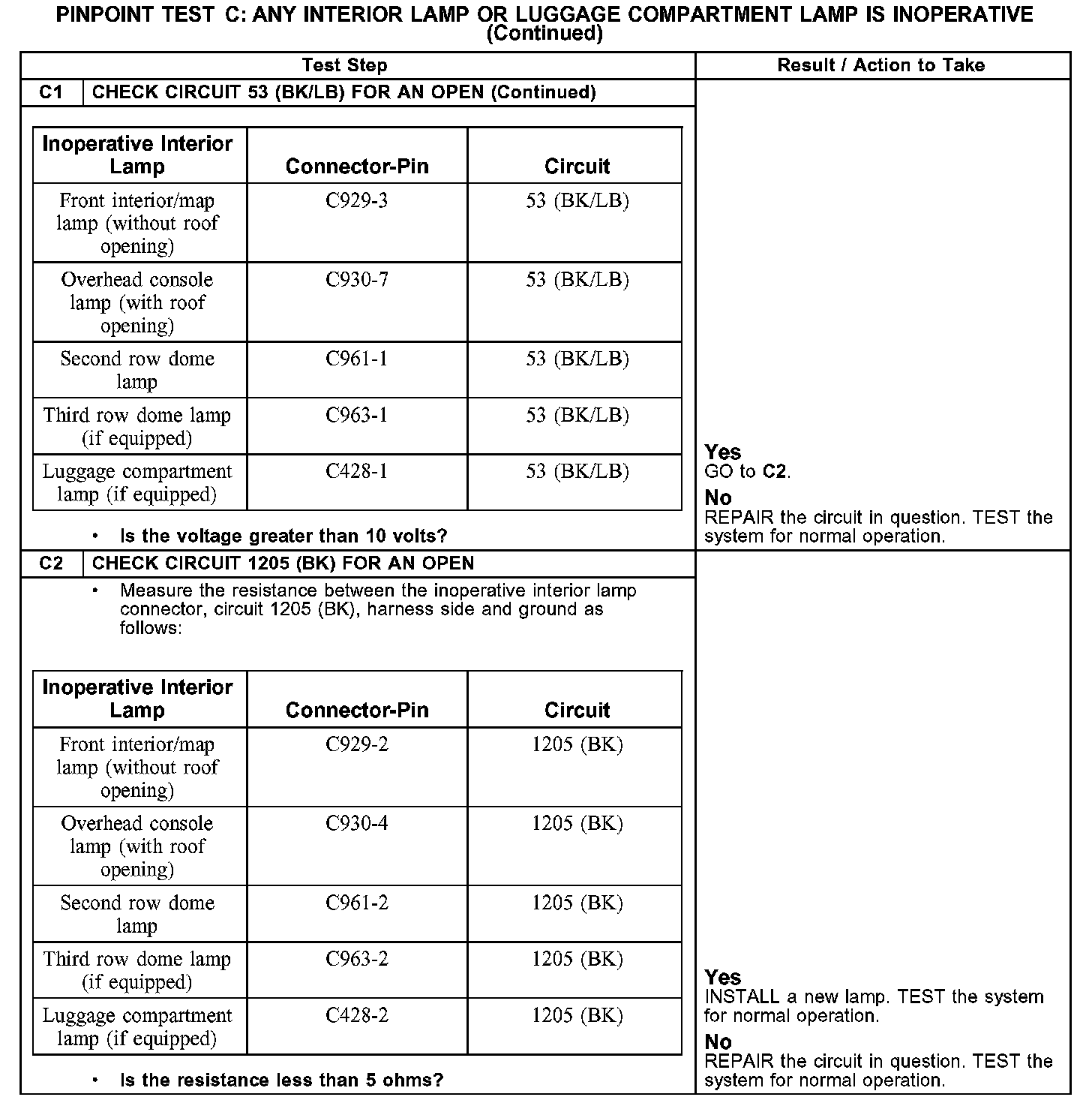

C1-C2:

Normal Operation
When any door or decklid/liftgate is ajar, the smart junction box (SJB) provides voltage to the individual interior lamps through circuit 53 (BK/LB). Ground for the lamps is provided through circuit 1205 (BK).

Possible Causes
- Circuit 53 (BK/LB) open
- Circuit 1205 (BK) open
- Lamp
- SJB
