Mercury
>>
2006
>>
Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Diagrams
>>
Connector Views
>>

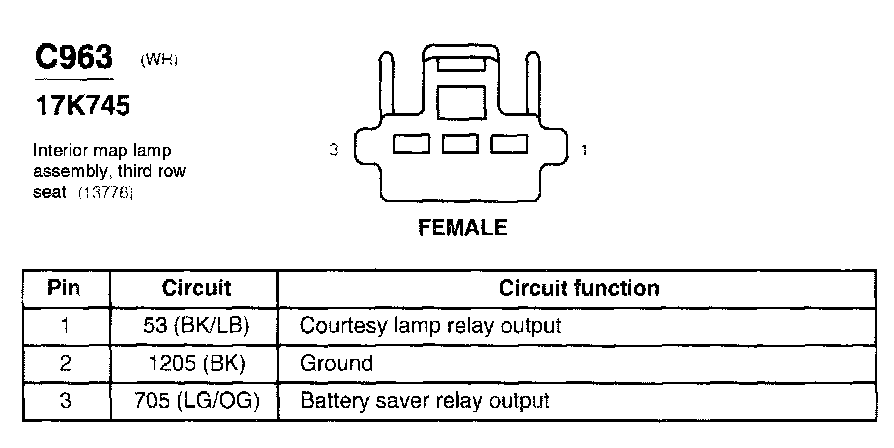

Interior/Map Lamp Assembly, Third Row Seat
Interior/Map Lamp Assembly, Third Row Seat
C963:
