Test N: The RH Turn Signal Indicator Is Never/Always On

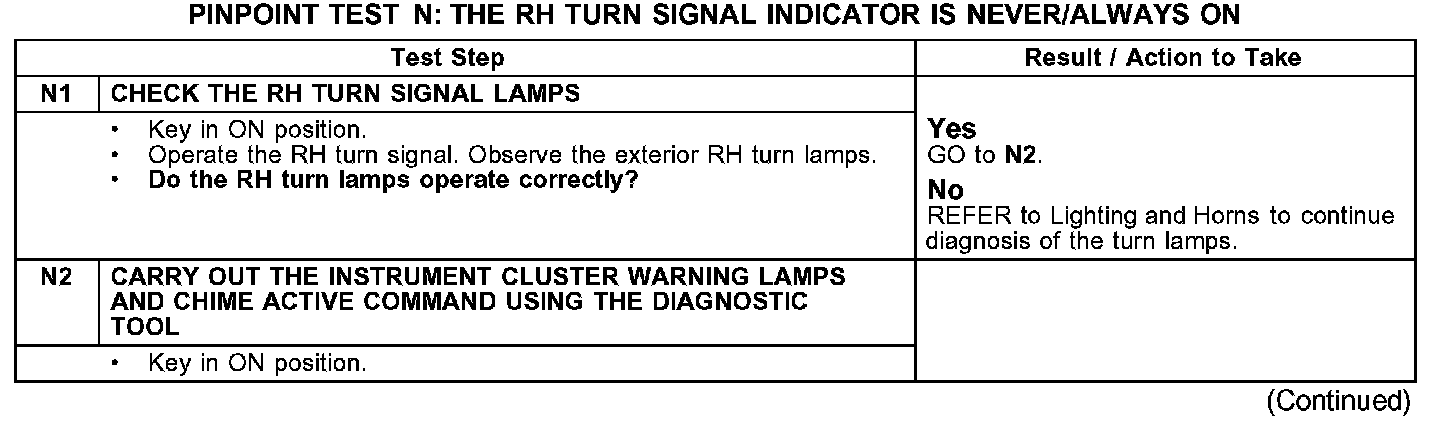

PINPOINT TEST N: THE RH TURN SIGNAL INDICATOR IS NEVER/ALWAYS ON

N1-N2:

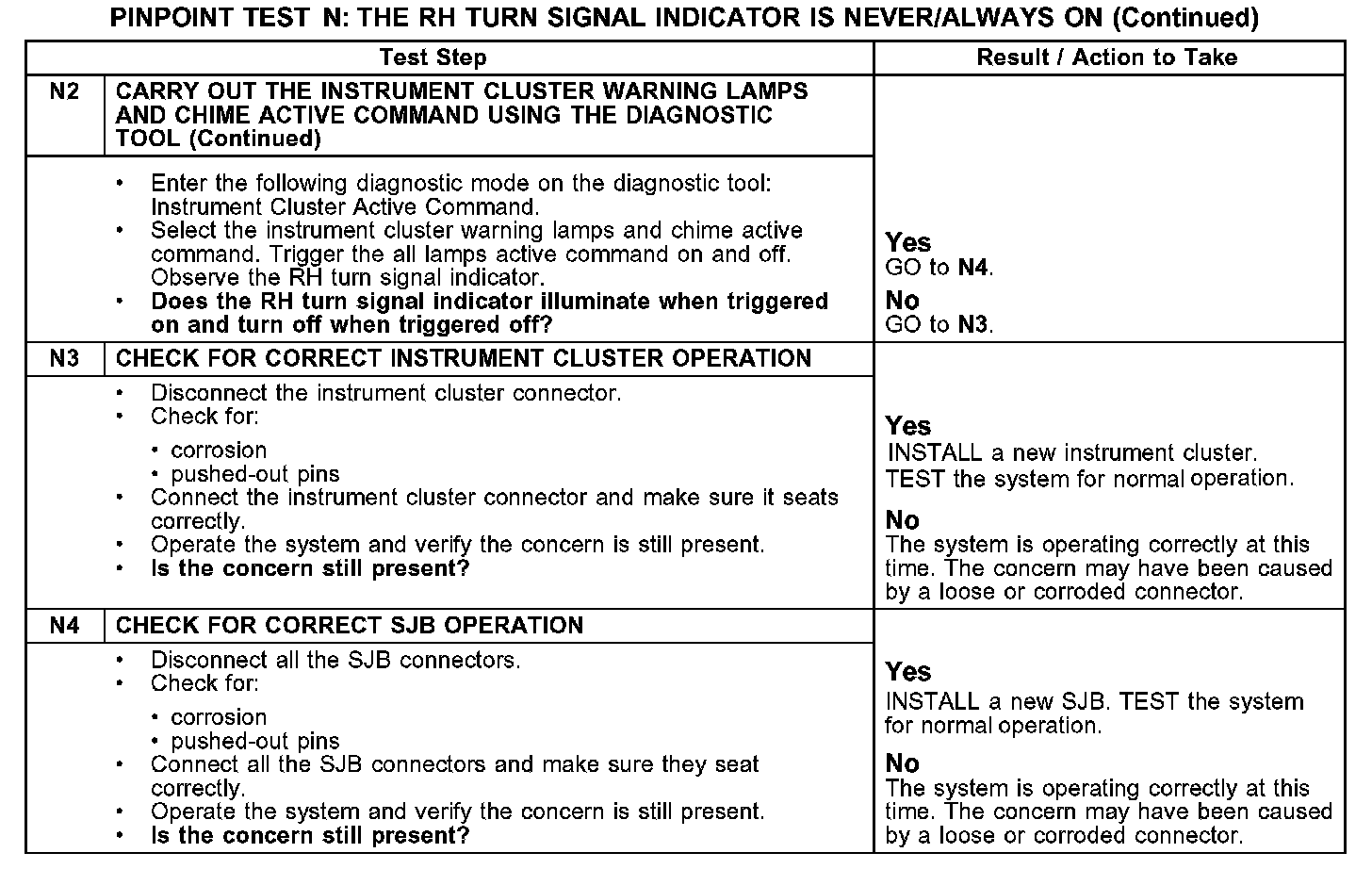

N2-N4:

Normal Operation
When the multifunction switch is in the RH turn signal position, a message is sent to the instrument cluster from the smart junction box (SJB) through the communication network, and the RH turn indicator flashes on and off.

Possible Causes
- SJB
- instrument cluster
