Test F: The Tachometer Is Inoperative

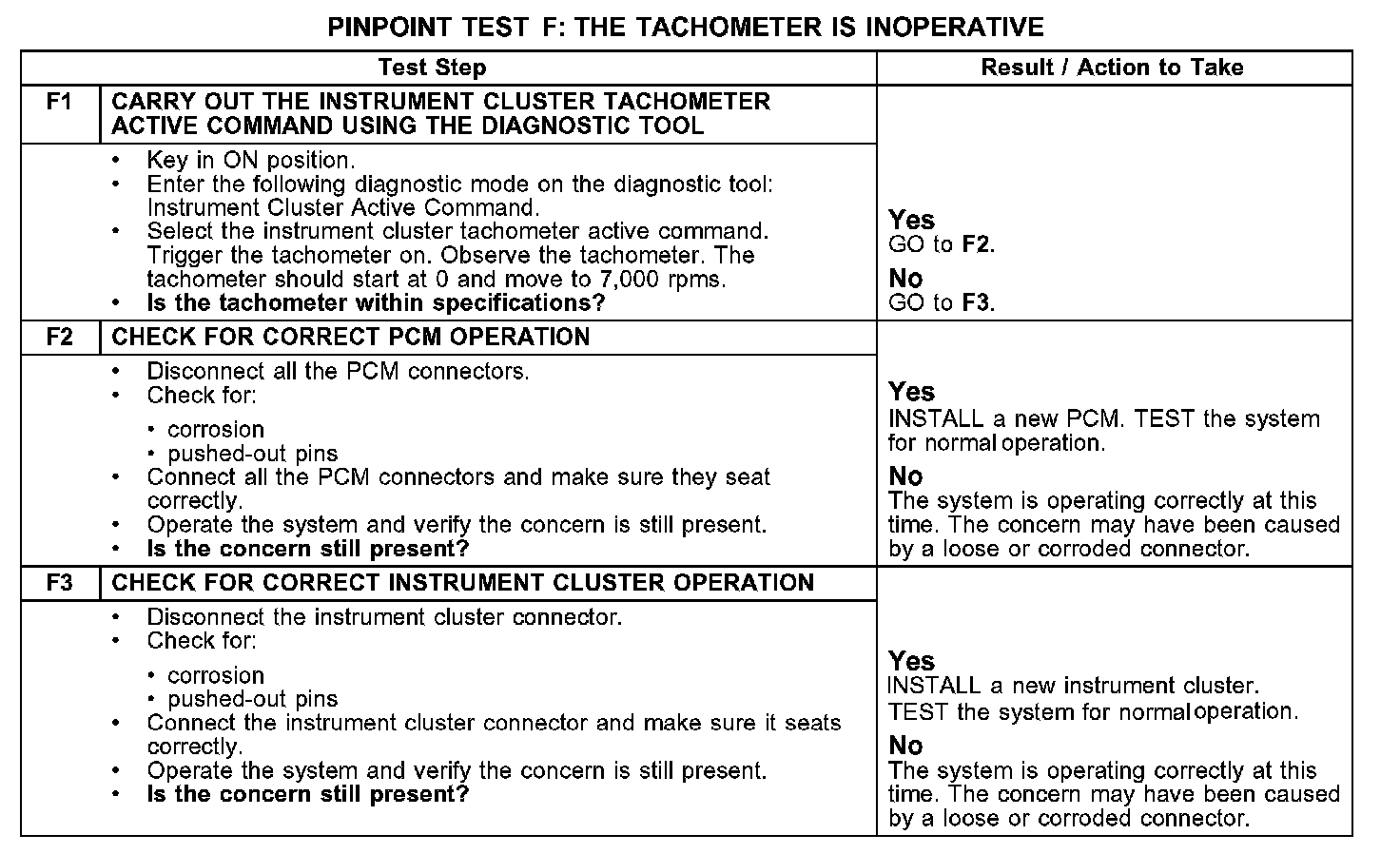

PINPOINT TEST F: THE TACHOMETER IS INOPERATIVE


F1-F3:






Normal Operation
Engine rpm data is provided to the instrument cluster by the powertrain control module (PCM) through the communication network.

Possible Causes
- PCM
- instrument cluster
