Test G: The EATC System Is Inoperative, Intermittent Or Incorrect Operation

PINPOINT TEST G: THE EATC SYSTEM IS INOPERATIVE, INTERMITTENT OR INCORRECT OPERATION

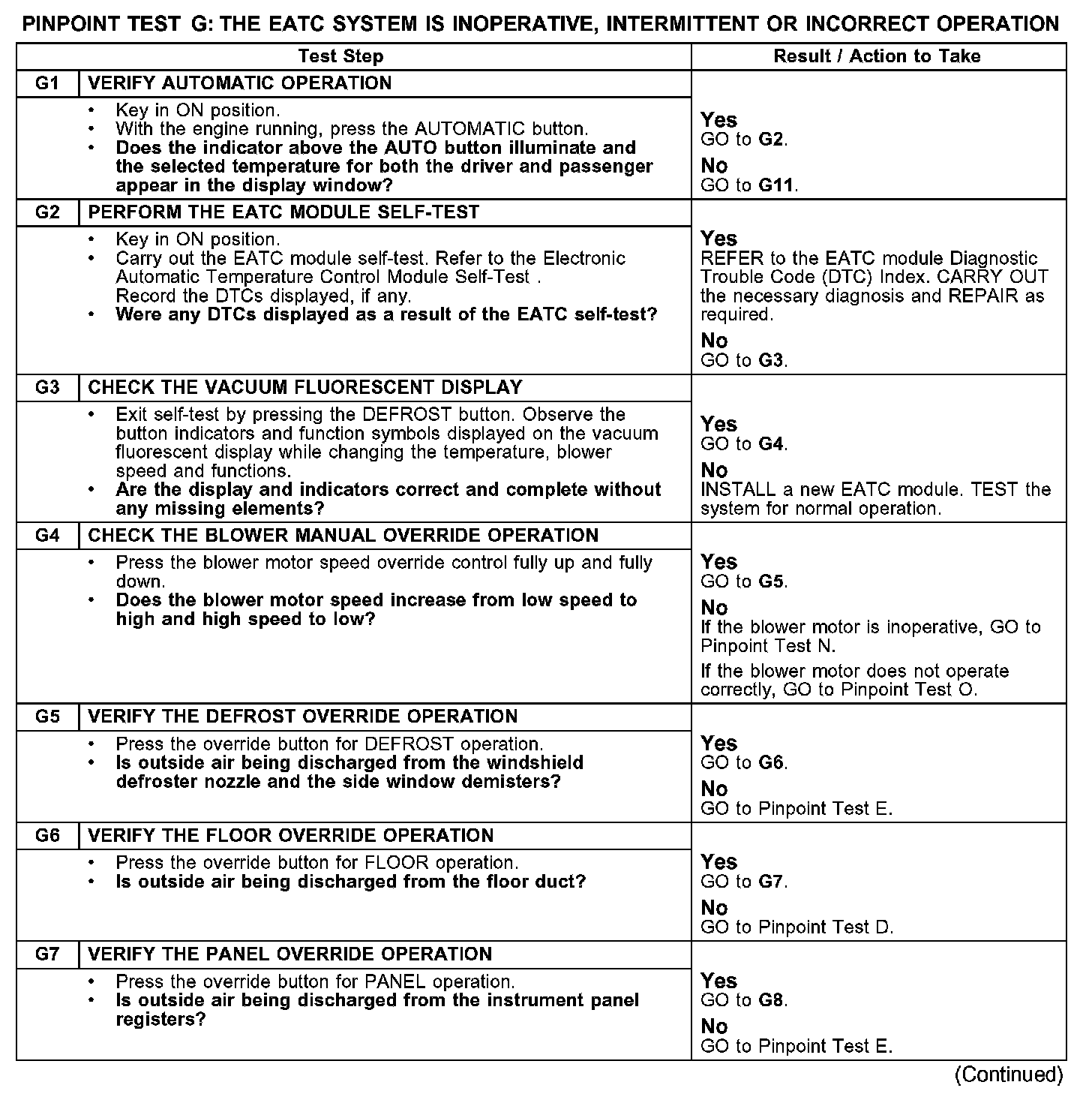

G1-G7:

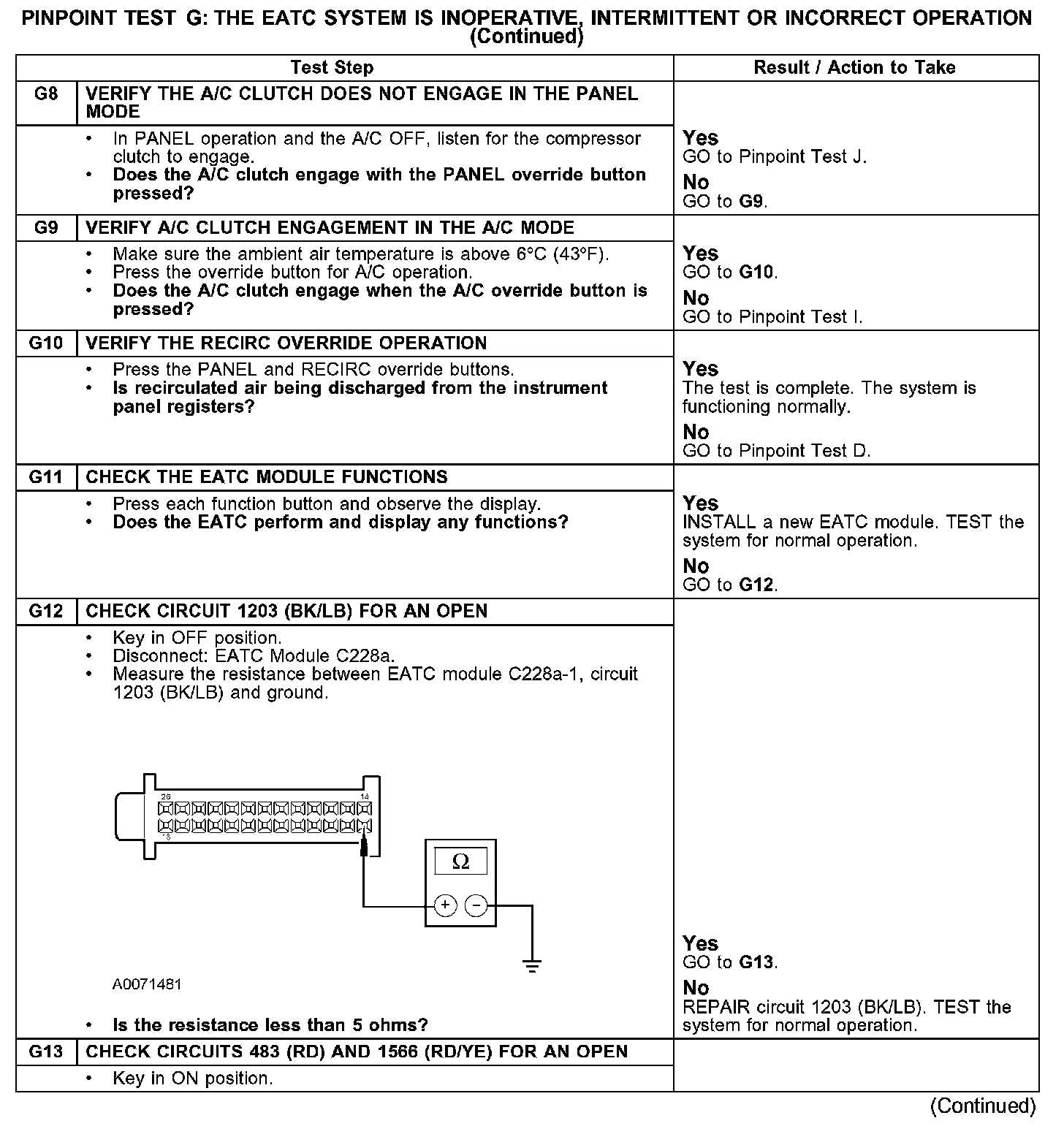

G8-G13:

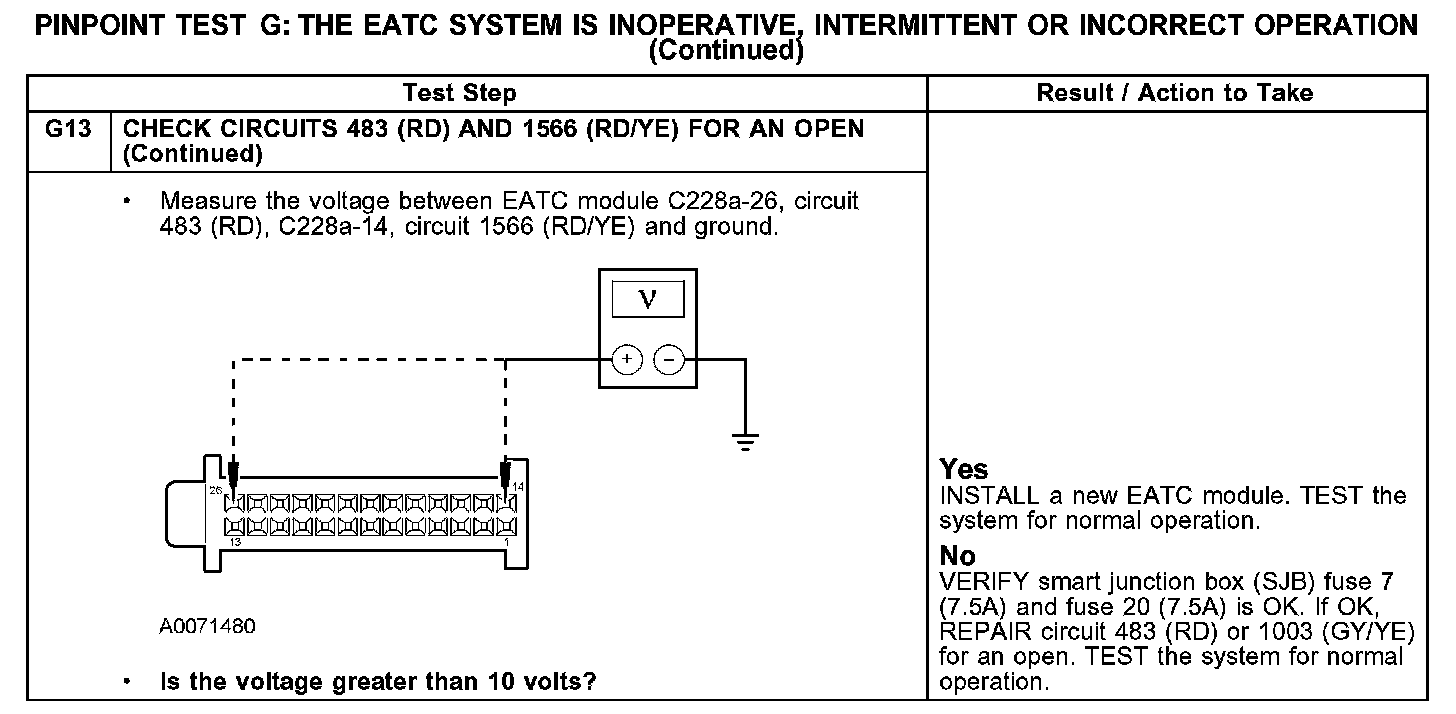

G13 Continued:

Normal Operation
Under normal operation, the EATC module receives a ground through circuit 1203 (BK/LB). The EATC module is supplied constant battery voltage through circuit 483 (RD) and ignition switched voltage through circuit 1566 (RD/YE).

NOTE: For a complete explanation of the EATC system functions, REFER to Description and Operation.

Possible Causes
- Fuse(s)
- An open in circuit 1203 (BK/LB), 483 (RD) or 1566 (RD/YE)
- EATC module
